PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 670 × 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	130 kg
Net weight	16 kg
Static seat verification load	820 kg
Backrest verification load	136 kg
Gas-lift cycles	100,000 height-adjustment cycles
Caster rolling durability	100,000 cycles
Base static-load target	1134 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound	40%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Beige padded upholstery with smooth surface and tailored horizontal seam; material grade requires supplier BOM confirmation.
Back upholstery	Beige upholstered back panel with contoured lumbar section and visible horizontal seam line.
Seat cushion	90 mm thick foam target over a load-bearing seat pan, with density specified at 45 kg/m3.
Back cushion	Integrated padded back insert over a rigid internal shell, with 35 kg/m3 foam target.
Internal seat shell	12 mm moulded plywood or reinforced polymer seat pan target; image shows support outline only.
Back internal frame	Rigid tubular-steel or reinforced-polymer back frame target, concealed beneath upholstery.
Armrest pads	Beige upholstered fixed loop arms with padded contact surfaces and matching finish.
Arm supports	Angled support structure with visible metallic or metallic-finished side frame and concealed fasteners.
Gas lift	50 mm chrome-plated telescoping steel gas-lift column at the center of the seat mechanism.
Five-star base	Polished aluminum-alloy or chrome-plated steel five-star base with five radiating legs.
Casters	Five black twin-wheel hard-floor casters with swivel stems and brake-free design.
Mechanism	Black metal tilt mechanism beneath the seat, including lift lever and tension-control knob.

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lift provides 520 mm seat height, represented by the 520 mm maximum endpoint.
360-degree swivel	Central gas-lift bearing enables full rotation while keeping the five-star base stationary.
Tilt movement	Synchro-style mechanism target allows 15-degree back recline with coordinated seat movement.
Tilt lock	Single-position upright lock target secures the back at the working position.
Tilt tension control	Side knob adjusts backward resistance for users up to the 130 kg target weight.
Mobility	Five twin-wheel casters provide omnidirectional movement on hard floors and low-pile carpet.
Fixed arm support	Loop armrests provide continuous elbow and forearm support without width or height adjustment.
Lumbar support	Contoured mid-back geometry gives passive lumbar contact; adjustable lumbar is not visible.
Caster replacement	Stem-mounted casters allow replacement of individual 60 mm twin-wheel units.
Seat-entry clearance	Open front arm layout provides 510 mm inner width for side and front entry.
Floor protection	Black twin wheels spread contact load and reduce point pressure on smooth office floors.
Recline safety limit	15-degree maximum recline target prevents over-travel during normal office use.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private manager office	Mid-back support and polished base suit executive desks and professional visitor settings.
Open-plan workstation	Swivel and caster mobility support frequent turning and short-distance movement.
Meeting room	Fixed loop arms and neutral beige finish provide consistent seating around conference tables.
Home office	Compact 670 mm footprint suits dedicated workspaces where executive styling is required.
Reception consultation area	Upholstered appearance supports staff or visitor seating in low-to-medium-duration meetings.
Hard-floor office environment	Twin-wheel specification targets wood, tile, vinyl, and low-pile carpeted floors.
Single-user daily seating	130 kg user target and 100,000-cycle mechanism target are specified for one-shift office use.
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Office chair dimensional safety requirements are relevant for the seated task-chair configuration.
EN 1335-2 applicability	Safety requirements for office work chairs should cover structural integrity and stability.
EN 1335-3 applicability	Test methods for office work chairs are appropriate for strength, durability, and caster verification.
EN 1022 applicability	Chair stability test method may be used for forward, rearward, and lateral tipping assessment.
EN 12521 applicability	Furniture strength, durability, and safety requirements can supplement non-adjustable component evaluation.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 clause 17 applicability	Chair stability assessment is relevant to the 670 mm five-star base.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024 applicability	General technical requirements for wooden furniture may apply to concealed structural panels and workmanship.
GB/T 10357.3 applicability	Furniture mechanical test for seat and back strength is appropriate for procurement acceptance.
GB/T 10357.5 applicability	Furniture impact and durability test methods may apply to seat, back, and arm loading.
GB 17927 applicability	Upholstered furniture fire-safety requirements should be checked according to intended Chinese market use.
GB/T 39223 applicability	Furniture product quality inspection rules may support incoming batch verification.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024 applicability: General technical requirements for wooden furniture may apply to concealed structural panels and workmanship.;
2. GB/T 10357.3 applicability: Furniture mechanical test for seat and back strength is appropriate for procurement acceptance.;
3. GB/T 10357.5 applicability: Furniture impact and durability test methods may apply to seat, back, and arm loading.;
4. GB 17927 applicability: Upholstered furniture fire-safety requirements should be checked according to intended Chinese market use.;
5. GB/T 39223 applicability: Furniture product quality inspection rules may support incoming batch verification.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MB-PA-051-CR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MB-PA-051-CR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MB-PA-051-CROpen Export Tool

Quick Actions

Post an RFQ

Product Description

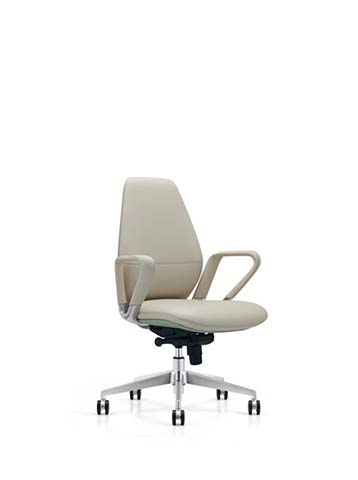

The Mid-Back Upholstered Swivel Executive Chair offers a professional seating solution with a structured, tailored appearance. Its beige padded seat and back are finished with a smooth upholstery surface and visible horizontal seam lines, creating a neat executive look suited to both traditional and contemporary interiors. The contoured back panel includes a defined lumbar support zone, while fixed loop armrests provide continuous elbow and forearm support with matching beige pads and angled metallic-finished side supports. A polished five-star metal base, chrome-plated central gas-lift column, and twin-wheel casters complete the chair’s visual balance of comfort and office functionality. Overall dimensions are 670 x 670 x 1080 mm, with 540 mm of clear width between the armrests. Construction combines padded comfort with a supportive internal structure. The seat uses a 90 mm thick foam cushion over a load-bearing seat pan, with a specified foam density of 45 kg/m3. The back incorporates a padded insert over a rigid internal shell, using 35 kg/m3 foam, and includes a 240 mm high lumbar support zone. The target internal seat pan is moulded plywood or reinforced polymer, while the back frame is tubular steel or reinforced polymer and concealed beneath upholstery. The 50 mm chrome-plated telescoping steel gas lift provides height adjustment and supports 360-degree swivel rotation. Material grade details for the beige upholstery should be confirmed through the supplier bill of materials before purchase. Functional features are designed for daily desk work and meetings. Pneumatic adjustment provides a 520 mm seat height at the stated maximum endpoint. A synchro-style tilt mechanism enables 15-degree back recline with coordinated seat movement, a single-position upright lock secures the working posture, and a side knob adjusts tilt resistance. The chair is intended for users up to 130 kg. Five twin-wheel casters allow omnidirectional movement on hard floors and low-pile carpet, while the fixed loop arms maintain a consistent, formal profile. This model fits private manager offices, open-plan workstations, meeting rooms, reception or consultation areas, and home offices where executive styling is required. Its compact footprint and neutral finish coordinate with wood, tile, vinyl, and low-pile carpeted office environments. Procurement teams should note that one set ships in two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes per set. Verification figures include a static seat load of 820 kg, backrest load of 136 kg, base static-load target of 1134 kg, and 100,000-cycle ratings for gas-lift height adjustment and caster rolling durability. Confirm final upholstery specification, assembly hardware, and finish samples when ordering for commercial projects.

Mid-Back Upholstered Swivel Executive Chair Specifications
