PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	760 × 820 × 1050 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	160 kg
Net weight	24 kg
Seat loading area	0.30 m2
Recommended occupant height range	1900 mm
Swivel durability target	50,000 cycles
Glide vertical static-load target per foot	40 kg
Floor contact points	4 glides
Colorway count	1 visible two-tone colorway
Suggested warranty	36 months
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Dark brown leather-look upholstered surface with visible seam panels
Backrest upholstery	Dark brown padded upholstery with formed lumbar and shoulder zones
Arm pads	Integrated dark brown upholstered padding wrapped over curved arm supports
Outer side shells	Dark grey molded side panels with smooth hard-surface finish
Seat cushion core	High-resilience polyurethane foam, 110 mm target thickness
Back cushion core	Molded polyurethane foam, 80 mm target thickness
Internal support board	12 mm molded plywood or engineered composite seat pan
Center column	Polished chrome-plated steel telescoping tube, 50 mm target diameter
Swivel mechanism	Enclosed steel swivel unit under the seat with return-free 360-degree bearing
Four-prong base	Polished chrome-plated steel or aluminum cantilever base
Floor glides	45 mm circular non-caster polymer or metal-capped glides
Stitching	Dark thread sewn panel seams with 8 mm target stitch pitch

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	Central pedestal bearing enables full 360-degree rotation with no visible swivel lock
Fixed seating height	450 mm fixed seat height with no visible height lever or gas-lift actuator
Stationary glide base	Four polished prongs terminate in non-rolling circular glides for stable visitor seating
Contoured lumbar support	Segmented back padding forms a lower-back curve and separate upper back panel
Integrated arm support	Curved padded arms connect into the back and seat side to support forearms at 210 mm above seat
Relaxed posture angle	Back angle target of 105 degrees from seat plane for meeting or lounge use
Floor protection	Four 45 mm glides spread load and reduce marking on hard floors
No tilt-lock control	No exposed tilt lever or multi-position mechanism is visible, so procurement should specify fixed-back validation
Non-nesting construction	Fixed four-prong base and upholstered arms prevent chair nesting or stacking
Quiet-room suitability	Stationary glides and no casters reduce rolling noise in executive meeting areas
Back recline angle from seat plane	105 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive visitor office	Suitable for guest seating beside desks or in management meetings due to its formal upholstered appearance
Meeting and conference room	Use around low conference tables where swivel access is useful but rolling mobility is not required
Executive lounge area	Appropriate for short-to-medium duration relaxed discussions with padded arms and lumbar contour
Hotel business center	Fits premium reception or business-lounge settings with hard-floor glide protection
Private study	Serves as a non-task visitor or video-call chair for users between 1600 and 1900 mm tall
Hard-floor installation	Recommended for wood, tile, marble, or sealed concrete floors using four stationary glides
Quiet reception setting	Preferred where caster noise should be minimized, such as consultation rooms and quiet lobbies
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ELC-SW4-GL-BRN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ELC-SW4-GL-BRN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ELC-SW4-GL-BRNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

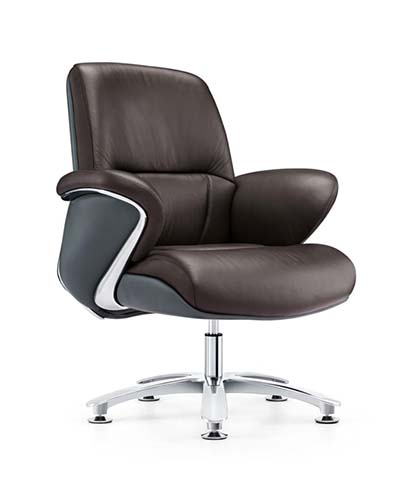

The Executive Lounge Swivel Chair with Fixed Glides, model ELC-SW4-GL-BRN, presents a formal lounge silhouette defined by dark brown leather-look upholstery, dark grey molded side shells, and a polished pedestal base. Its padded seat and back use visible seam panels to create a tailored appearance, while the backrest is shaped with a lower lumbar curve and a separate upper-back zone. Curved arm supports flow into the seat and back structure, with integrated dark brown padding for forearm support. The four-prong polished metal base and chrome-plated steel center column give the chair a refined executive profile. Overall dimensions are 760 by 820 by 1050 millimeters, with a fixed seat height of 450 millimeters and 540 millimeters of clear width between the armrests. Construction combines comfort and structure through a high-resilience polyurethane seat cushion core, a molded polyurethane back cushion core, and a molded plywood or engineered composite seat pan. The finished seat cushion is 90 millimeters thick, the backrest padding is 70 millimeters thick, and the lumbar support zone is 240 millimeters high. An enclosed steel swivel unit beneath the seat provides return-free 360-degree rotation, with no visible swivel lock. Unlike mobile task seating, this model uses stationary circular glides on all four base prongs. The glides support stable visitor positioning and reduce marking on hard flooring, making the chair suited to wood, tile, marble, or sealed concrete installations. Functionally, the chair is oriented toward relaxed meeting and lounge use rather than adjustable task work. Its fixed seating height removes visible height controls, while the swivel mechanism allows easy turn-to-access movement. The contoured back has a target posture angle of 105 degrees from the seat plane, and padded arms sit 210 millimeters above the seat. The recommended user weight capacity is 160 kilograms, and the chair is recommended for users up to 1900 millimeters tall. Its design targets a swivel durability rating of 50,000 cycles and a vertical static-load target of 40 kilograms per glide foot. The chair is appropriate for executive visitor offices, management meeting spaces, conference rooms with low tables, premium hotel business centers, reception lounges, and private studies. It works especially well where swivel access is beneficial but casters are unnecessary or unsuitable. Procurement teams should note that one set ships in two cartons, with reference assembly time of 40 minutes. The reference packaged gross weight is 23 kilograms per set, reference carton volume is 0.26 cubic meters, and a 20-foot general-purpose container can accommodate 135 sets at 85 percent space utilization.

Executive Lounge Swivel Chair with Fixed Glides Specifications
