PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 680 × 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	17.5 kg
Recommended user weight capacity	150 kg
Recommended user height range	160 to 185 cm
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound value	40%
Gas-lift performance class	Class 4, 100 mm stroke, 50 mm outer diameter
Tilt mechanism static load target	200 kg
Caster rolling durability	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Beige leather-look upholstery with horizontal seam, padded over foam
Backrest upholstery	Beige upholstered face on a tall one-piece padded panel
Side and arm shell	Dark gray molded polymer structural shell wrapping around arm and lower back
Armrest contact surfaces	Beige padded upholstery over molded arm structure
Seat cushion	High-resilience polyurethane foam, 80 mm thick target, under upholstered cover
Back padding	Molded polyurethane foam layer, 55 mm thick target, bonded to rigid shell
Internal seat support	12 mm bent plywood or steel-reinforced composite seat board target
Back support frame	Rigid polymer or steel-reinforced inner shell connected to mechanism
Tilt mechanism	Black powder-coated steel multi-position mechanism with paddle levers
Gas lift	Chrome-plated steel telescopic lift with black actuator cover
Five-star base	Polished aluminum or chrome-plated steel five-star base
Casters	Black nylon twin-wheel casters with steel mounting stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel function	360-degree swivel around the gas-lift center for desk-to-side access
Seat height adjustment	Pneumatic lift with 100 mm travel, operated by the right under-seat lever
Back tilt movement	Synchro-style recline with 15-degree maximum back tilt from upright working position
Tilt lock control	Multi-position lock controlled by the left under-seat paddle, including upright lock
Tilt tension adjustment	Knob-controlled tension regulation for user weight between 50 and 150 kg
Mobility	Five 60 mm twin-wheel casters provide omnidirectional movement on hard floors and low-pile carpet
Integrated arm support	Fixed curved armrests provide continuous elbow and forearm support without width or height adjustment
Posture support	Tall mid-back with lumbar-level horizontal seam supports thoracic and lower-back contact
Floor protection	Soft black wheel tread with 25 mm twin-wheel width target reduces point loading
Single-user occupancy	Designed for one seated user during normal office tasks
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	20.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Use behind a 1600 to 2000 mm executive desk where beige upholstery and polished base suit a refined private office
Manager workstation	Suitable for daily computer, meeting, and review tasks by users weighing up to 150 kg
Meeting or conference room	Appropriate at conference tables with 720 to 750 mm work height and carpet or hard-floor surfaces
Home office	Suitable for a dedicated home workstation requiring executive styling and compact 700 mm-class footprint
Reception or counseling room	Use in consultation settings where a supportive mid-back and soft arm contact are needed for up to 8 hours of intermittent use
Contract procurement package	Pair with BIFMA/EN test reports, material flame and abrasion certificates, and gas-lift traceability before bulk order
Floor compatibility	Recommended for timber, tile, laminate, vinyl, and low-pile carpet with soft-tread twin casters
Color and quantity planning	One visible beige colorway; production order should lock one upholstery color code and one shell finish code

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use for office-chair dimensional suitability and seated-workspace coordination
EN 1335-2 applicability	Specify safety, stability, and structural-performance requirements for the finished chair
EN 1335-3 applicability	Applicable standards and test results require confirmation
EN 1022 applicability	Use seating stability test methods for forward, rearward, and lateral overturning checks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chair standard applicability	Specify back, seat, base, arm, caster, and tilt-mechanism durability and safety tests
ANSI/BIFMA X5.11 applicability	Use large-user seating requirements only if the ordered version is rated for 159 kg or above

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357 furniture structural test applicability	Specify strength, stability, and durability test methods for the seat, back, arms, and base
GB 17927 applicability	Require upholstered-furniture safety and labeling checks if the chair uses genuine or reconstructed leather

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357 furniture structural test applicability: Specify strength, stability, and durability test methods for the seat, back, arms, and base;
2. GB 17927 applicability: Require upholstered-furniture safety and labeling checks if the chair uses genuine or reconstructed leather;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-MB-BEI-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-MB-BEI-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-MB-BEI-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

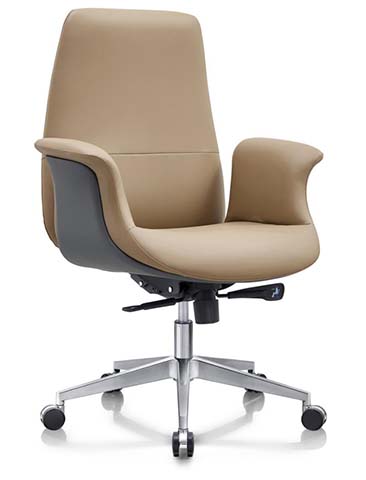

The Padded Mid-Back Executive Swivel Office Chair, model EXEC-MB-BEI-01, presents a polished executive form in beige leather-look upholstery with a tall one-piece padded backrest, horizontal seat seam, and dark gray molded polymer shell that wraps the arms and lower back. Fixed curved armrests carry matching beige padded contact surfaces, while the chrome-plated steel gas lift and five-star base create a bright visual anchor beneath the upholstered body. The chair measures 650 by 680 by 1080 mm, with a 540 mm clear width between armrests, a 90 mm finished seat cushion, 70 mm backrest padding, and a 240 mm lumbar support zone. Its compact 700 mm-class footprint suits refined private offices without appearing bulky. Construction combines comfort and structure. The seat uses 45 kg/m3 high-resilience polyurethane foam, while the back uses 35 kg/m3 molded polyurethane foam; both layers provide a 40 percent rebound value. Internal support is based on a bent plywood or steel-reinforced composite seat board, with a rigid polymer or steel-reinforced inner back shell connected to the mechanism. The black powder-coated steel multi-position tilt mechanism uses paddle levers, and the Class 4 gas lift has a 100 mm stroke and 50 mm outer diameter. The five-star base is chrome-plated steel, fitted with black nylon 60 mm twin-wheel casters. Functionality supports varied desk work. A 360-degree swivel allows desk-to-side access, the right under-seat lever controls 100 mm pneumatic height travel, and the synchro-style recline offers a 15-degree maximum back tilt. The left under-seat paddle provides multi-position tilt lock, including an upright lock, while a tension knob accommodates users from 50 to 150 kg. Fixed armrests offer continuous elbow and forearm support, and the casters enable omnidirectional movement on hard floors and low-pile carpet. The chair is intended for users from 160 to 185 cm tall and up to 150 kg. It fits executive offices with 1600 to 2000 mm desks, daily manager workstations, conference tables 720 to 750 mm high, dedicated home offices, and reception or counseling rooms requiring up to 8 hours of intermittent use. Net weight is 17.5 kg. Procurement teams should plan for one set across two cartons, 40 minutes of assembly per set, 0.26 m3 of carton volume, and a packaged gross weight of 23 kg per set. Before bulk orders, obtain BIFMA or EN test reports, material flame and abrasion certificates, and gas-lift traceability documentation.

Padded Mid-Back Executive Swivel Office Chair Specifications
