PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 680 × 1220 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	21 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound rating	40%
Upholstery abrasion resistance	50,000 Martindale cycles
Seat static-load verification	150 kg static load
Gas-lift cycles	100,000 height-adjustment cycles
Caster rolling durability	100,000 cycles
Warranty	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Gray smooth upholstered surface over foam, consistent with leather or polyurethane leather
Backrest upholstery	Gray padded upholstery with segmented horizontal and vertical stitched panels
Seat cushion	Molded polyurethane foam under gray upholstery, target thickness 100 mm
Back cushion	Polyurethane padding over a rigid load-bearing back frame, target thickness 90 mm
Internal seat shell	12 mm molded plywood or equivalent structural composite board
Back frame	20 mm tubular steel or welded steel inner frame
Armrest pads	Gray upholstered pads over shaped foam and rigid inner board
Arm supports	Polished die-cast aluminum or chrome-finished steel loop supports
Five-star base	Polished aluminum five-star base with radiating spokes
Gas lift	Chrome-plated steel telescopic gas cylinder with 50 mm outer tube
Tilt mechanism	Black powder-coated steel multi-position mechanism beneath the seat
Casters	Black nylon twin-wheel casters with steel mounting stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat over a 100 mm stroke between 460 and 520 mm
Swivel function	360-degree full rotation around the central gas-lift column
Backrest recline	Multi-position synchro tilt with 15-degree rearward travel and lockable positions
Tension adjustment	Side knob adjusts recline resistance for user weight and preference
Fixed arm support	Padded armrests provide 230 mm forearm support above the seat and do not adjust in height
Mobility	Five twin-wheel casters provide rolling movement on hard floors and low-pile carpet
Back support	Tall segmented back provides shoulder, lumbar, and mid-back contact zones
Seat occupancy	Single-user executive seating with a 150 kg recommended user capacity
Base stability	Five-star load path spreads vertical and reclining loads through polished metal spokes
Backward recline clearance	300 mm behind backrest
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for directors and managers needing high-back support during 6 to 8 hour desk work
Conference room	Appropriate at meeting tables where swivel access and a polished appearance are required
Managerial workstation	Pairs with desks 720 to 760 mm high and keyboard-based computer tasks
Private reception meeting area	Useful for formal visitor or supervisor seating with easy repositioning
Open-plan senior workpoint	Fits shared premium work neighborhoods requiring durable upholstery and mobility
Hard-floor office environment	Recommended for wood, tile, vinyl, and low-pile carpet with suitable caster tread
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-HB-GRY-AL5

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-HB-GRY-AL5

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-HB-GRY-AL5Open Export Tool

Quick Actions

Post an RFQ

Product Description

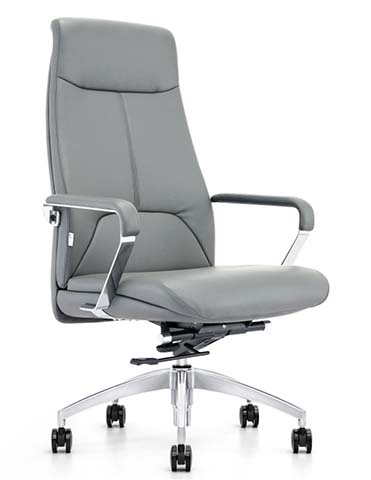

The High-Back Gray Upholstered Executive Swivel Chair is a formal executive office chair with a tall, structured silhouette and a coordinated gray finish. Its segmented backrest uses horizontal and vertical stitched panels to create distinct shoulder, mid-back, and lumbar contact zones, while the broad seat and fixed padded armrests produce a balanced, managerial appearance. From above, the polished five-star base radiates outward beneath the seat, supporting the chair with a symmetrical footprint of 670 by 680 mm and an overall height of 1220 mm. The clear width between the armrests is 540 mm, giving the seating area an open feel while retaining defined side support. Gray arm pads, polished aluminum supports, a chrome gas lift, and black casters and mechanism combine soft upholstery with exposed metallic detailing. The seating surfaces use gray smooth upholstery over foam, with a material appearance consistent with leather or polyurethane leather. The seat cushion is molded polyurethane foam with a finished thickness of 90 mm and 45 kg/m3 foam density, while the backrest padding has a finished thickness of 70 mm and 35 kg/m3 density. Foam rebound is rated at 40 percent, and the upholstery is rated for 50,000 Martindale abrasion cycles. Structure is provided by a 12 mm molded plywood or equivalent composite seat shell, a rigid load-bearing back with a 20 mm tubular or welded steel inner frame, polished die-cast aluminum or chrome-finished steel arm supports, and a polished aluminum five-star base. The black steel mechanism, chrome gas lift, and black nylon twin-wheel casters complete the construction. Functionality centers on pneumatic height adjustment across a 100 mm stroke, with seat height ranging from 460 to 520 mm. The chair rotates 360 degrees and offers multi-position synchro tilt with 15 degrees of rearward travel, lockable positions, and a side tension knob for recline resistance. The fixed armrests provide padded forearm support 230 mm above the seat but do not adjust in height. Five twin-wheel casters allow repositioning on hard floors and low-pile carpet. With a recommended user weight capacity of 150 kg and static-load verification at 150 kg, the chair suits directors and managers doing six to eight hours of desk work. It is appropriate for executive offices, conference rooms, managerial workstations, private reception meeting areas, and premium open-plan senior workpoints. For desk-based tasks, it pairs with desks 720 to 760 mm high. Procurement teams should note that one set ships in two cartons, with packaged gross weight of 23 kg, carton dimensions of 850 by 420 by 720 mm, carton volume of 0.26 cubic meter, and a reference assembly time of 40 minutes. Indicative loading is 135 sets in a 20GP container at 85 percent space utilization. The model number is EXEC-HB-GRY-AL5 and it is supplied unbranded.

High-Back Gray Upholstered Executive Swivel Chair Specifications
