PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	700 × 780 × 1250 mm
Seat cushion total thickness	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	160 kg
Net weight reference	26 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam resilience	40%
Seat static load verification	102 kg
Back static load verification	136 kg
Caster rolling durability	100000 cycles
Gas-lift cycles	100000 cycles
Tilt mechanism cycles	300000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Black leather-look surface with stitched segmented panels
Seat cushion	120 mm padded cushion over a 15 mm plywood or molded-composite seat board
Backrest	90 mm layered padding on a 1.5 mm steel tubular or plywood back frame
Armrest pads	Black padded tops with rounded edges
Arm supports	Polished rectangular metal uprights with bright side faces
Base and lift	Polished aluminum five-star base with black central gas-lift sleeve

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 520 mm maximum seat height and 100 mm target travel
Recline function	Center-tilt mechanism with 15-degree maximum back recline and lockable working positions
Swivel function	360-degree swivel around the central gas-lift and five-star base
Footrest operation	Integrated pull-out leg-rest pivots from under the seat to 420 mm extended length

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits private offices and director rooms where a high-back padded chair is used for 8 hour desk work.
Meeting or management workspace	Fits formal meeting rooms and reception work areas needing a black upholstered swivel chair with mobile caster base.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-HB-FR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-HB-FR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-HB-FR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

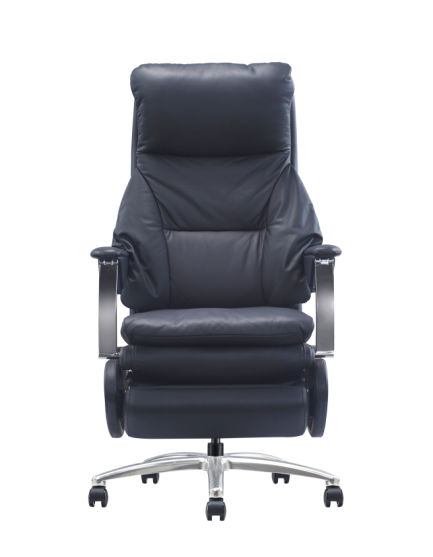

The Padded High-Back Executive Swivel Chair with Integrated Footrest is a black executive office chair designed for professional settings that value a substantial, high-back silhouette and reclined comfort. Model EXEC-HB-FR-01 is offered without a consumer-facing brand label, giving specifiers a clean, conventional option for private offices, director rooms, meeting spaces, and reception work areas. Its overall form pairs a tall upholstered back with a generously padded seat, fixed padded arms, a polished five-star base, and an integrated leg-rest concealed beneath the seat. Stitched segmented panels give the black leather-look surface a structured appearance, while bright polished metal arm supports and the aluminum base add a formal contrast to the dark upholstery. The chair’s overall dimensions are 700 x 780 x 1250 mm, with 540 mm of clear width between the armrests. Its high-back profile includes a defined lumbar support zone and layered padding intended for long desk-based work. Construction combines soft, supportive elements with a durable support structure. The seat uses a 120 mm padded cushion over a 15 mm plywood or molded-composite seat board, with a finished seat cushion thickness of 90 mm. Seat foam density is 45 kg/m3. The backrest features 90 mm of layered padding on a 1.5 mm steel tubular or plywood back frame, with 70 mm backrest padding thickness and 35 kg/m3 back foam density. Foam resilience is listed at 40 percent. Rounded black padded armrest tops sit on polished rectangular metal uprights, and the polished aluminum five-star base is fitted with twin-wheel casters and a black central gas-lift sleeve. The steel gas-lift and tilt mechanism support the chair’s core movement functions. The chair is built for everyday office adjustment as well as short periods of relaxed reclining. A pneumatic lift provides seat-height adjustment, with a 520 mm maximum seat height and 100 mm target travel. The center-tilt mechanism allows a 15-degree maximum back recline and lockable working positions, while the seat and upper assembly rotate through a full 360-degree swivel. When needed, the pull-out footrest pivots from beneath the seat to a 420 mm extended length, making it useful for users who want intermittent leg support without adding a separate ottoman. Recommended user weight capacity is 160 kg, and the product has a net weight reference of 26 kg. Static load verification is recorded at 102 kg for the seat and 136 kg for the back. It is suited to formal commercial interiors where a mobile, upholstered executive chair is required for desk work or management meetings, and it can also serve residential offices with a comparable aesthetic. Procurement teams should plan for two cartons per set, with a reference packaged gross weight of 23 kg and reference assembly time of 40 minutes per set. Reference carton dimensions are 850 x 420 x 720 mm, with carton volume of 0.26 cubic meters per set. The indicated 20GP loading figure is 135 sets at 85 percent space utilization, useful for bulk-order planning.

Padded High-Back Executive Swivel Chair with Integrated Footrest Specifications
