PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 650 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16 kg
Recommended user weight	136 kg
Seat static-load verification target	1020 N
Backrest static-load verification target	680 N rearward force
Seat foam density	45 kg/m3 molded polyurethane
Back foam density	35 kg/m3 polyurethane
Foam rebound	40%
Fabric or upholstery abrasion target	100000 Martindale rubs
Seat height adjustment stroke	100 mm
Warranty target	5 years structural, 2 years upholstery and casters

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Tan polyurethane leather-look surface over 80 mm polyurethane foam
Back upholstery	Tan padded polyurethane or leather-look facing over formed inner shell
Inner seat support	12 mm plywood or molded composite seat board bonded to a steel cradle
Back inner frame	15 mm molded polypropylene shell with 1.2 mm steel reinforcement
Arm pads	Tan padded polyurethane pads with rounded front edge
Arm supports	White finished steel or aluminum uprights and brackets
Gas lift	50 mm chrome-plated steel telescoping gas cylinder
Five-star base	Polished or white-coated die-cast aluminum five-star base
Casters	Black nylon twin-wheel casters with steel axle and brake-free swivel stem
Mechanism cover	Black steel or polymer tilt mechanism beneath the seat
Surface finish	Smooth matte tan upholstery with polished light-toned metal components
Seam construction target	8 stitches per 100 mm perimeter stitching

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	Full 360 degree rotation around the central gas-lift axis
Pneumatic height adjustment	100 mm seat-height stroke operated by the visible side lever
Tilt movement target	Synchronized or center-tilt mechanism with 12 degree maximum recline
Tilt lock target	One lock position at upright posture plus free-tilt mode
Tilt tension target	Manual tension knob calibrated for users up to 136 kg
Fixed arm support	Rigid non-folding arms with padded top surface at 230 mm above seat
Mobile caster movement	Five brake-free 60 mm twin-wheel casters for hard-floor or carpet use
Ergonomic back support	Fixed mid-height backrest providing 470 mm upper-back contact without headrest
Seat orientation	Rounded front cushion edge intended to reduce pressure behind knees
Color configuration	1 visible tan upholstery color with light-toned frame and black casters
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive conference room	Tan upholstery and light metal base suit formal meeting rooms requiring a coordinated neutral finish
Open-plan office workstation	Swivel, height adjustment, and casters support daily individual desk work
Manager office	Mid-back support and padded arms provide a compact seating option behind an executive desk
Meeting and visitor seating	Brake-free mobility and a 620 mm footprint allow chairs to be repositioned around conference tables
Hotel business center	Wipeable smooth upholstery and five-star base suit shared short-duration workspaces
Project procurement package	Standard 50 mm gas lift and 60 mm casters enable bulk replacement and maintenance across multiple floors
Hard-floor and low-pile areas	Twin nylon wheels are specified for typical office floors, with soft-wheel substitution for sensitive flooring
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MB-TAN-ALU-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MB-TAN-ALU-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MB-TAN-ALU-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

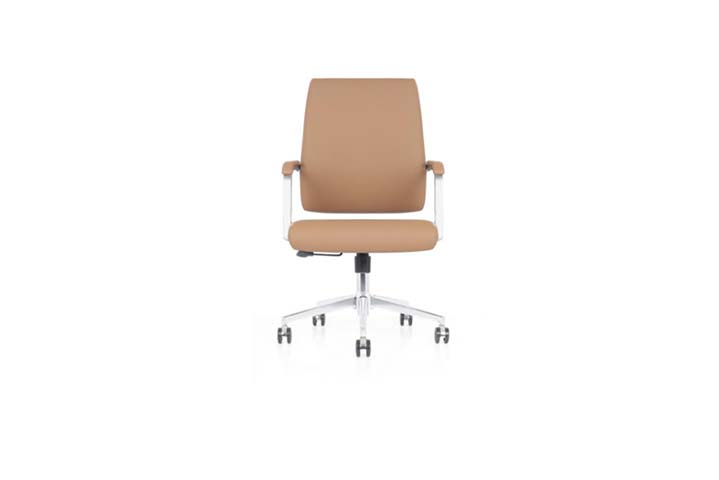

The Tan Upholstered Mid-Back Swivel Conference Chair, model MB-TAN-ALU-01, is an unbranded mid-back office conference chair with a composed, neutral appearance suited to professional interiors. Its tan polyurethane or leather-look upholstery is paired with a polished or white-coated die-cast aluminum five-star base, while the white-finished steel or aluminum arm supports contribute a light, structured visual character. The chair presents a padded seat, contoured mid-height backrest, fixed arms, and central swivel base in a compact conference-chair silhouette. Overall dimensions are 620 mm wide, 650 mm deep, and 1010 mm high, with a 540 mm clear width between the armrests. Comfort elements include a 90 mm finished seat cushion, 70 mm backrest padding, a defined 240 mm lumbar support zone, and rounded tan arm pads set 230 mm above the seat. Construction combines upholstered cushioning with a reinforced internal structure. The seat uses a tan polyurethane leather-look surface over molded polyurethane foam, supported by a plywood or molded composite seat board bonded to a steel cradle. The back uses a padded tan facing over a molded polypropylene shell with steel reinforcement. Seat foam density is 45 kg/m3, back foam density is 35 kg/m3, and foam rebound is rated at 40 percent. A chrome-plated steel telescoping gas cylinder connects the seating structure to the aluminum base, and black nylon twin-wheel casters with steel axles provide mobility without brakes. Functional features support meeting and desk use. The chair rotates a full 360 degrees around the gas-lift axis, and the visible side lever controls a 100 mm seat-height stroke. The intended tilt mechanism offers synchronized or center-tilt movement with a 12 degree maximum recline, one upright lock position, a free-tilt mode, and a manual tension knob calibrated for users up to 136 kg. The rigid, non-folding padded arms add forearm support, while five 60 mm twin-wheel casters allow repositioning on hard floors or carpet. Static-load verification targets are 1020 N for the seat and 680 N rearward force for the backrest; net weight is 16 kg. This chair is appropriate for executive conference rooms, open-plan workstations, manager offices, meeting and visitor areas, and hotel business centers. Its tan finish and light metal base coordinate with formal meeting spaces, and its swivel, height adjustment, and mobility support daily desk tasks or flexible table layouts. For procurement, the model is supplied as one set in two cartons, with packaged gross weight of 23 kg and reference assembly time of 40 minutes per set. The standard 50 mm gas lift and 60 mm casters also support bulk replacement and maintenance across multi-floor projects.

Tan Upholstered Mid-Back Swivel Conference Chair Specifications
