PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	700 × 700 × 1220 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	160 kg
Net weight	23 kg
Static seat proof load	710 kg
Backrest cyclic durability	120,000 cycles
Gas-lift service class	Class 4, 100 mm stroke, 50 mm tube
Base static load target	1130 kg
Five-star base static load target	1130 kg
Caster rolling durability	100000 cycles
Tilt mechanism fatigue rating	100000 cycles
Seat foam compression set	8 percent after 22 hours at 70 degrees C

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	1.4 mm leather-look polyurethane coated fabric over cut-and-sewn cushion panels
Back upholstery	1.2 mm matching polyurethane coated fabric over contoured padded back panels
Cushion foam	45 kg/m3 molded polyurethane seat foam with 80 mm effective padding and 40 percent rebound
Back padding	35 kg/m3 molded polyurethane back foam at 80 mm thickness with contoured lumbar zone
Internal seat support	12 mm thick bent plywood board bonded to a 25 x 25 mm welded steel tube frame
Outer shell	8 mm thick dark gray molded polypropylene structural shell surrounding seat and arm sides
Arm pads	80 mm wide padded polyurethane foam pads wrapped in matching upholstery and fixed to shell
Arm support structure	2 mm thick powder-coated steel arm brackets anchored to the mechanism seat plate
Gas lift	50 mm outer-tube Class 4 steel gas lift with polished telescopic sleeve
Tilt mechanism	3 mm thick steel synchro-tilt plate with black powder-coated finish
Five-star base	polished die-cast aluminum-alloy five-star base with 35 mm leg section
Casters	60 mm black nylon twin-wheel casters with steel roller bearings and black brake-free stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Reclined footprint depth	760 mm
Seat height adjustment	pneumatic lever raises or lowers the seat through a 100 mm stroke from 450 to 550 mm
360-degree swivel	central bearing permits full 360-degree seat rotation with 5 lock-free swivel positions per turn
Synchro-tilt recline	linked seat and back mechanism reclines to 15 degrees and moves the seat pan through 5 degrees
Tilt lock	one side lever provides 3 lock positions: upright, mid-recline, and full 15-degree recline
Tilt tension control	rear rotary knob adjusts resistance over 4 turns for users up to 160 kg
Integrated arm support	fixed padded arms provide 230 mm forearm support height and 80 mm contact width
Mobile caster movement	five 60 mm twin-wheel casters support omnidirectional movement across hard floors and low-pile carpet
Recline clearance	760 mm total rear footprint is required when the back is locked at the 15-degree position
Occupant entry clearance	700 mm caster-tip width and open front arm spacing allow side or front entry without folding parts
Floor-load distribution	five caster contact points spread a 160 kg occupant and 23 kg chair load over the base footprint
Gas-lift stroke	100 mm

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	suits a 720 to 760 mm high desk where managers require 8-hour seated support and mobile access
Meeting room	provides visitors and meeting leaders with 360-degree swivel access and a 160 kg user capacity
Private workstation	fits workstations requiring 760 mm rear clearance for the full 15-degree recline position
Conference suite	pairs with formal wood or metal executive desks where padded arms and upholstered shell present a coordinated appearance
Administrative management area	supports daily computer, phone, and document tasks with 100 mm seat-height adjustment
Hotel business center	provides durable 100000-cycle caster mobility for rotating guests on hard floors and low-pile carpet
Procurement bulk fit-out	recommended in configurations of 10 or more units with identical taupe upholstery and polished bases
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · HB-EXEC-LEATHER-5STAR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · HB-EXEC-LEATHER-5STAR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · HB-EXEC-LEATHER-5STAROpen Export Tool

Quick Actions

Post an RFQ

Product Description

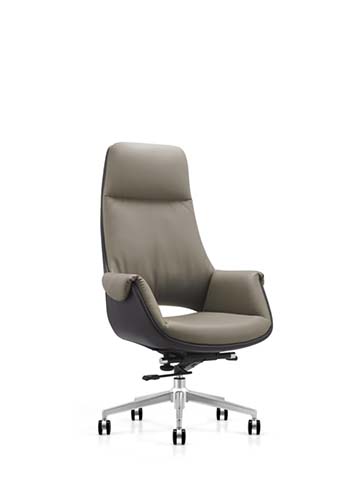

The High-Back Upholstered Executive Swivel Chair presents a formal executive profile with a tall wraparound back, contoured seat, integrated padded arms, and a polished five-star base. Its dark gray molded outer shell surrounds the seat and arm sides, while leather-look polyurethane coated fabric covers the cut-and-sewn cushion and back panels. The polished aluminum base, black nylon twin-wheel casters, and matching upholstered arm pads give the chair a coordinated appearance suited to professional interiors. Overall dimensions are 700 by 700 by 1220 millimeters, with 540 millimeters of clear width between the armrests. In a reclined position, the footprint depth is 760 millimeters. Construction combines a molded polypropylene structural shell, bent plywood seat board, welded steel tube frame, powder-coated steel arm brackets, and a Class 4 steel gas lift with a polished telescopic sleeve. The seat uses 45 kilogram per cubic meter molded polyurethane foam with 90 millimeter finished cushion thickness, while the back uses 35 kilogram per cubic meter molded foam with a 70 millimeter padded finish and a contoured lumbar support zone. The fixed arms offer padded support with 80 millimeter contact width. Functional features include pneumatic seat-height adjustment from 450 to 550 millimeters, full 360-degree swivel, and a synchro-tilt mechanism that links the seat and back through a 15-degree recline and 5-degree seat-pan movement. A side lever locks the chair in upright, mid-recline, or full-recline positions, and a rear knob controls tilt resistance. The chair is suitable for executive offices, meeting rooms, private workstations, conference suites, administrative management areas, and hotel business centers. It pairs naturally with formal wood or metal executive desks and supports computer, phone, document, meeting, and visitor use. For full recline, a private workstation should allow 760 millimeters of rear clearance; an executive desk height of 760 millimeters is noted in the application guidance. Procurement teams should plan for mobile use on hard floors and low-pile carpet, a 160 kilogram recommended user weight capacity, delivery as one set in two cartons, and a reference assembly time of 40 minutes per set. The packaged gross weight is 23 kilograms, carton volume is 0.26 cubic meters per set, and a 20-foot general-purpose container can accommodate 135 sets at 85 percent space utilization. Spare layout allowance should reflect both the upright footprint and the reclined depth.

High-Back Upholstered Executive Swivel Chair Specifications
