PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 700 × 1220 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Static base load reference	500 kg
Net weight	21 kg
Gas-lift service reference	100000 height cycles
Tilt mechanism service reference	300000 recline cycles
Caster rolling durability reference	100000 rolling cycles
Fabric/leather abrasion reference	50000 Martindale rubs
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound value	40%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Gray padded upholstery with visible horizontal seam construction
Backrest upholstery	Gray upholstered high-back panel in three padded zones
Cushion core	Molded polyurethane foam, 80 mm seat and 60 mm back reference thicknesses
Internal seat shell	12 mm molded plywood or reinforced polymer seat board
Back support frame	20 mm steel-tube or reinforced polymer inner frame
Arm pads	Black molded polymer pads with soft horizontal contact surface
Arm supports	Black painted or powder-coated steel/die-cast support brackets
Tilt mechanism	Black painted steel synchro-tilt mechanism housing
Gas lift	Chrome-plated steel telescopic cylinder with 50 mm outer diameter
Five-star base	Polished die-cast aluminum five-star base
Casters	Black nylon or polyurethane twin-wheel swivel casters, five pieces
Surface treatment	Polished metal base with black-coated frame components

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel function	360-degree full swivel around the central gas-lift axis
Height adjustment	Pneumatic seat-height adjustment over an 80 mm stroke via side lever
Recline function	Synchronized seat-and-back tilt with a 15-degree maximum back recline
Tilt lock	Multi-position recline lock controlled by the under-seat lever
Tilt tension control	Knob-adjusted recline resistance for users up to 150 kg
Arm support	Fixed T-shaped arms provide forearm support at 230 mm above the seat
Mobility	Five twin-wheel casters support movement on carpet tile and hard floors
High-back support	Tall segmented back provides thoracic, shoulder, and upper-back contact zones
Head/neck zone	Integrated upper padded zone creates 180 mm of shoulder and neck support area
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suited to managers and directors requiring high-back support during 8 hour desk work
Meeting or boardroom setting	Can be used behind conference tables for visitors or executives with mobile caster access
Private workstation	Suitable for computer-based tasks requiring height adjustment, recline, and easy rotation
Home office	Recommended for users wanting commercial-office appearance and padded support in a dedicated study
Reception management desk	Appropriate for reception staff needing mobility between phone, computer, and counter tasks
Procurement configuration	Order with carpet-safe or hard-floor casters after confirming floor finish at the installation site
Color planning	Use the single visible gray color with black components and polished metal for neutral office interiors
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office furniture dimensions	Use dimensional safety, fit, and adjustment criteria for the office work chair
EN 1335-2 office chair safety	Require structural safety, stability, and caster performance for the finished chair
EN 1335-3 office chair test methods	Use specified mechanical test methods for strength, durability, and fatigue verification
EN 1022 seating stability	Use stability test methods to evaluate forward, rearward, and sideways tipping resistance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chairs general	Use back, seat, base, arm, and caster test requirements for commercial office seating
ANSI/BIFMA X5.4 lounge seating exclusion	Do not use this standard because the product geometry is a task/executive office chair

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 furniture strength and durability	Apply seat-back strength and durability test methods for office seating procurement inspection
GB/T 28004.1 office chair safety	Use general safety requirements for swivel office chairs, including stability and structural integrity
GB/T 28004.2 office chair performance	Use mechanical performance requirements and test methods for strength, durability, and casters
GB 18584 indoor furniture limit	Specify formaldehyde emission limits for any wood-based or composite furniture components
GB/T 3324 furniture inspection	Use general furniture inspection rules for dimensions, appearance, coating, and assembly quality

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 furniture strength and durability: Apply seat-back strength and durability test methods for office seating procurement inspection;
2. GB/T 28004.1 office chair safety: Use general safety requirements for swivel office chairs, including stability and structural integrity;
3. GB/T 28004.2 office chair performance: Use mechanical performance requirements and test methods for strength, durability, and casters;
4. GB 18584 indoor furniture limit: Specify formaldehyde emission limits for any wood-based or composite furniture components;
5. GB/T 3324 furniture inspection: Use general furniture inspection rules for dimensions, appearance, coating, and assembly quality;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-HB-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-HB-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-HB-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

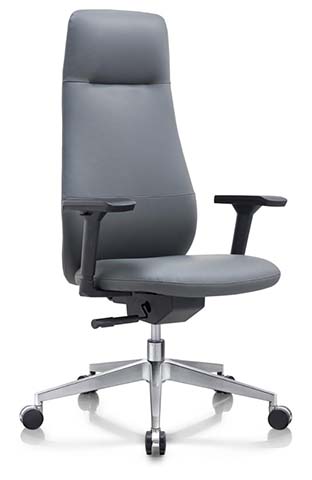

The High-Back Gray Executive Swivel Chair, model OF-HB-GRY-01, presents a professional commercial-office form with a gray padded seat and tall upholstered back. The back is divided into three padded zones, while the seat uses visible horizontal seam construction for a clean, structured appearance. Black molded polymer arm pads and black mechanism components contrast with the gray upholstery, and a polished aluminum five-star base gives the chair a refined executive profile. Twin-wheel casters complete the visual layout and support movement around the workplace. The fixed T-shaped arms provide a clear 540 mm width between armrests, with forearm support positioned 230 mm above the seat. Construction balances comfort and durability. The cushion core uses molded polyurethane foam, with a 90 mm finished seat cushion and 70 mm finished backrest padding; reference core thicknesses are 80 mm for the seat and 60 mm for the back. A 240 mm lumbar support zone is integrated into the high-back panel. Inside, the chair uses a 12 mm molded plywood or reinforced polymer seat board, together with a 20 mm steel-tube or reinforced polymer back frame. Arm supports use black painted or powder-coated steel or die-cast brackets, and the synchro-tilt mechanism is housed in black painted steel. A chrome-plated steel gas lift with a 50 mm outer diameter connects the seat to the polished aluminum base. Designed for practical daily use, the chair rotates 360 degrees around the central gas-lift axis. Pneumatic height adjustment operates through a side lever over an 80 mm stroke. The synchronized seat-and-back tilt allows a 15-degree maximum back recline, with multi-position lock control under the seat and a knob for adjusting recline resistance. The chair is recommended for users up to 150 kg. Service references include 100000 height cycles, 300000 recline cycles, 100000 caster rolling cycles, a 500 kg static base load, and upholstery abrasion rated to 50000 Martindale rubs. Overall dimensions are 680 x 700 x 1220 mm, and the chair weighs 21 kg. It suits executive offices, private computer workstations, meeting and boardroom settings, dedicated home studies, and reception management desks. Its high-back support is appropriate for managers, directors, reception staff, and home-office users seeking a commercial appearance. Procurement teams should specify carpet-safe or hard-floor casters after confirming the floor finish. Each set ships in two cartons with a packaged gross weight of 23 kg and reference carton volume of 0.26 m3. Assembly time is 40 minutes per set, and 135 sets fit a 20GP container at 85 percent space utilization.
