PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 980 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	160 kg
Net weight	20 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound rating	40%
Static base verification load	700 kg
Swivel rotation angle	360 degrees
Seat height adjustment travel	100 mm
Recommended daily occupancy	8 hours
Warranty period	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	White polyurethane leather surface over sewn cushion assembly
Back upholstery	White padded facing fitted to a tall contoured back panel
Outer shell	Camel-color rigid curved shell with continuous back and arm perimeter
Edge banding	Camel-color finished rim wrapping the seat and back perimeter
Armrest construction	Integrated upholstered arm pads formed by the continuous side shell
Seat cushion	90 mm polyurethane foam pad under white upholstery
Back cushion	60 mm polyurethane padding attached to the rigid shell
Internal seat support	12 mm bent plywood or molded composite seat carrier
Gas lift	Chrome-plated steel telescopic cylinder with black height lever
Five-star base	Polished aluminum alloy five-spoke base with five glides
Floor glides	Five black non-caster glide pads with polished retaining disks
Mechanism cover	Black steel tilt mechanism and lever housing under the seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	Central bearing allows full rotation around the vertical gas-lift axis
Pneumatic seat-height adjustment	Side lever operates a 100 mm gas-lift stroke between seating positions
Reclining support	Under-seat tilt mechanism provides a 10-degree maximum controlled back recline
Tilt tension control	Single under-seat knob adjusts resistance for users up to 160 kg
Fixed integrated armrests	Continuous side arms provide 190 mm forearm support with no width or height adjustment
Stationary glide mobility	Five low-profile glides protect flooring and allow controlled repositioning without casters
Contoured body support	Tall curved back and waterfall seat provide lumbar and thigh support in one molded shell
Single-lever operation	One visible black lever controls height or tilt lock for minimal user adjustment
Color configuration	One white upholstery finish with one camel shell finish shown
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable behind a desk or as a manager chair where a polished modern appearance is required
Meeting and boardroom use	Appropriate for conference seating around low tables or executive discussion zones
Hotel business center	Fits upscale lobbies and business lounges needing durable white seating with metallic detailing
Consultation room	Suits designer, finance, or client-advisory spaces requiring fixed-position comfort
Private study	Provides compact lounge-style seating for writing, laptop use, or reading
Floor surface recommendation	Use on wood, tile, vinyl, or low-pile carpet protected by the five glide feet
Recommended pairing	Pair with 760 mm high executive desks or 650 mm lounge tables
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · USC-SHELL-5S-GLIDE-WT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · USC-SHELL-5S-GLIDE-WT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · USC-SHELL-5S-GLIDE-WTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

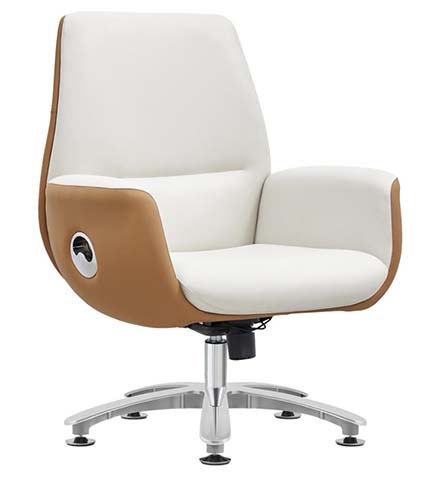

The Swivel Executive Lounge Chair with Upholstered Shell and Polished Five-Star Base presents a contemporary lounge profile within an executive seating format. Its white polyurethane leather seat and padded back are set against a camel-color rigid curved shell that wraps continuously around the back and arm perimeter. Matching camel-color edge banding defines the seat and back outline, while integrated arm pads emerge from the continuous side shell. The polished aluminum five-star base, chrome-plated gas lift, and black height lever create a refined metallic contrast. Overall dimensions are 680 by 680 by 980 millimeters, with a 540-millimeter clear width between armrests. The chair weighs 20 kilograms and is supplied unbranded under model USC-SHELL-5S-GLIDE-WT. Construction combines padded comfort with a structured carrier. The seat uses a sewn cushion assembly with 90 millimeters of 45 kg/m3 polyurethane foam beneath white upholstery. The back has a tall contoured panel with 70 millimeters of listed padding thickness and 35 kg/m3 foam, attached to the rigid shell. Foam rebound is rated at 40 percent. Internal support is provided by a 12-millimeter bent plywood or molded composite seat carrier. The fixed integrated arms provide 190 millimeters of forearm support and do not adjust in width or height. Functional details support focused work and relaxed discussion. A central bearing enables 360-degree swivel around the vertical gas-lift axis. The side lever controls pneumatic height adjustment through a 100-millimeter stroke. An under-seat tilt mechanism permits a controlled back recline of 10 degrees, and a single knob adjusts tilt resistance for users up to the recommended weight capacity of 160 kilograms. A 240-millimeter lumbar support zone, tall curved back, and waterfall seat provide contoured back, lumbar, and thigh support. Rather than casters, the five-star base uses low-profile glides that protect flooring and allow controlled repositioning. The static base verification load is 700 kilograms. The chair is suited to executive offices, manager workstations, boardrooms, meeting areas around low tables, hotel business centers, upscale lobbies and lounges, consultation rooms, finance or client-advisory settings, and private studies. Its compact lounge character makes it appropriate for writing, laptop use, reading, and executive discussion. Recommended floor surfaces include wood, tile, vinyl, and low-pile carpet protected by the five glide feet. For procurement, each set ships in two cartons with packaged gross weight of 23 kilograms and carton volume of 0.26 cubic meter. Reference carton dimensions are 850 by 420 by 720 millimeters, assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization. Buyers should note the white upholstery, fixed arms, glide-foot mobility, and polished metal finish when coordinating interiors and maintenance expectations.

Swivel Executive Lounge Chair with Upholstered Shell and Polished Five-Star Base Specifications
