PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 650 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16 kg
Recommended user weight capacity	136 kg
Static load verification target	680 kg
Gas lift rated vertical load	150 kg
Base static-load acceptance target	1134 kg
Caster rolling durability target	100000 cycles
Seat impact durability target	100000 cycles
Backrest recline force adjustment range	70Nf
Suggested seat surface durability acceptance	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Beige smooth leather-look surface over padded cushion
Back upholstery	Beige smooth upholstered panel with horizontal lumbar seam
Cushion foam	80 mm molded high-resilience polyurethane seat foam, density 45 kg/m3
Back padding	50 mm polyurethane back foam, density 35 kg/m3, rebound 35%
Upholstery thickness and wear surface	1.4 mm corrected-grain leather-look surface rated at 50000 Wyzenbeek rubs
Internal seat frame	15 mm molded plywood or steel-reinforced composite seat board
Internal back frame	1.2 mm steel reinforcing bar with 12 mm bent plywood back carrier
Arm pads	Beige upholstered pads over 20 mm foam on polished aluminum supports
Arm supports	Polished die-cast or extruded aluminum open-loop arm frames
Mechanism	Black steel multi-position tilt mechanism with 2.5 mm steel plate
Gas lift	50 mm chrome-plated Class 4 steel gas cylinder with 100 mm lift stroke
Five-star base	Polished aluminum five-star base with 2.5 mm wall section

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever adjusts seat height through a 100 mm lift stroke from 420 to 520 mm
Swivel movement	360-degree continuous swivel around the central gas-lift axis
Back recline	Synchronous tilt mechanism allows 8-degree rearward recline from upright position
Recline lock	One-position lock secures the back in the upright working posture
Tilt tension control	Rotary crank adjusts backward recline resistance up to 70 Nf
Arm support	Fixed padded armrests provide forearm support at 220 mm above the seat
Mobility	Five black twin-wheel casters provide rolling movement on carpet or hard floors
Caster brake behavior	Non-locking twin-wheel casters for free-rolling task movement
Lumbar support	Integrated horizontal lower-back cushion zone with 130 mm padded height
Seat-depth adjustment	Fixed seat depth at 470 mm with no sliding seat mechanism visible
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suited to managers and directors using a desk for 8 hour daily computer and meeting tasks
Meeting and conference room	Suitable around conference tables where swivel access and caster mobility are needed
Managerial workstation	Pairs with 1800 mm executive desks at 760 mm work height
Reception or consulting room	Neutral beige finish supports professional guest-side or advisor seating
Project and procurement fit-outs	Suitable for batches where 16 kg per chair and one-carton logistics simplify planning
Users by body size	Designed for adults requiring 510 mm seat width and 136 kg weight capacity
Floor surfaces	Use on low-pile carpet, vinyl, tile, and sealed wood with non-marking black casters
Color program	1 standard beige upholstery color with polished aluminum trim visible

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020 office furniture office chairs dimensions	Recommended dimensional and ergonomic procurement reference for seat, back, and clearance checks.
EN 1335-2:2018 office chairs safety requirements	Suggested structural safety acceptance reference including stability and strength.
EN 1335-3:2009 office chairs test methods	Suggested laboratory method for verifying strength, durability, and casters.
EN 1022:2018 seating stability determination	Recommended stability verification reference for the swivel chair with casters.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 office chairs general purpose	Recommended North American contract-furniture performance and safety acceptance reference.
ANSI/BIFMA e3-2019 furniture sustainability standard	Optional procurement reference if material emissions, social responsibility, or LEED documentation is required.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 general wooden furniture technical requirements	Applicable to dimensional accuracy, coating, and structural inspection if wooden or upholstered board components are supplied.
GB/T 10357.6-2013 furniture mechanical testing for storage and seating durability	Suggested seat, back, and arm strength/durability verification reference for contract procurement.
GB 18584-2001 indoor wooden furniture limited harmful substances	Recommended acceptance reference for formaldehyde emission from hidden wooden panel components.
GB/T 27927-2011 office chair classification and requirements	Useful office-chair structural, safety, and performance procurement reference; not a claimed certification.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017 general wooden furniture technical requirements: Applicable to dimensional accuracy, coating, and structural inspection if wooden or upholstered board components are supplied.;
2. GB/T 10357.6-2013 furniture mechanical testing for storage and seating durability: Suggested seat, back, and arm strength/durability verification reference for contract procurement.;
3. GB 18584-2001 indoor wooden furniture limited harmful substances: Recommended acceptance reference for formaldehyde emission from hidden wooden panel components.;
4. GB/T 27927-2011 office chair classification and requirements: Useful office-chair structural, safety, and performance procurement reference; not a claimed certification.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-MB-BGE-ALU-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-MB-BGE-ALU-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-MB-BGE-ALU-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

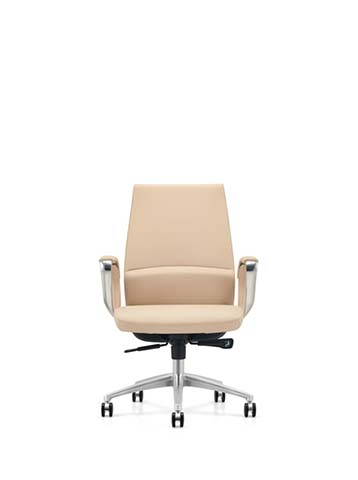

The Mid-Back Beige Leather Executive Swivel Chair presents a composed executive-office form with a neutral beige upholstered seat and back, polished aluminum arms and five-star base, black operating mechanism, chrome gas lift, and black twin-wheel casters. The mid-height back includes a smooth upholstered panel with a horizontal lumbar seam, while the open-loop polished aluminum arm frames create a refined visual contrast with the soft beige pads and structured metallic base. Its construction balances padded comfort with a supportive internal frame. The seat uses a beige smooth leather-look surface over a 90 mm finished cushion, built with 80 mm molded high-resilience polyurethane foam at 45 kg/m3 density. The back has 70 mm finished padding, using 50 mm polyurethane foam at 35 kg/m3 density and 35 percent rebound, with a 240 mm lumbar support zone. The 1.4 mm corrected-grain leather-look wear surface is rated at 50000 Wyzenbeek rubs. Internal support includes a 15 mm molded plywood or steel-reinforced composite seat board, a 1.2 mm steel reinforcing bar with a 12 mm bent plywood back carrier, and polished die-cast or extruded aluminum arm supports topped with 20 mm upholstered foam pads. Functionally, the chair provides 360-degree continuous swivel movement and pneumatic seat-height adjustment through a 100 mm stroke, from 420 to 520 mm. A synchronous tilt mechanism permits 8-degree rearward recline, a one-position lock secures the upright posture, and a rotary crank adjusts backward resistance up to 70 Nf. Fixed padded armrests offer forearm support 220 mm above the seat, with 540 mm clear width between them. Five black twin-wheel casters support movement on carpet or hard floors. The design suits managers and directors at executive desks, conference-table seating, managerial workstations, reception areas, and consulting rooms. It is intended for adults requiring a 510 mm seat width and supports a recommended user weight of 136 kg. Reference performance targets include 680 kg static load, a 150 kg gas-lift vertical load rating, 1134 kg base static-load acceptance, and 100000 cycles for both caster rolling and seat impact durability. Procurement planning should note the unbranded model EXEC-MB-BGE-ALU-01, 16 kg net weight, 23 kg packaged gross weight, 40-minute assembly time, and shipment as one set in two cartons. The reference carton dimensions are 850 by 420 by 720 mm, with 0.26 m3 carton volume and an indicative 20GP load of 135 sets at 85 percent space utilization.

Mid-Back Beige Leather Executive Swivel Chair Specifications
