PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 650 × 1120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	17 kg
Seat static-load verification target	150 kg held for 60 minutes
Backrest backward force target	136 kg applied through specified test fixture
Caster rolling durability target	100,000 cycles
Gas-lift cycle target	100,000 height-adjustment cycles
Seat cushion density	45 kg/m3 high-resilience polyurethane foam
Back cushion density	35 kg/m3 molded polyurethane foam
Foam rebound rating	40%
Recommended occupant height range	1850 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Gray smooth upholstered surface with stitched paneling
Seat cushion	Molded polyurethane foam, 90 mm thick, 45 kg/m3 target density
Backrest cushion	Molded polyurethane padding, 80 mm thick, 35 kg/m3 target density
Internal seat support	12 mm thick bent plywood or steel-reinforced molded seat shell
Back inner frame	1.5 mm thick steel or shaped plywood support panel
Armrest frame	Polished chrome-plated steel tube or die-cast aluminum support with gray top pad
Gas lift	Chrome-plated steel telescopic gas column, 50 mm outer diameter, class 4 target grade
Five-star base	Polished chrome-plated steel or aluminum five-star base, 700 mm diameter
Base leg wall thickness	2.0 mm target metal section thickness
Casters	Black nylon or PP twin-wheel casters with 50 mm wheel diameter
Mechanism cover	Black powder-coated steel tilt mechanism with polymer tension cover
Stitching and seams	Matching gray thread with 7 mm target seam pitch and segmented back panels

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	Full 360-degree horizontal rotation around the central gas column
Pneumatic seat-height adjustment	Lever-operated gas lift with 100 mm vertical stroke and 480 mm maximum seat height
Backrest tilt	Synchronized or center-tilt mechanism with 15-degree maximum recline angle
Tilt tension control	Rotary tension knob or paddle adjusts resistance for occupant weights up to 150 kg
Upright tilt lock	Single-position lock at upright working angle, released by the side lever
Fixed arm support	Rigid polished metal arms provide 230 mm elbow support height with no height or pivot adjustment
Mobility	Five black twin-wheel casters enable rolling on hard floors and low-pile carpet
Contoured back support	Segmented padded back provides shoulder, mid-back, and lumbar contact zones
Replacement caster interface	11 mm standard grip-neck stem for field replacement
Floor protection	Soft black twin-wheel tread with 360-degree swivel fork
Gas-lift stroke	100 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	720 x 650 x 380 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for private management offices where padded back support and polished metal trim match desk-level formal settings.
Open-plan workstation	Fits assigned workstations requiring swivel access, height adjustment, and mobility across carpet tiles or hard floors.
Meeting and conference room	Usable at conference tables up to 760 mm high because the seat reaches 480 mm at maximum lift.
Home office	Appropriate for daily computer work in residential studies where a gray upholstered chair complements neutral interiors.
Reception or advisory room	Provides guest-facing seating with a structured back and fixed arms for formal consultation areas.
Procurement configuration	Recommended batch purchase with replacement casters, assembly hardware count, and upholstery code specified before order release.
User profile	Designed for users 1850 mm tall and up to 150 kg under the stated engineering load target.
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-GRY-PU-MID-CHR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-GRY-PU-MID-CHR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-GRY-PU-MID-CHR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Gray Upholstered Mid-Back Swivel Executive Office Chair combines a structured professional silhouette with polished metallic detailing, making it well suited to settings that call for formal desk seating without a heavy visual profile. Its gray smooth upholstery is finished with stitched paneling, while the mid-height padded backrest, cushioned seat, and fixed arms create a neat executive appearance. The clear width between armrests is 540 mm, and the overall form is organized around a central chrome-plated gas column and five-star base. Five black nylon twin-wheel casters complete the chair's mobile, office-oriented layout. Overall dimensions are 630 by 650 by 1120 mm. The seat uses molded polyurethane foam 90 mm thick with a 45 kg/m3 target density and high-resilience characteristics. Backrest padding is specified at 70 mm in the dimension data and 80 mm in the material specification, supported internally by a 1.5 mm steel or shaped plywood panel. The seat support is a 12 mm bent plywood or steel-reinforced molded shell. Armrests feature polished chrome-plated steel tube or die-cast aluminum supports with gray top pads, while the base is a polished chrome-plated steel or aluminum five-star design with a 700 mm diameter and a 2.0 mm target metal section thickness. The chrome-plated steel telescopic gas column has a 50 mm outer diameter and a class 4 target grade. Functionally, the chair provides full 360-degree swivel movement and lever-operated pneumatic height adjustment with a 100 mm stroke and a 480 mm maximum seat height. Its synchronized or center-tilt mechanism allows a 15-degree maximum recline, with a rotary knob or paddle to regulate tilt resistance for users up to 150 kg. A single-position lock secures the backrest at the upright working angle through the side lever. The fixed arms offer a 230 mm elbow support height but do not adjust in height or pivot. The twin-wheel casters are intended for rolling on hard floors and low-pile carpet. This model fits private management offices, assigned open-plan workstations, and conference settings, including tables up to 760 mm high. It is also appropriate for home offices, studies, reception rooms, and formal advisory spaces where gray upholstery can complement neutral interiors. The recommended user weight capacity is 150 kg, net weight is 17 kg, and packaged gross weight is referenced at 23 kg per set. Delivery is configured as one set across two cartons, with a reference assembly time of 40 minutes per set and a reference carton volume of 0.26 cubic meters. Procurement teams should confirm replacement casters, the full assembly hardware count, and the upholstery code before order release, and should review the supplied carton dimensions for site receiving and storage planning.

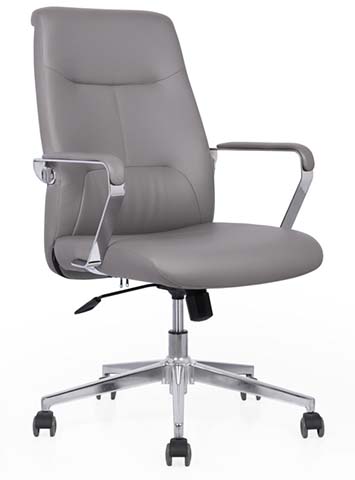

Gray Upholstered Mid-Back Swivel Executive Office Chair Specifications
