PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

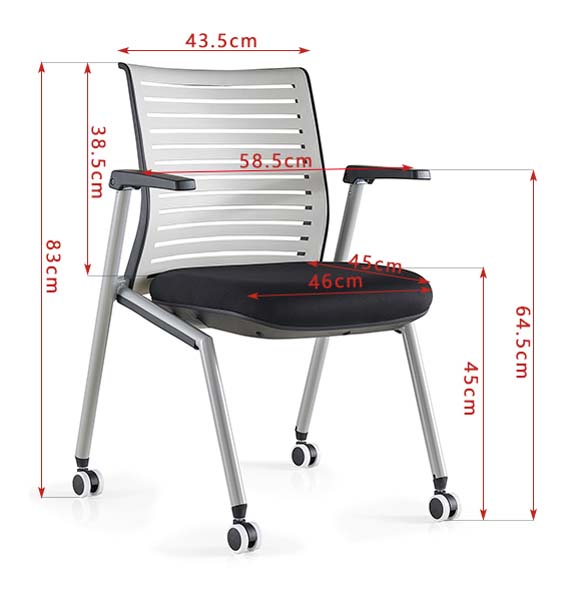

Overall dimensions (W × D × H)	585 × 460 × 830 mm
Seat width	450 mm
Seat depth	460 mm
Seat height from floor	450 mm
Backrest width	435 mm
Backrest height from seat	385 mm
Armrest height from floor	645 mm
Armrest total span	585 mm
Caster diameter	50 mm
Leg frame spread width	570 mm
Seat cushion thickness	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	12 kg
Maximum recommended static load	150 kg
Caster rolling suitability	Works on hard floors and low-pile carpet
Seat foam density	45 kg/m³
Foam rebound rate	60%
Frame tubing wall thickness	1.5 mm
Seam stitch pitch	8 stitches per inch
Upholstery abrasion resistance	30000 double rubs
Warranty period	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Leg frame	1.5mm thick powder-coated silver steel tubing
Backrest	Horizontal silver steel slats with black edge trim
Seat core	60mm thick high-density polyurethane foam padding
Seat upholstery	Black woven fabric upholstery with double stitching
Armrests	Black molded PP fixed arm pads on steel supports
Casters	50mm diameter dual-wheel non-marking nylon casters
Frame finish	Silver corrosion-resistant powder coating
Seat underside support	Molded PP seat pan with steel cross bracing
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility	Four 360-degree swivel casters for smooth rolling movement
Back ventilation	Horizontal open slats in backrest promote continuous air circulation
Arm support	Fixed-height armrests provide stable forearm support during meetings
Stacking compatibility	Can be nested vertically for compact storage
Seat position	Fixed non-adjustable seat height and angle suited for 760 mm desks
Floor protection	Dual-wheel soft casters prevent scuffs on hard commercial flooring
Orientation swivel	360-degree swivel at leg mount for easy repositioning
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate meeting rooms	Lightweight mobile design supports easy reconfiguration for meetings
Training facilities	Breathable back and fixed seat suit all-day training session use
Reception and visitor areas	Professional silver and black finish matches modern office reception decor
Open plan workstations	Compact footprint fits standard desk heights for temporary task seating
Education classrooms	Nestable storage reduces space requirements when not in use
Event and conference venues	Smooth rolling casters enable quick setup for large events
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Applicable office furniture standard	EN 1335:2020
Applicable safety standard	EN 1022:2018
Applicable mechanical standard	EN 1728:2012

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable caster standard	ANSI/BIFMA X2017
Applicable durability standard	ANSI/BIFMA X5.1 Test 11

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Applicable safety standard	GB/T 3326
Applicable durability standard	GB/T 10357.3
Applicable upholstery standard	GB/T 19001

Standardized tender description text

This product must meet the following technical requirements:
1. Applicable safety standard: GB/T 3326;
2. Applicable durability standard: GB/T 10357.3;
3. Applicable upholstery standard: GB/T 19001;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TMC-SB45-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TMC-SB45-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TMC-SB45-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Mobile Castered Training Meeting Chair with Slatted Metal Back (model TMC-SB45unbranded) is a purpose-built commercial seating solution engineered for flexible, high-use shared spaces. It features a clean, functional two-tone aesthetic, pairing a silver corrosion-resistant powder-coated steel frame with a slatted horizontal silver steel back trimmed with black edging, a black woven fabric upholstered seat, and black molded fixed armrests. The chair measures 585 mm wide, 460 mm deep and 830 mm tall, with fixed seat height set at 450 mm to align with standard 760 mm desks, armrests positioned 645 mm from the floor for consistent forearm support, and a compact footprint that avoids overcrowding in dense layouts. When not in use, chairs nest vertically to minimize required storage footprint. Its construction prioritizes durable, low-maintenance performance for commercial settings. The 1.5 mm thick steel tubing frame supports a maximum recommended static load of 150 kg, while the seat is built on a 14 mm bent plywood internal support board, molded polypropylene seat pan with steel cross bracing, and 60 mm thick 45 kg/m³ high-density polyurethane foam with 60% rebound rate, finished with double-stitched black woven fabric set at 8 stitches per inch for seam durability. The backrest’s open horizontal slats enable continuous air circulation to reduce heat buildup during extended use. Four 50 mm diameter dual-wheel non-marking nylon casters offer 360-degree swivel movement at both the caster and leg mount for smooth repositioning, operating reliably on hard floors and low-pile carpet without scuffing commercial flooring surfaces, with a net product weight of 12 kg for easy handling. The fixed-height molded polypropylene armrests provide stable support during discussions and note-taking. This chair suits a wide range of commercial and institutional spaces, including corporate meeting rooms where rapid layout reconfiguration is needed, training facilities supporting all-day sessions, modern reception and visitor areas, open plan workstations for temporary task seating, education classrooms, and large event and conference venues requiring fast setup and teardown. For procurement planning, note each unit ships in two cartons with a total packaged gross weight of 23 kg and total carton volume of 0.26 m³, requires 40 minutes of assembly per set, and 135 sets can be loaded in a 20GP container at 85% space utilization. No custom color or modification options are listed for this model.

Mobile Castered Training Meeting Chair with Slatted Metal Back Specifications
