PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 2200 × 1050 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	115 kg
Maximum static mattress load	350 kg
Slat system distributed load capacity	500 kg
Recommended mattress thickness	300 mm
Surface fabric abrasion resistance	30000 cycles
Frame joint static load durability	10000 cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer bed frame upholstery	Beige smooth faux leather, 1.2mm thickness, stitched panel seams
Headboard padded front/armrests	Dark brown woven fabric upholstery over high-density foam
Internal bed frame	Kiln-dried solid pine lumber, 30mm section thickness
Mattress support platform	12mm thick plywood slat base, 60mm wide slats, 50mm gap
Headboard padding core	35kg/m3 high-resilience polyurethane foam, 120mm thickness
Frame joint hardware	Zinc-plated steel corner brackets, 5mm thickness, bolted assembly
Lower base protective padding	3mm thick non-woven fabric dust cover under bed base
Seam construction	Reinforced polyester stitching, 8 stitches per inch, edge piping
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support	Fixed platform slat base, no box spring required for use
Assembly design	Knockdown bolted assembly, 4 main frame sections joined with hardware
Headboard design	Fixed curved wing headboard with rolled armrests, padded back support
Mattress retention	Raised upholstered lip around mattress platform perimeter
Center support	Full-length central support rail running head to foot of bed
Under-bed design	Enclosed upholstered base with minimal floor clearance, no under-bed storage
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary residential application	Master bedrooms in residential apartments and homes
Interior style compatibility	Contemporary, minimalist and luxury soft decor schemes
Recommended matching setup	Pairs with low-profile nightstands and upholstered seating
Ceiling height suitability	Works in rooms with 2400mm or higher finished ceiling height
Target user group	Adult residential users seeking soft, padded bedroom furniture

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic beds safety requirements	EN 747:2012+A1:2015

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Residential furniture structural safety	GB/T 3324
Upholstered furniture harmful substance limits	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Residential furniture structural safety: GB/T 3324;
2. Upholstered furniture harmful substance limits: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-CURV-K-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-CURV-K-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-CURV-K-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

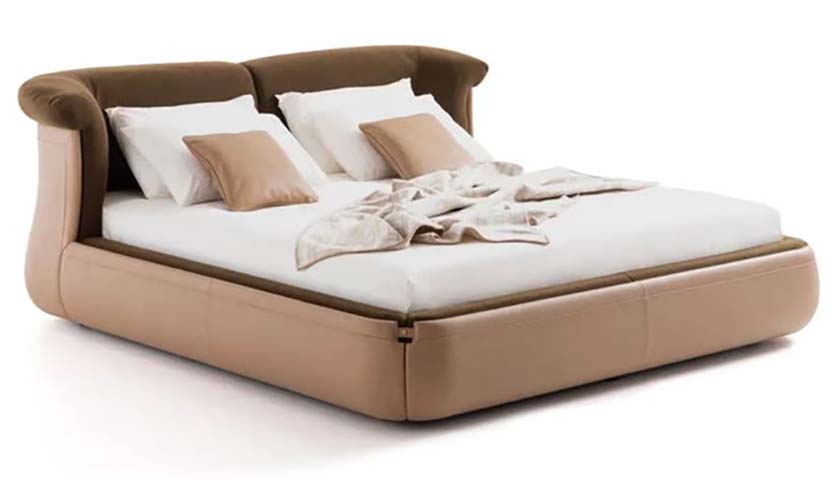

The Upholstered Platform Bed with Curved Roll-Arm Wing Headboard is a king-sized low-profile bed designed to anchor bedroom spaces with balanced softness and structured form, delivering a refined two-tone visual presence. Its fixed curved wing headboard is framed by gently rolled armrests, with the padded headboard front and arm surfaces upholstered in dark brown woven fabric, while the outer bed frame is finished in smooth beige faux leather accented with neat stitched panel seams and subtle edge piping. The bed sits on a fully enclosed upholstered base with minimal floor clearance, creating a clean, streamlined silhouette that eliminates visual clutter, and features a raised upholstered lip around the mattress platform to hold bedding securely in place. Built for long-term residential use, the bed’s internal structure relies on a kiln-dried solid pine frame joined with zinc-plated steel corner brackets secured via bolted connections, paired with a plywood slat base supported by a full-length central rail and six recommended center support legs. The faux leather outer upholstery measures 1.2mm thick, while the headboard holds 120mm thick high-resilience polyurethane foam padding for comfortable back support. Reinforced polyester stitching runs along all seams, and a non-woven fabric dust cover lines the underside of the base to protect floor surfaces and block dust buildup. The fixed slat platform eliminates the need for a separate box spring, supporting mattresses without additional foundation components. This bed is tailored for master bedrooms in residential apartments and homes, complementing contemporary, minimalist, and luxury soft decor schemes. It pairs seamlessly with low-profile nightstands and coordinating upholstered seating, and is suited for rooms with finished ceiling heights of 2400mm or higher, designed for adult users seeking soft, padded bedroom furniture. For procurement planning, note that the model ships across multiple cartons per set, requires bolted knockdown assembly with an assembly time of 40 minutes per unit, and is designed to support up to five controlled reassembly cycles at its main joints. Specifiers should confirm the recommended mattress thickness to ensure a proper fit with the frame’s retention lip, and account for the total packaged weight and volume when coordinating delivery and installation for residential projects. The unbranded model offers a consistent two-tone aesthetic for spaces prioritizing soft, tailored upholstered furnishings without overly ornate detailing.

Upholstered Platform Bed with Curved Roll-Arm Wing Headboard Specifications
