PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1640 × 2100 × 1100 mm
mattress compatible size	1530 x 2030 mm
headboard height	1100 mm
headboard thickness	180 mm
side rail height	320 mm
floor to slat surface height	170 mm
leg height	150 mm
under-bed clearance	120 mm
platform overhang width	55 mm
platform overhang length (foot end)	70 mm
slat thickness	18 mm
slat spacing	70 mm
total slat count	28
center support beam count	2
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net product weight	50 kg
total static weight capacity	363 kg
noise emission level	<30 dB
applicable sleeper count	2
upholstery abrasion resistance	30000 cycles
foam padding density	32 kg/m³
foam rebound rate	45%
edge support static load	136 kg
limited warranty period	3 years
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

headboard upholstery	100% polyester cream boucle fabric, looped texture
headboard padding	High-density polyurethane foam, wrapped over curved frame
bed base upholstery	Matching cream boucle fabric, finished stitched edge at perimeter
internal frame core	15 mm thick engineered plywood + solid pine bracing
support slats	Solid kiln-dried pine wood, sanded smooth, anti-slip screw mounting
support legs	Matte black powder-coated square steel block legs, 50x50 mm cross section
fastening hardware	Zinc-plated steel screws, dowels, and pre-drilled connectors
mattress retainer lip	Hidden fabric-covered lip at head end to prevent mattress sliding
center support beams	40 mm thick solid pine longitudinal beams, anchored to leg assemblies
seam construction	Reinforced stitched seams with 8 stitches per 25 mm pitch
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

mattress support system	Solid wood slat grid, eliminates need for separate box spring
assembly requirement	Flat-pack assembly with included hex key and labeled pre-drilled parts
floor protection	Plastic glide inserts at base of each metal leg, prevent floor scratches
cleaning compatibility	Spot clean with mild upholstery detergent and damp cloth, no machine washing
noise reduction design	Slats secured with anti-slip screws, no loose rattle points during movement
under-bed accessibility	120 mm open clearance for robot vacuum access and low-profile storage
positioning stability	Four-corner leg placement plus two mid-span center legs, zero wobble on level floors
mattress retention	Raised upholstered lip at head and side edges prevents mattress shifting
adjustment compatibility	No height adjustment, no storage lift, no recline mechanisms, fixed rigid structure
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential primary bedroom	Fits standard Queen mattress for two-adult use in modern or minimalist bedrooms
contemporary apartment bedroom	Low-profile design suits compact spaces without overwhelming small room layouts
soft neutral interior schemes	Cream boucle finish coordinates with warm neutral, Japandi, or Scandinavian decor
low-profile bed preference users	Open foot end and low platform height support easy entry and exit for users
vacation rental guest bedrooms	Durable boucle fabric and sturdy frame support frequent guest use
upholstered bed aesthetic upgrades	Curved rounded headboard delivers soft, cloud-like visual appeal without bulky footboard

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic beds - Safety requirements and test methods, applicable to structural safety
EN 1022:2005	Domestic furniture - Seating - Determination of stability, applicable to frame stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structural performance
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control
GB/T 1952.2-2011	General technical requirements for upholstered furniture, applicable to upholstery durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structural performance;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture, applicable to upholstery durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-BOU-CRV-150-BLKLEG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-BOU-CRV-150-BLKLEG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-BOU-CRV-150-BLKLEGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

This unbranded cream boucle curved headboard low-profile upholstered platform bed delivers a soft, refined silhouette centered on its gracefully rounded, full-height headboard, with no footboard to maintain an open, unobtrusive footprint. The entire upholstered surface uses cream-hued 100% polyester boucle with a distinct looped texture, paired with matching stitched edge details along the bed base perimeter for a cohesive, polished look. Matte black powder-coated square steel block legs provide a sharp, modern contrast to the soft neutral upholstery, balancing warm textural appeal with clean structural lines. The bed’s internal structure is built for long-term durability and stable performance. Its core frame uses engineered plywood braced with solid pine, topped with high-density polyurethane foam padding across the curved headboard for a plush, cushioned feel. Support comes from sanded, kiln-dried solid pine slats mounted with anti-slip screws, anchored by thick solid pine longitudinal center beams attached to leg assemblies. Six legs total—four at the corners and two at mid-span—ensure consistent stability on level floors, while plastic glide inserts at each leg base prevent floor scratches. A hidden fabric-covered retainer lip at the head end stops mattress slippage, and the solid wood slat grid removes the need for a separate box spring. Functional design details support everyday ease of use. The bed fits two adult sleepers with a standard queen-sized mattress, and offers open under-bed clearance that accommodates robot vacuum access and low-profile storage. Anti-slip slat mounting eliminates loose rattle points during use, and the upholstery may be spot cleaned with mild detergent and a damp cloth as needed. The low side rail and open foot end support easy entry and exit for users. The product ships in flat-pack format with pre-drilled, labeled parts and an included hex key, with a reference assembly time of 40 minutes per set. This bed fits a wide range of residential and light commercial spaces. It works well as the centerpiece of modern or minimalist primary bedrooms, suits compact contemporary apartment layouts without overwhelming limited square footage, and complements warm neutral, Japandi, or Scandinavian interior schemes. It is also a durable option for vacation rental guest rooms, thanks to its abrasion-resistant boucle upholstery and sturdy frame suited to frequent guest turnover. Procurement teams and residential buyers should note the model UPB-BOU-CRV-150-BLKLEG, confirm compatible mattress dimensions prior to purchase, and account for the two-carton flat-pack delivery and assembly requirements when planning installation scheduling. The matte black block leg finish should be coordinated with existing room hardware if design consistency is a priority.

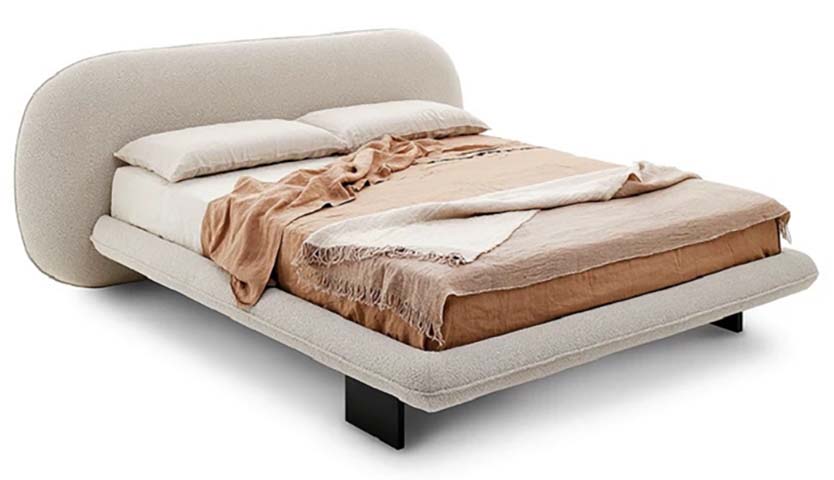

Cream Boucle Curved Headboard Low-Profile Upholstered Platform Bed Specifications
