PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1870 × 2340 × 980 mm
Headboard height	980 mm
Bed base height (mattress support surface)	350 mm
Under-bed clearance	150 mm
Headboard central cushion width	1580 mm
Headboard border thickness	120 mm
Recommended mattress thickness	400 mm
Leg footprint projection	180 mm
Side rail height (upholstered)	300 mm
Slat support span	1520 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static total weight capacity	590 kg
Net product weight	67 kg
Recommended user count	2 adults
Slat static load rating	30 kg per slat
Fabric abrasion resistance	30000 double rubs
Foam padding indentation load deflection	32 ILD
Minimum residential service life	5 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal frame	18mm thick plywood and engineered wood assembly
Headboard central cushion fabric	Light off-white woven polyester upholstery
Headboard border and bed base upholstery	Dark charcoal gray woven polyester fabric
Headboard and frame padding	40mm thick high-density polyurethane foam
Support slats	12mm thick poplar plywood slats with rubber noise-dampening pads
Support rails and center beam	1.2mm thick powder-coated steel reinforcement rails
Legs	3mm thick matte black powder-coated angled cantilever steel legs
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Wood slat platform with reinforced center beam, no box spring required
Slat spacing	70 mm gap between adjacent slats
Center support configuration	1 full-length central support beam with integrated cross bracing
Under-bed access	Open 150mm clearance for robot vacuum access and light under-bed storage
Assembly design	Tool-included knock-down assembly with pre-drilled alignment holes
Seam construction	10 stitches per inch reinforced seam stitching on all upholstery panels
Leg installation	Threaded metal leg inserts for tool-free leg attachment during assembly
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary residential use	Modern master or guest bedrooms for adult dual-occupancy sleeping
Style compatibility	Pairs with neutral-toned, mid-century modern, or contemporary bedroom furnishings
Space requirement	Minimum 300mm clearance on both sides and foot of bed for easy access
Mattress compatibility	Works with memory foam, hybrid, latex, and innerspring mattresses without a box spring
Recommended user profile	Consumers seeking streamlined, low-profile bedroom furniture without under-bed storage integrated features
Floor surface compatibility	Suitable for hardwood, tile, and carpeted floors; optional felt leg pads prevent floor scuffing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses, safety and strength requirements
EN 1021-1:2014	Upholstered furniture ignitability resistance to smoldering cigarette source

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structural integrity
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission verification
GB/T 19828-2018	Upholstered furniture durability test methods for bed structural performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structural integrity;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission verification;
3. GB/T 19828-2018: Upholstered furniture durability test methods for bed structural performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-TT-1830

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-TT-1830

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-TT-1830Open Export Tool

Quick Actions

Post an RFQ

Product Description

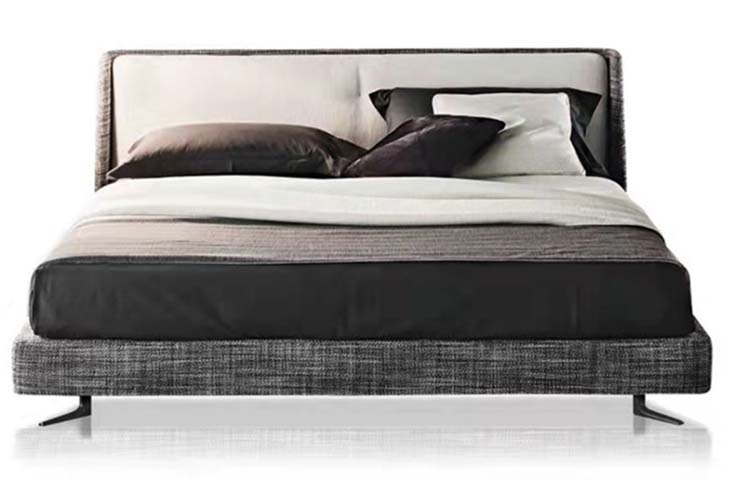

The Two-Tone Upholstered Low-Profile Platform Bed, model UPB-TT-1830, is an unbranded modern minimalist sleeping piece designed for streamlined residential spaces. Its visual identity is defined by a dual-tone upholstery scheme: the central headboard cushion is finished in light off-white woven polyester, while the headboard border and bed base are wrapped in dark charcoal gray woven polyester, creating subtle, refined contrast that pairs seamlessly with neutral-toned, mid-century modern, and contemporary bedroom furnishings. The low-profile silhouette features a padded headboard with a thick border, supported by angled cantilever legs finished in matte black powder coating, creating a balanced, unobtrusive visual presence suited to calm, uncluttered room layouts.
Constructed for durable residential use, the bed’s internal structure uses an 18mm thick plywood and engineered wood assembly, paired with 1.2mm thick powder-coated steel reinforcement rails and a full-length central support beam with integrated cross bracing for consistent structural stability. All upholstered surfaces are padded with 40mm thick high-density polyurethane foam, secured with 10 stitches per inch reinforced seam stitching, and the upholstery fabric is rated for 30000 double rubs to resist regular wear. Mattress support comes from poplar plywood slats fitted with rubber noise-dampening pads, mounted to the frame with zinc-plated steel bolts and barrel nuts. The 3mm thick steel legs attach via threaded metal inserts for simplified installation, and 15mm thick bent plywood or solid timber slats eliminate the need for a separate box spring.
Functionally, the bed supports two adult users, with a static total weight capacity of 590 kg and individual slat load ratings suitable for memory foam, hybrid, latex, and innerspring mattresses. The 150mm open under-bed clearance accommodates robot vacuum access and light under-bed storage, with no integrated enclosed storage compartments to preserve its clean lines. The knock-down assembly design includes all required tools and pre-drilled alignment holes for straightforward setup, with an assembly time of 40 minutes per set.
This bed is designed for use in modern master or guest bedrooms for adult dual-occupancy sleeping, with recommended clearances on both sides and the foot of the bed for easy access. It performs reliably on hardwood, tile, and carpeted floors, with optional felt leg pads available to prevent floor scuffing, and carries a minimum residential service life of 5 years. For procurement, buyers should note the product ships across multiple cartons with a total packaged gross weight of 130 kg per set, and plan for the recommended maximum 400mm thick mattress to maintain the intended low-profile aesthetic. Those prioritizing a streamlined silhouette without bulky built-in storage will find this piece aligned with core functional and stylistic needs for updated bedroom spaces.
