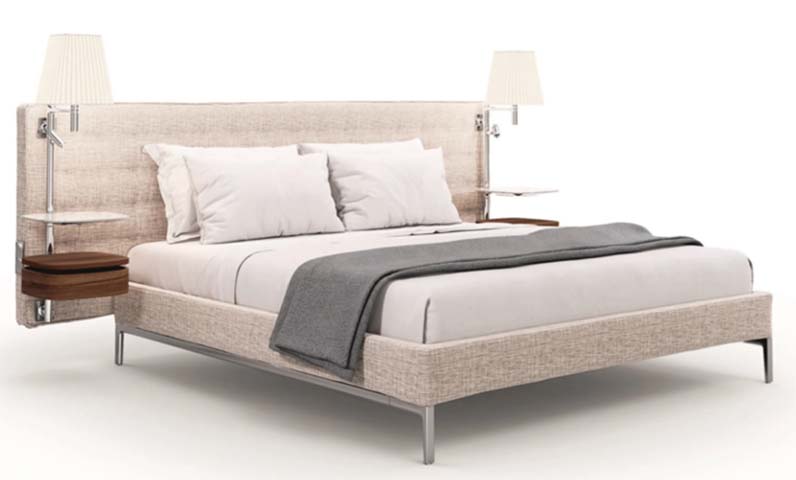

Name: Beige Linen Upholstered King Platform Bed with Integrated Swing-Arm Nightstands and Reading Lamps
Brand: AIMENGSHI
SKU: 0WQRB1

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3353 × 2210 × 1118 mm
Sleeping surface (king size)	1930 x 2030 mm
Headboard height	1118 mm
Bed frame platform height (floor to slat top)	305 mm
Recommended mattress thickness	305 mm
Under-bed clearance (floor to frame bottom)	203 mm
Side nightstand shelf projection from headboard	406 mm
Glass nightstand shelf height above mattress	203 mm
Walnut storage tier height above floor	356 mm
Reading lamp mounting height above mattress	762 mm
Slat width	70 mm
Slat spacing	76 mm
Leg diameter (chrome support)	32 mm
Lampshade dimensions	178 x 254 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	363 kg
Product net weight	70 kg
Number of occupants supported	2
Nightstand shelf static load per unit	15 kg
Center support leg count	3
Slat total count	28
Noise reduction fastener rating	10000 cycles
Wall mounting bracket load capacity per side	25 kg
LED reading lamp lumen output per unit	350 lm
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard outer layer	Woven beige linen blend upholstery
Headboard padding	25mm high-density polyurethane foam
Internal bed frame core	18mm plywood and MDF engineered wood
Bed base perimeter frame	Polished chrome-plated steel tube
Lower nightstand storage tiers	Walnut veneer over MDF with matte finish
Upper nightstand shelves	10mm frosted tempered glass
Swing-arm hardware	Polished chrome-plated solid steel
Support slats	12mm solid poplar wood
Reading lamp shades	Pleated off-white linen fabric
Connector hardware	Zinc-plated steel bolts and cam locks
Anti-slip mattress pad	3mm non-woven polyester fabric
Foot caps	Non-marking black TPE plastic

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swing-arm nightstand adjustment	180° horizontal rotation for custom bedside positioning
Integrated reading lamp operation	350lm warm white LED output with independent on/off switch per side
Mattress support system	Wood slat platform with center bracing, no box spring required
Stacked nightstand storage	Two-tier storage per side: upper glass shelf for drinks/phones, lower walnut tier for books/accessories
Noise reduction feature	Velcro-fixed slats to eliminate frame creaking during movement
Under-bed access	203mm open clearance for robotic vacuum cleaning and low-profile storage items
Wall anchor system	Included wall attachment brackets to prevent headboard tipping
Assembly requirement	Two-person adult assembly with included hex key and hardware
Lampshade orientation adjustment	30° vertical tilt for targeted reading light direction
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Primary residential bedrooms
Target user group	Adult consumers seeking all-in-one bedroom furniture without separate nightstands
Recommended room size	Minimum 3.6m x 4.0m bedroom
Style compatibility	Modern, contemporary, and minimalist bedroom interiors
Recommended complementary furniture	Low-profile dressers and wardrobes in walnut or chrome finishes
Practical use benefit	Ideal for compact primary bedrooms where space for separate nightstands is limited
Installation requirement	Headboard mounted against finished wall with power access nearby

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses: safety requirements, applicable to structural stability
EN 1022:2018	Domestic furniture - Seating and beds: determination of stability, applicable to tip-over prevention
EN 12520:2015	Furniture - Strength, durability and safety: requirements for domestic seating, applicable for edge load testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to engineered wood frame components
GB 18584-2001	Indoor decorating and refurbishing materials: limit of harmful substances in wood furniture, applicable to veneer and board components
GB/T 1952.2-2011	General technical requirements for upholstered furniture: beds, applicable to upholstered headboard and platform assembly

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to engineered wood frame components;
2. GB 18584-2001: Indoor decorating and refurbishing materials: limit of harmful substances in wood furniture, applicable to veneer and board components;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture: beds, applicable to upholstered headboard and platform assembly;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-KG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-KG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-KG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The AIMENGSHI BED-UPH-KG-001 is a beige linen upholstered king platform bed designed as a cohesive all-in-one sleep solution with integrated swing-arm nightstands and reading lamps, eliminating the need for separate bedside furniture. Its streamlined silhouette features a tall upholstered headboard anchored centrally, with symmetric bedside units extending from either side, balanced to align with modern, contemporary and minimalist interior aesthetics. The king-size sleeping surface sits on a low-profile platform, framed by polished chrome accents that complement soft woven textiles and warm wood finishes across the unit. Built for durable long-term use, the bed’s internal core combines larch wood, 18mm plywood and MDF engineered wood, with a perimeter frame constructed from polished chrome-plated steel tube and 28 solid poplar support slats reinforced by three center support legs. The headboard is padded with high-density polyurethane foam and wrapped in woven beige linen blend, while the integrated nightstands feature upper 10mm frosted tempered glass shelves, lower walnut veneer MDF tiers with a matte finish, and polished chrome-plated solid steel swing-arm hardware. Pleated off-white linen fabric shades cover the built-in reading lamps, and Velcro-fixed slats paired with noise-reduction fasteners reduce unwanted creaking during use. Functional features are tailored for convenient daily use: each swing-arm nightstand rotates 180 degrees horizontally for custom positioning, while each integrated reading lamp delivers warm white LED output controlled by an independent on/off switch. The two-tier nightstand storage holds frequently used items within reach, with upper shelves suited for drinks and phones, and lower tiers for books and personal accessories. The wood slat support system removes the need for a separate box spring, and open under-bed clearance accommodates robotic vacuum access and low-profile storage. Included wall anchor brackets prevent headboard tipping for added stability. This bed is designed primarily for residential primary bedrooms, ideal for adult consumers seeking consolidated furniture for compact spaces where separate nightstands would crowd floor plans. It requires a minimum 3.6m x 4.0m bedroom footprint, and pairs best with low-profile dressers and wardrobes in walnut or chrome finishes. For procurement planning, note that each set ships across multiple cartons, with a reference assembly time of 40 minutes per unit, and supports a total static weight capacity suited for two adult occupants. When selecting a mattress, opt for a profile aligned with the recommended thickness to match the design’s intended height alignment with the glass nightstand shelves.

Beige Linen Upholstered King Platform Bed with Integrated Swing-Arm Nightstands and Reading Lamps Specifications
