PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2250 × 2243 × 1257 mm
Overall king size dimensions (W x D x H)	2250 x 2243 x 1257 mm
Floor to top of bed platform (sleep surface base)	290 mm
Recommended mattress thickness	305 mm
Headboard panel thickness at thickest point	90 mm
Extended side wing protrusion from headboard face	400 mm
Under-bed clearance (floor to platform underside)	127 mm
Mattress supporting platform internal dimensions	1930 x 2032 mm
Slat spacing across support system	70 mm
Center support rail width	70 mm
Foot height (floor to base bottom trim)	30 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity (mattress + users)	500 kg
Net product weight	62 kg
Recommended mattress weight maximum	68 kg
Under-bed storage compartment load capacity	45 kg
Foam padding indentation load deflection (ILD)	36
Fabric abrasion resistance (Martindale cycles)	30000
Supported sleepers count	2 adults
Center support leg static load rating	120 kg
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Exterior upholstery fabric	Beige matte woven polyester fabric
Headboard and rail padding	High-resilience polyurethane foam
Internal frame structure	CARB P2 compliant engineered wood (MDF/plywood)
Mattress support slats	Solid birch wood slats
Support feet	Dark powder-coated metal small cylindrical feet
Connection hardware	Zinc-plated steel bolts and brackets
Tufting fasteners	Fabric-covered matching buttons
Under-bed storage gas struts (if fitted)	Carbon steel hydraulic gas lifts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Solid wood slat platform, no box spring required for use
Optional under-bed storage	Hydraulic gas lift platform lifts to access full under-bed compartment
Mattress retention design	Extended side wings and raised side rails prevent mattress shifting
Headboard function	Padded tufted wingback provides back support for seated bed use
Assembly requirement	Two-person assembly with included hardware and tools
Noise dampening design	Foam padding between slats and frame eliminates squeaking during use
Installation orientation	Wall-mounted or free-standing placement against flat bedroom walls
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary residential application	Master bedrooms in contemporary or transitional style homes
Suitable mattress type	All standard king size memory foam, hybrid or innerspring mattresses
Recommended room size minimum	3600 x 3900 mm
Commercial application suitability	Boutique hotel guest rooms and luxury short-term rental properties
Complementary furniture pairing	Low-profile upholstered benches and small neutral-tone nightstands
User suitability	Adult users seeking a statement headboard with soft, padded bedroom furnishing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses – Safety requirements and test methods
EN 1022:2018	Domestic furniture – Seating – Determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame and structural components
GB 18584-2001	Limit of harmful substances in wood furniture for interior decoration materials
GB/T 19889.6-2005	Acoustics measurement of airborne sound insulation for indoor furniture elements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural components;
2. GB 18584-2001: Limit of harmful substances in wood furniture for interior decoration materials;
3. GB/T 19889.6-2005: Acoustics measurement of airborne sound insulation for indoor furniture elements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UB-WB-KG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UB-WB-KG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UB-WB-KG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

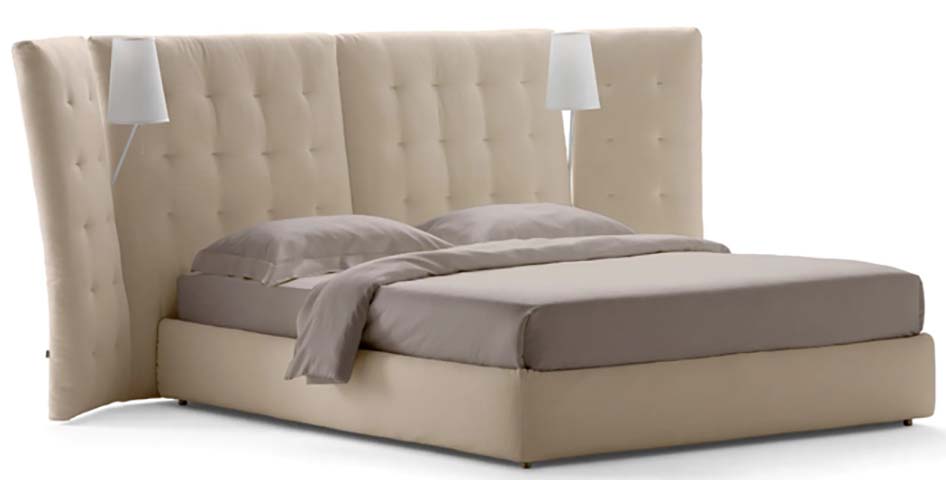

The Beige Button-Tufted Upholstered Wingback Platform Bed (King Size, model UB-WB-KG-001) is an unbranded modern low-profile public furniture piece defined by its structured, elegant silhouette. Its extended wing headboard features matching fabric-covered button tufting, with side wings protruding 400 mm from the headboard face to frame the sleep space. The 90 mm thick padded headboard anchors the design, paired with a 290 mm high sleep surface base supported by small dark powder-coated cylindrical metal feet, creating a streamlined, grounded profile that sits 127 mm above the floor at its lowest point. The bed’s internal structure is built with a CARB P2 compliant engineered wood frame of MDF and plywood, lined with high-resilience polyurethane foam rated 36 ILD for consistent cushioned support. The exterior is upholstered in matte beige woven polyester fabric tested to 30000 Martindale abrasion cycles for durable everyday use. The mattress support system uses 15 mm thick solid birch slats spaced 70 mm apart, with foam padding between slats and frame to eliminate operational squeak. Connection points use zinc-plated steel bolts and brackets for structural stability. The bed supports a total static weight of 500 kg across mattress and users, accommodating two adults, with a maximum recommended mattress weight of 68 kg; a hydraulic gas lift option raises the platform to access full under-bed storage rated for 45 kg of load, while extended side wings and raised rails prevent mattress shifting. The padded wingback provides comfortable back support for seated use, no box spring is required, and installation works as either free-standing or wall-mounted placement against flat walls. The bed fits all standard king size memory foam, hybrid, or innerspring mattresses with a recommended thickness of 305 mm, within its 1930 x 2032 mm internal support dimensions, with overall dimensions of 2250 x 2243 x 1257 mm. It is ideally suited for master bedrooms in contemporary or transitional style residential homes, as well as boutique hotel guest rooms and luxury short-term rental properties, requiring a minimum room size of 3600 x 3900 mm for comfortable placement; complementary pairings include low-profile upholstered benches and small neutral-tone nightstands. Procurement teams should note two-person assembly is required, with included hardware and tools supporting a 40 minute assembly time per set; orders ship as one set across two cartons with a total packaged gross weight of 130 kg and total packaging volume of 0.9 m³.

Beige Button-Tufted Upholstered Wingback Platform Bed (King Size) Specifications
