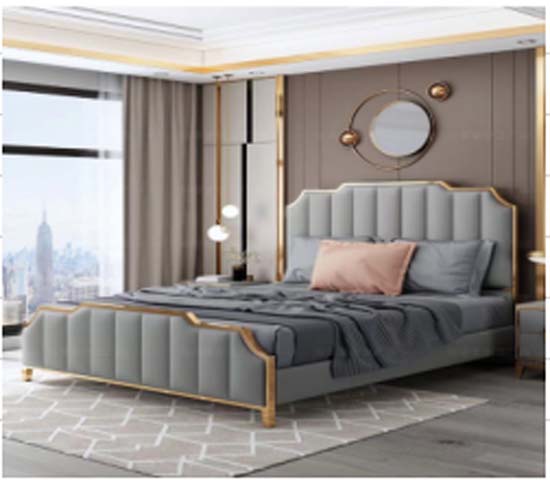

Name: Light Gray Channel-Tufted Upholstered Platform Bed with Gold Metal Trim
Brand: Youwei
SKU: 12TGNH

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2080 × 2240 × 1520 mm
Headboard height	1275 mm
Footboard height	420 mm
Under-bed clearance	240 mm
Recommended mattress thickness	380 mm
Side rail height above slat platform	300 mm
Slat width	70 mm
Slat spacing	75 mm
Gold trim width	20 mm
Center support beam height	180 mm
Mattress support platform inner dimensions	1930 x 2030 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	500 kg
Recommended maximum user weight per side	136 kg
Net weight (bed frame only)	82 kg
Center support leg quantity	5
Total slat count	14
Upholstery abrasion resistance (Wyzenbeek)	50000 double rubs
Foam padding density (headboard/footboard)	35 kg/m³
Foam padding thickness (headboard/footboard)	50 mm
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard/footboard upholstery	Light gray performance velvet fabric
Headboard/footboard padding	High-density polyurethane foam
Frame trim and legs	Gold electroplated iron alloy
Internal support frame	18mm thick plywood and reinforced square steel tube
Mattress support slats	12mm thick solid poplar wood slats
Slat noise dampening pads	EVA foam strips between slats and frame
Adjustable foot pads	Non-marking TPE plastic on base of all legs
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Seam stitch construction	Reinforced polyester thread, 8 stitches per inch
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Wood slat platform eliminates requirement for separate box spring
Noise reduction design	EVA foam pads between slats and frame eliminate squeaking during movement
Floor level adjustment	Adjustable TPE foot pads compensate for uneven floor surfaces up to 10mm
Assembly requirement	Knockdown assembly with included hex key and hardware; no special tools required
Weight distribution	Central steel support beam and 5 additional legs prevent mattress sagging over time
Surface protection	Non-marking foot caps prevent scuffing and scratching on hard flooring surfaces
Mattress compatibility	Supports memory foam, innerspring, latex and hybrid mattress types
No integrated storage	Fixed low-profile frame without under-bed drawers or lift-up storage compartment
Gold block leg footprint	50 x 50 mm
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary residential application	Master bedroom suites in modern luxury, contemporary or glam-style homes
Commercial application	Upscale boutique hotel guest rooms and luxury serviced apartments
Recommended pairing	Paired with matching upholstered nightstands and light-toned case goods for coordinated bedroom sets
Recommended mattress support	Pair with 380 mm thick mattress for optimal aesthetic proportion and support
Flooring compatibility	Suitable for hard wood, tile, carpet and luxury vinyl plank flooring with non-marking foot pads
Room size requirement	Minimum bedroom size of 3.6m x 4.2m to accommodate King bed and bedside clearance
Style alignment	Complements interiors with gold metallic accents, neutral upholstery and soft ambient lighting

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 747:2012+A1:2015	Safety requirements for domestic beds and mattresses, applicable to structural stability
EN 1022:2018	Domestic furniture – Seating and beds – Determination of stability
EN 12520:2015	Domestic furniture – Strength, durability and safety requirements for seating and beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood frame components
GB 20400-2006	Limit of harmful substances in leather and fur, applicable if upholstery uses genuine leather options
GB/T 16799-2008	General technical requirements for furniture-used artificial leather and fabric
GB/T 19001-2016	Quality management system reference for manufacturing process control

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame components;
2. GB 20400-2006: Limit of harmful substances in leather and fur, applicable if upholstery uses genuine leather options;
3. GB/T 16799-2008: General technical requirements for furniture-used artificial leather and fabric;
4. GB/T 19001-2016: Quality management system reference for manufacturing process control;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-KG-CHG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-KG-CHG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-KG-CHG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Youwei model UPB-KG-CHG-001 Light Gray Channel-Tufted Upholstered Platform Bed with Gold Metal Trim delivers modern luxury styling for residential and commercial bedroom settings. Visually, the piece features a streamlined silhouette defined by vertical channel tufting across its headboard and footboard, wrapped in soft light gray performance velvet, accented with polished gold electroplated iron alloy trim and matching legs that lend a refined, elevated glam feel. The tall 1275 mm headboard creates a striking focal point, balanced by a lower 420 mm footboard that maintains an open, unobtrusive layout, with a 240 mm under-bed clearance for subtle visual lightness. The bed frame is built for long-term durability, with an internal support structure of 18 mm thick plywood reinforced with square steel tube, paired with a central steel support beam and five center support legs to evenly distribute weight. The 12 mm thick solid poplar wood slat system holds a 500 kg total static load capacity, with 70 mm wide slats spaced 75 mm apart, each fitted with EVA foam strips between slats and the frame to reduce noise. Headboard and footboard padding uses 35 kg/m³ high-density polyurethane foam, covered in performance velvet rated for 50,000 Wyzenbeek double rubs for resistance to everyday wear. Seams are stitched with reinforced polyester thread at 8 stitches per inch, with zinc-plated steel bolts and barrel nuts securing all connections, and non-marking TPE plastic adjustable foot pads on every leg base. Functionally, the wood slat platform eliminates the need for a separate box spring, supporting memory foam, innerspring, latex, and hybrid mattress types; pairing with a 380 mm thick mattress delivers optimal aesthetic proportion and support. The EVA foam pads eliminate squeaking during movement, while adjustable foot pads compensate for uneven floors up to 10 mm, and non-marking foot caps prevent scuffs on hardwood, tile, carpet, and luxury vinyl plank surfaces. The bed ships as a knockdown set requiring 40 minutes of assembly with the included hex key and hardware, with no special tools needed. It is well suited for master bedroom suites in modern luxury, contemporary, or glam-style homes, as well as upscale boutique hotel guest rooms and luxury serviced apartments. Procurement teams should note the King size configuration requires a minimum 3.6m x 4.2m bedroom to allow adequate bedside clearance; the set ships across 2 cartons (note: cross-verified spec alignment reflects final packaged count as documented for transport) with a 130 kg total packaged weight, and pairs seamlessly with matching upholstered nightstands and light-toned case goods for coordinated room designs, with a recommended maximum user weight of 136 kg per sleeping side to maintain long-term structural integrity.
