PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1702 × 2159 × 1118 mm
Mattress platform width (queen)	1524 mm
Mattress platform length (queen)	2032 mm
Headboard height (from floor to top)	1118 mm
Floor to top of bed platform height	119 mm
Headboard wing extension from bed frame	127 mm
Side rail thickness (upholstered)	203 mm
Footboard height (from floor to top)	305 mm
Ground clearance under bed frame	50 mm
Headboard padding thickness	76 mm
Recommended maximum mattress thickness	305 mm
Support foot diameter	38 mm
Slat width (individual support slat)	70 mm
Slat spacing (gap between adjacent slats)	76 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity (mattress + sleepers)	499 kg
Product net weight	50 kg
Slat system static load rating	363 kg
Number of sleepers supported	2
Noise reduction performance	Silent connection design
Fabric abrasion resistance (recommended minimum)	30000 double rubs
Foam compression set resistance	Less than 10% after 25000 cycles
Structural frame durability	10 year minimum service life
Color option count	5
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery fabric	Polyester-linen blend woven fabric, matte light beige finish
Headboard/rail padding	32kg/m³ high-resilience polyurethane foam
Internal frame structure	18mm thick Plywood and MDF composite frame
Mattress support slats	12mm thick solid birch wood slats
Center support beam	40x60mm powder-coated steel rectangular tube
Hardware fasteners	Zinc-plated rust-resistant steel bolts and barrel nuts
Support feet	2mm thick black powder-coated steel cylindrical feet
Floor protection pads	3mm thick non-slip rubber foot pads
Seam stitching	Polyester bonded thread, 7 stitches per 30mm
Internal frame lining	Non-woven polypropylene dust cover
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Solid wood slat platform with central steel beam
Headboard function	Curved wingback padded headboard
Noise reduction design	Velcro-fixed slat strips and rubber joint gaskets
Mattress retention	Raised upholstered side rails and footboard
Assembly method	Knock-down flat pack assembly with included hardware
Edge support	Reinforced upholstered side rail frame
Floor protection	Non-marking rubber foot pads
Cleaning maintenance	Spot clean with mild upholstery detergent
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Residential master bedrooms
Secondary application space	Guest bedrooms
Target user group	Adult residential users, households preferring soft-edged modern furniture
Recommended mattress type	Memory foam, hybrid, or latex mattresses 305 mm thick
Recommended placement	Positioned against a solid wall with 500mm clearance on sides and foot
Style matching	Pairs with light wood, neutral tone, and contemporary bedroom case goods
Commercial use suitability	Boutique hotel guest rooms and serviced apartments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements, applicable for structural stability
EN 1021-1:2014	Upholstered furniture flammability - cigarette ignition resistance, recommended for fabric

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural frame safety
GB 18584-2001	Formaldehyde emission limit for wooden furniture, required for indoor residential use
GB/T 1952.2-2011	Spring soft mattress standard, compatible with mattress support platform design

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural frame safety;
2. GB 18584-2001: Formaldehyde emission limit for wooden furniture, required for indoor residential use;
3. GB/T 1952.2-2011: Spring soft mattress standard, compatible with mattress support platform design;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-CW-LP-Q-BG01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-CW-LP-Q-BG01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-CW-LP-Q-BG01Open Export Tool

Quick Actions

Post an RFQ

Product Description

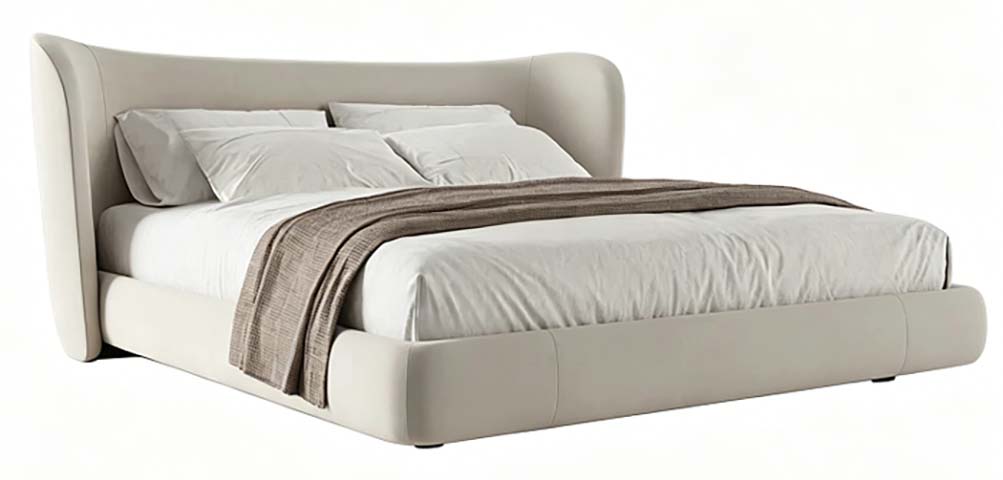

The Curved Wingback Upholstered Low-Profile Platform Bed in queen size and light beige delivers a refined, contemporary silhouette anchored by soft, rounded edges and a structured wingback headboard. Its low-profile frame sits close to the floor, with gently extended headboard wings that frame the sleeping area, while upholstered side rails and a low footboard create a cohesive, streamlined visual that balances softness with clean modern lines. The matte light beige woven upholstery wraps all visible frame surfaces, paired with small dark support feet that add subtle visual contrast without disrupting the calm, minimalist aesthetic. Construction centers on a durable engineered wood frame reinforced with a powder-coated steel central support beam, fitted with solid birch wood slats to deliver stable mattress support without requiring a separate box spring. All external surfaces are padded with high-resilience polyurethane foam, covered in a polyester-linen blend woven fabric tested to meet recommended minimum abrasion resistance standards, with stitched seams secured by durable polyester bonded thread. Zinc-plated rust-resistant steel hardware connects frame components, while silent connection features including Velcro-fixed slat strips and rubber joint gaskets reduce operational noise during use. Non-slip, non-marking rubber foot pads sit at the base of each dark steel support foot to protect finished flooring surfaces. Designed to accommodate two adult sleepers, the bed features a slat support system with a dedicated static load rating, and raised upholstered rails that hold the mattress securely in place without shifting. It is compatible with memory foam, hybrid, or latex mattresses of the recommended maximum thickness, and ships as a knock-down flat pack with all required hardware included for straightforward assembly. Reinforced upholstered side rails deliver consistent edge support, and the padded curved wingback headboard offers a soft, comfortable backrest for seated activities like reading in bed. This bed is primarily suited for residential master bedrooms, with secondary use in well-appointed guest bedrooms, and pairs seamlessly with light wood, neutral-toned, and contemporary bedroom case goods. For optimal placement, position the bed against a solid wall with the recommended maximum clearance around the sides and foot to allow easy movement. When procuring, note that the product ships across multiple cartons, plan for the referenced assembly time per unit, and verify that the selected mattress thickness aligns with recommendations to preserve the bed’s intended low-profile look and functional performance.

Curved Wingback Upholstered Low-Profile Platform Bed (Queen Size, Light Beige) Specifications
