PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1930 × 2210 × 1200 mm
inner mattress fit dimensions	1800 x 2000 mm
headboard thickness	140 mm
floor to slat support height	300 mm
support leg height	200 mm
side rail height above slat	250 mm
mattress compatible thickness	400 mm
wing extension protrusion from headboard	80 mm
headboard horizontal channel count	3
under-bed floor clearance	180 mm
side rail thickness	30 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static load capacity	450 kg
bed frame net weight	98 kg
slat support count	16
center support leg count	3
slat spacing gap	70 mm
upholstery abrasion resistance	30000 Martindale cycles
anti-slip mattress grip	Velcro fixing strips
noise damping rating	EVA padded slat contacts
frame structure service life	10 years
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

headboard/side rail upholstery	Performance tech fabric, blue + light grey two-tone
headboard padding	35kg/m3 high-density polyurethane foam
internal bed frame	Solid pine + plywood structural frame
support slats	25mm thick curved birch slats
support legs	1.5mm thick matte black powder-coated steel
slat damping strips	EVA foam anti-noise padding
fastener hardware	Zinc-plated steel bolts and barrel nuts
matching nightstand upholstery	Matching blue performance fabric
frame internal lining	Non-woven fabric dust cover
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

support foundation	Wood slat platform, no box spring required
seated back support	Padded angled wingback headboard
edge safety design	Soft padded rounded side rail corners
knockdown assembly	Bolt-together assembly with included Allen key
under-bed access	180mm clear floor clearance
mattress retention	Non-slip Velcro strips on slat surface
noise reduction	EVA gaskets on all slat and frame contact points
coordinated furnishing	Compatible with matching 2-drawer upholstered nightstands
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

primary application space	Master bedroom, modern light luxury residential interiors
target user group	Adult homeowners seeking soft, upholstered low-profile bedroom furniture
compatible design schemes	Contemporary, minimalist, Italian light luxury bedroom layouts
mattress compatibility	All standard 1800x2000mm spring, latex, or memory foam mattresses
cleaning suitability	Stain-resistant performance fabric for high-use residential bedrooms
space requirement	Minimum 2800x3200mm bedroom footprint for bed + paired nightstands
access consideration	Suitable for standard bedroom doorways (800mm clear width) when disassembled

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2005	Domestic furniture - Seating - Stability test method applicable to bed edges

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structure
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood furniture
GB/T 1952.2-2011	Technical requirements for spring and upholstered furniture bed products
GB 20400-2006	Leather and fabric limits for harmful substances in upholstered furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structure;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood furniture;
3. GB/T 1952.2-2011: Technical requirements for spring and upholstered furniture bed products;
4. GB 20400-2006: Leather and fabric limits for harmful substances in upholstered furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-WB2T-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-WB2T-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-WB2T-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

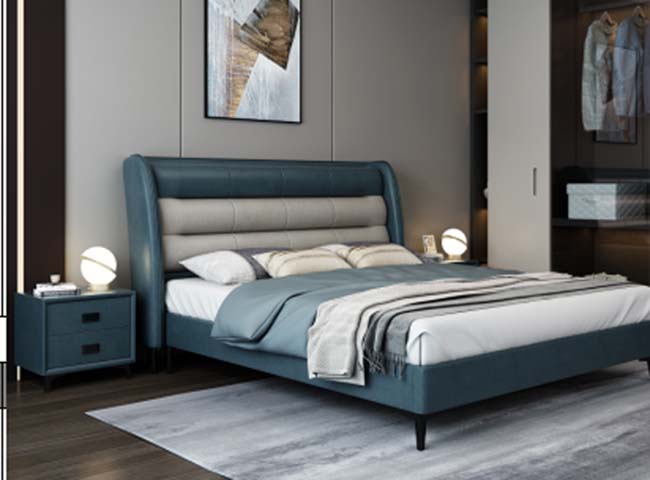

This Two-tone Blue Grey Wingback Channel-tufted Upholstered Platform Bed (model UPB-WB2T-1800) is an unbranded bedroom furniture piece with a balanced modern light luxury aesthetic, designed for residential use. Visually, it features a structured wingback headboard with neat channel tufting, finished in a coordinated two-tone palette of deep blue and soft light grey performance tech fabric. The angled wing sections extend slightly outward from the headboard, creating a framed, inviting silhouette paired with low-profile side rails and streamlined matte black metal support legs for a refined, uncluttered presence. Construction centers on a durable solid pine and plywood internal frame, padded with 35kg/m3 high-density polyurethane foam across the headboard and side rails. The upholstered surface holds 30000 Martindale cycles of abrasion resistance, suited for regular high-use settings. Support comes from 16 curved 25mm thick birch slats, spaced with even gaps and fitted with EVA foam anti-noise padding at all contact points to eliminate creaking; three additional center support legs reinforce the structure, and all hardware uses zinc-plated steel bolts and barrel nuts for stable connections. A non-woven fabric dust cover lines the frame interior to protect structural components. The bed eliminates the need for a separate box spring, with Velcro fixing strips on slat surfaces to prevent mattress slippage. The padded angled headboard offers comfortable support for seated reading or rest, while soft rounded padded side rail corners reduce impact risk for improved safety. It provides 180mm of clear under-bed clearance for easy cleaning access, and ships as a knockdown set assembled with an included Allen key, with an assembly time of 40 minutes per unit. This model is designed for primary bedrooms aligned with contemporary, minimalist, or Italian light luxury design schemes, suited for adult homeowners seeking soft, low-profile upholstered furniture. It accommodates all standard 1800x2000mm spring, latex, or memory foam mattresses, and pairs with coordinating blue-upholstered nightstands. When planning placement, allow a minimum 2800x3200mm bedroom footprint to fit the bed and paired nightstands comfortably. Procurement teams should note the stain-resistant performance fabric supports easy upkeep for high-use residential settings, the structure holds a total static load capacity of 450kg, and orders are packed as one set across two cartons with a total packaged gross weight of 130kg per unit.

Two-tone Blue Grey Wingback Channel-tufted Upholstered Platform Bed Specifications
