PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 2200 × 1050 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total bed frame weight	78 kg
Static weight capacity (mattress + users)	500 kg
Slat spacing	70 mm
Number of support slats	14
Recommended maximum user weight per person	150 kg
Warranty period for frame	5 years
Available upholstery color options	3
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Matte faux leather with soft grain surface
Headboard padding	35mm thick 35kg/m³ high-density polyurethane foam
Side rail upholstery	Matching matte faux leather over 15mm MDF substrate
Support slats	12mm thick solid pine wood slats
Support legs	20mm diameter matte black carbon steel legs
Internal frame	30x30mm square steel tube frame under upholstered rails
Hardware fasteners	Zinc-plated steel bolts and barrel nuts
Edge stitching	10 stitches per 100mm uniform upholstery stitching
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Box spring compatibility	No box spring required, slatted base directly supports mattress
Headboard function	Two-section padded headboard provides upright back support for sitting in bed
Under-bed access	120mm clearance allows robot vacuum and regular cleaning under frame
Assembly structure	Knock-down design with bolted connections for headboard, side rails and slat base
Mattress retention	Integrated side rail lips prevent mattress sliding during use
Noise reduction design	Felt pads between slats and metal frame reduce movement squeaks
Wall alignment	Flat back panel on headboard sits flush against standard walls
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Master bedroom use	Fits modern, minimalist or Scandinavian residential master bedrooms
Guest room application	Suitable for medium-sized guest rooms for 2 adult users
Small apartment use	Low-profile frame saves vertical space in compact urban bedrooms
Matching furniture pairing	Pairs with matching two-drawer gray nightstands as shown in scene
Recommended mattress pairing	Pairs with 300 mm thick memory foam, latex or spring mattresses

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 12520:2015	Domestic furniture - Seating - Strength, durability and safety requirements for bed headrests

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for frame and structural stability
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for formaldehyde emission control
GB/T 16799-2008	Furniture upholstery leather specifications, applicable for faux leather upholstery performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame and structural stability;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission control;
3. GB/T 16799-2008: Furniture upholstery leather specifications, applicable for faux leather upholstery performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-Q-001-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-Q-001-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-Q-001-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

This gray upholstered queen platform bed features a streamlined modern, minimalist low-profile form defined by a two-section padded headboard and clean, unadorned lines. The headboard’s flat back panel sits flush against standard walls, creating a tidy, seamless visual layout with no unsightly gaps, while the low frame height preserves vertical visual space in interior settings. The upholstery uses soft-grain matte faux leather across the headboard and side rails, held in place with uniform, evenly spaced edge stitching. The headboard is padded with thick high-density polyurethane foam, while side rails wrap a stable MDF substrate in matching upholstery. Beneath the upholstered exterior, the frame uses square steel tubing paired with matte black carbon steel legs, with a base of solid pine wood slats reinforced by center support legs. Felt pads sit between slats and the metal frame, and all connections use zinc-plated steel bolts and barrel nuts for secure, long-lasting assembly. The slatted base is engineered to support mattresses directly, eliminating the need for a separate box spring, while integrated lips along the side rails prevent unwanted mattress sliding during use. The padded headboard provides comfortable upright back support for sitting up in bed to read or relax, and the under-bed clearance allows full access for robot vacuums and regular cleaning. The knock-down bolted assembly structure supports straightforward setup, with reference assembly time for a full set taking 40 minutes, shipped across multiple cartons per unit. A 5-year warranty covers the bed frame. The bed is well suited for residential master bedrooms decorated in modern, minimalist, or Scandinavian design schemes, medium-sized guest rooms built to accommodate two adult users, and compact urban small apartments where vertical space is a priority. It pairs seamlessly with matching gray two-drawer nightstands for a coordinated look, and works with 300mm thick memory foam, latex, or spring mattresses. When making procurement decisions, buyers can select from available upholstery color options to align with existing interior palettes, account for packaged shipping weight and volume when coordinating delivery logistics, and verify support leg configurations meet specified recommendations for long-term stability. The bed is offered as an unbranded product, making it a flexible option for a range of residential furnishing projects.

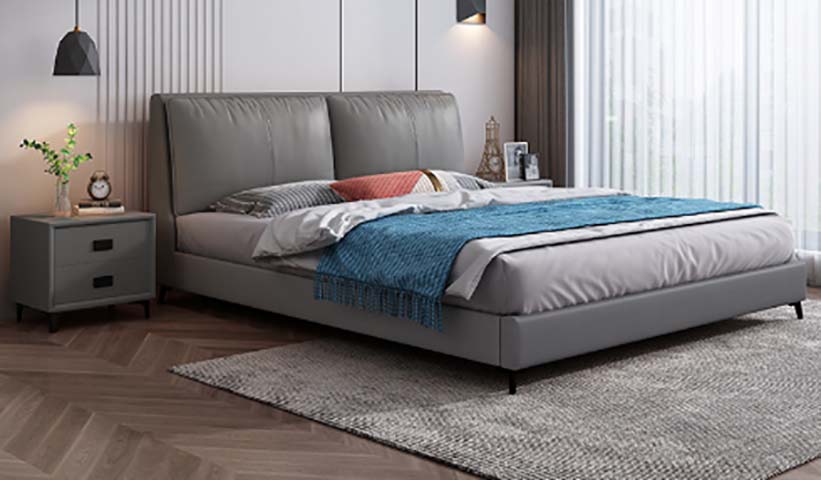

Gray Upholstered Queen Platform Bed with Padded Headboard Specifications
