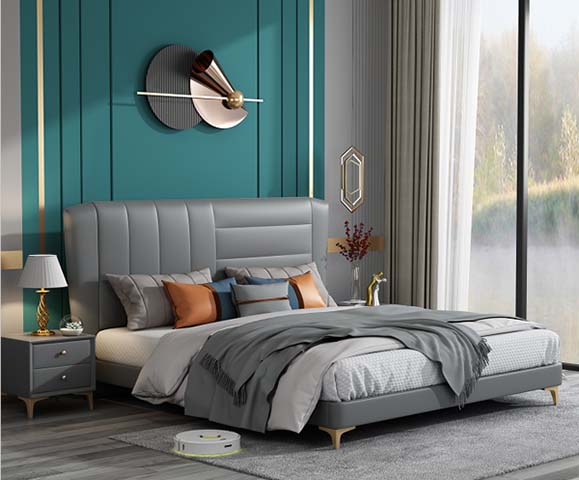

Product supplierGrey Upholstered Platform Bed with Gold Tapered Legs, Grey matte faux leather with vertical segmented stitching
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1820 × 2230 × 1160 mm | |
|---|---|---|
| Headboard height | 1160 mm | |
| Floor to mattress support slat height | 240 mm | |
| Under-bed ground clearance | 240 mm | |
| Mattress compatible width | 1800 mm | |
| Mattress compatible length | 2000 mm | |
| Headboard thickness | 150 mm | |
| Side rail height above floor | 350 mm | |
| Gold tapered leg height | 150 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 500 kg | |
|---|---|---|
| Recommended user count | 2 adults | |
| Frame net weight | 59 kg | |
| Foam padding density (headboard) | 35 kg/m³ | |
| Foam padding density (side rails) | 28 kg/m³ | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard upholstery | Grey matte faux leather with vertical segmented stitching | |
|---|---|---|
| Headboard padding | High-density polyurethane foam | |
| Internal frame core | Engineered plywood and LVL lumber | |
| Support slats | Solid poplar wood slats with center metal support beam | |
| Legs | Gold-toned polished iron tapered legs | |
| Side rail upholstery | Matching grey faux leather over padded frame base | |
| Hardware connectors | Zinc-plated steel bolts and barrel nuts | |
| Noise damping strips | EVA anti-slip strips at slat contact points | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Box spring requirement | No additional box spring needed; slats support mattress directly | |
|---|---|---|
| Mattress fit compatibility | Fits 300 mm thick standard spring/memory foam mattresses | |
| Assembly method | Knockdown assembly with included hex key and hardware | |
| Under-bed storage access | 240mm clearance allows robotic vacuum access and low-profile storage bins | |
| Headboard back support function | Angled padded segments support seated recline for reading or media use | |
| Leg floor protection | Non-slip EVA foot pads prevent floor scratching and frame movement | |
| Center support reinforcement | 1 longitudinal center beam with 3 support legs prevents slat sag | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Master bedroom application | Suitable for residential master bedrooms with modern light luxury design scheme | |
|---|---|---|
| Hotel guest room application | Suitable for mid-range boutique hotel guest rooms with durable contract-grade upholstery | |
| Apartment furnishing application | Suitable for rental apartment units with easy assembly and robust low-maintenance upholstery | |
| Recommended surrounding configuration | Pairs with 600mm tall two-drawer upholstered nightstands for matching aesthetic | |
| User demographic target | Designed for adult users seeking low-profile modern bedroom furniture without bulky footboard |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725 | Applicable European safety and strength standard for domestic beds and mattresses | |
|---|---|---|
| EN 1022 | Applicable stability testing standard for domestic seating and bed furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324 | Applicable general technical requirement standard for wooden furniture frames | |
|---|---|---|
| GB 18584 | Applicable limit standard for formaldehyde emission from wood furniture components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324: Applicable general technical requirement standard for wooden furniture frames; 2. GB 18584: Applicable limit standard for formaldehyde emission from wood furniture components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
