PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1870 × 2240 × 1090 mm
Inner mattress fit area	1800 x 2000 mm
Headboard maximum height	1090 mm
Side rail height above floor	300 mm
Floor to slat support surface height	300 mm
Mattress recess depth	50 mm
Headboard total width	1870 mm
Recommended maximum mattress thickness	305 mm
Under-bed clearance height	50 mm
Slat length per rail section	900 mm
Slat width	70 mm
Slat thickness	25 mm
Slat spacing between adjacent slats	75 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	227 kg
Bed frame net weight reference	68 kg
Number of supported sleepers	2
Slat center support beam count	1
Slat total count	12
Fabric upholstery abrasion resistance reference	30000 Martindale cycles
Frame connector static shear strength	450 kg
Limited warranty period	180 days
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery fabric	Woven polyester blend, burgundy wine red
Headboard padding	30mm thick high-density polyurethane foam
Internal support frame	Engineered pine wood and MDF composite
Support slats	Solid poplar wood slats
Central support beam	Solid laminated pine wood
Corner joint reinforcement	Stapled and glued hardwood corner blocking
Hidden support feet	Black polypropylene plastic feet
Rail edge trim	Matching fabric piped edging
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Wood slat platform, no box spring required
Headboard design function	Asymmetric split wingback with angled panels
Mattress retention	Recessed rail lip around sleep surface
Assembly requirement	Full knockdown assembly with included hardware kit
Under-bed clearance function	50mm low gap allows robot vacuum access
Fabric maintenance	Spot clean with mild upholstery detergent
Floor protection	Plastic glide feet prevent scuffing on hard flooring
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use space	Master bedrooms in modern residential apartments
Target users	Adult couples seeking stylish, space-efficient upholstered bedding
Recommended mattress pairing	300 mm thick memory foam or hybrid mattress
Compatible room size	Minimum 3000 x 3300 mm bedroom space
Style compatibility	Pairs with minimal, contemporary, and mid-century modern bedroom decor
Placement note	Position against a flat wall to align asymmetric headboard panels

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic bed safety	EN 1725:1998 Domestic furniture – Beds and mattresses – Safety requirements
Upholstered furniture VOC emissions	EN 16516:2017 Construction products – Assessment of release of dangerous substances
Furniture surface durability	EN 12720:2009 Assessment of surface resistance to cold liquids

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Bed frame structural safety	GB/T 3324General technical requirements for wooden furniture
Upholstered furniture safety	GB 20400Limit of harmful substances in leather and fabric furniture
Furniture mechanical performance	GB/T 10357.6Test of strength and durability for beds
Fabric flame retardancy	GB 17591Flame retardant fabrics for upholstered furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Bed frame structural safety: GB/T 3324General technical requirements for wooden furniture;
2. Upholstered furniture safety: GB 20400Limit of harmful substances in leather and fabric furniture;
3. Furniture mechanical performance: GB/T 10357.6Test of strength and durability for beds;
4. Fabric flame retardancy: GB 17591Flame retardant fabrics for upholstered furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-ASW-BG1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-ASW-BG1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-ASW-BG1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

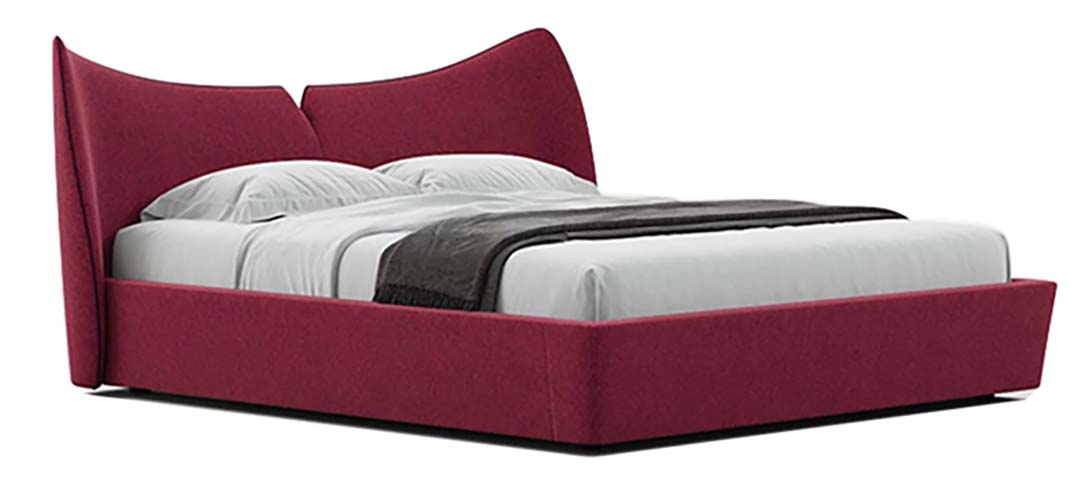

The Burgundy Woven Fabric Asymmetric Wingback Low-Profile Upholstered Platform Bed is a stylish modern bedding solution designed for paired adult use, featuring a distinct asymmetric split wingback headboard with angled panels that serves as a visual anchor in bedroom spaces. Its low-profile platform base sits close to the floor, finished with matching fabric piped edging along rails for a cohesive, tailored look, with a total headboard height that creates subtle presence without overwhelming room proportions. Built for durable daily use, the frame combines an engineered pine wood and MDF composite core reinforced with stapled and glued hardwood corner blocking, supported by 12 solid poplar wood slats and a single solid laminated pine central support beam. The exterior is upholstered in rich burgundy wine red woven polyester blend fabric, padded with 30mm thick high-density polyurethane foam for soft, structured comfort across the headboard and rails. Hidden black polypropylene plastic feet with glide finishes protect hard flooring from scuffs, while zinc-plated steel bolts and barrel nuts create secure, stable connections across all frame components. Functionally, the wood slat platform eliminates the need for a separate box spring, with a recessed rail lip around the sleep surface to hold mattresses securely in place. The 50mm under-bed gap allows robot vacuum access for easy floor maintenance, and the upholstery can be spot cleaned with mild upholstery detergent to preserve its finish. The bed arrives as a knockdown set in multiple cartons, with all required hardware included for assembly, and supports two sleepers with robust static load capacity. The fabric offers strong abrasion resistance for regular long-term use. This bed is ideally suited for master bedrooms in modern residential apartments, pairing seamlessly with minimal, contemporary, and mid-century modern decor schemes. It fits standard king-size mattresses, with a recessed sleep surface designed to accommodate thick memory foam or hybrid models, and requires placement against a flat wall to properly align its asymmetric headboard panels. Procurement teams and residential buyers should note the required minimum bedroom footprint for comfortable placement, plan for two-person handling given the packaged gross weight, and account for standard assembly time when scheduling installation. The low-profile design is particularly well suited for those seeking space-efficient, stylish upholstered bedding that balances visual appeal with practical everyday function.

Burgundy Woven Fabric Asymmetric Wingback Low-Profile Upholstered Platform Bed Specifications
