PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2040 × 2140 × 1330 mm
Headboard height	1330 mm
Floor to top of mattress platform	250 mm
Underbed storage compartment height	300 mm
Ground clearance under frame	40 mm
Recommended mattress thickness	406 mm
Matching nightstand dimensions	500 x 400 x 550 mm
Wing extension depth from headboard face	120 mm
Slat width	70 mm
Slat thickness	25 mm
Slat spacing	75 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	454 kg
Recommended number of users	2
Net weight (frame only)	100 kg
Slat system static point load	120 kg
Hydraulic lift cycle rating	10000 open/close cycles
Upholstery abrasion resistance	30000 Martindale cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Linen-look woven fabric
Headboard padding	30mm thick high-resilience polyurethane foam
Side rail/footboard upholstery	Matching off-white woven fabric
Internal bed frame	18mm thick plywood + 1.2mm thick steel square tube reinforcement
Support slats	Solid pine wood slats
Support legs	20mm diameter black powder-coated steel legs
Lift mechanism hardware	Class 2 gas hydraulic struts with reinforced steel hinges
Storage compartment base	Non-woven fabric dust cover lining
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Seam stitch pitch	8 stitches per 30mm
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lift-up underbed storage	Hydraulic gas strut assisted platform lifts from foot end to access full underbed cavity
Anti-slide mattress retention	Metal stopper at head end of platform prevents mattress shifting during lift
No box spring required	Solid wood slat platform directly supports standard mattresses
Soft-close lift mechanism	Controlled hydraulic lowering prevents slamming of the mattress platform
Wingback headboard support	Curved upholstered wings provide side draft blocking and seated back support
Knockdown assembly	Frame disassembles into flat-packed sections for transport
Noise damping	EVA foam pads at slat and frame joints reduce squeaking during use
Nightstand storage (matching set option)	Two soft-close drawers per matching upholstered nightstand
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions (master)	2200 x 1300 x 350 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	King size platform fits 3.5m+ wide bedroom layouts for primary sleeping use
Small-space urban apartments	Integrated underbed storage eliminates need for separate dressers or storage chests
Modern light luxury interior schemes	Off-white curved wingback design pairs with neutral, contemporary or minimalist decor
Matching bedroom set configurations	Coordinates with paired 2-drawer upholstered nightstands for coordinated room design
Users preferring low-profile beds	Low platform height provides easy access for adults without high step-over

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture beds and mattresses safety and strength requirements
EN 1022:2018	Domestic furniture seating stability test applicable to bed edge use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame strength and finish
GB 18584-2001	Indoor decoration material limit of harmful substances for wooden furniture
GB/T 1952.2-2011	General technical requirements for upholstered furniture mattresses/bed frames

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame strength and finish;
2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture mattresses/bed frames;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-LIFT-WB-OW-K1

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-LIFT-WB-OW-K1

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-LIFT-WB-OW-K1Open Export Tool

Quick Actions

Post an RFQ

Product Description

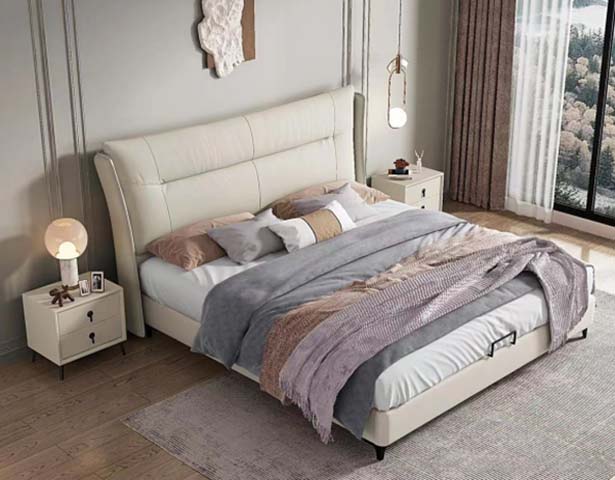

This off-white upholstered lift-storage platform bed features a curved wingback headboard for a soft, contemporary silhouette. The headboard extends gently outward on both sides to create a framed, cozy seating nook, while the low-profile platform sits close to the floor for a streamlined, unobtrusive presence. The entire frame is finished in matching linen-look woven off-white fabric, with black powder-coated steel legs providing subtle visual contrast at the base. The bed’s inner structure combines engineered plywood reinforced with steel square tube framing, supported by solid pine wood slats that eliminate the need for a separate box spring. All fabric surfaces are padded with high-resilience polyurethane foam for a plush, tactile finish, while EVA foam pads at slat and frame joints reduce operational noise during use. The lift mechanism uses Class 2 gas hydraulic struts with reinforced steel hinges, paired with zinc-plated steel connectors for secure assembly, and the underbed storage cavity is lined with a non-woven fabric dust cover to protect stored items. Functionality centers on the hydraulic-assisted lift platform, which raises from the foot end to grant full access to the enclosed underbed storage compartment, with a soft-close feature to prevent slamming during lowering. A metal stopper at the head of the platform holds the mattress in place when the lift is activated, while the curved wingback sections block side drafts and provide stable back support for seated use, such as reading in bed. The frame ships in flat-packed sections for efficient transport, with straightforward assembly for on-site setup. This king-size model is well suited for residential master bedrooms, particularly layouts with three and a half meters or more of width to accommodate the frame, and for small-space urban apartments where integrated storage removes the need for freestanding dressers or storage chests. Its neutral off-white finish and curved wingback design complement modern light luxury, minimalist, and neutral contemporary interior schemes, and it coordinates with matching 2-drawer upholstered nightstands for a cohesive room setup. The low platform height also makes it ideal for users who prefer easy bed access without a high step-over. For procurement planning, note that the bed ships across multiple cartons with a total packaged gross weight of 130 kg per set, and reference assembly time is 40 minutes per unit. The slat system is engineered to support a total static load aligned with two-person use, and the upholstery holds up to regular daily contact consistent with residential use. The hydraulic lift mechanism is rated for long-term repeated operation, making this model a durable choice for both residential settings and select hospitality applications where integrated storage and polished aesthetic are priorities.

Off-White Upholstered Lift-Storage Platform Bed with Curved Wingback Headboard Specifications
