PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1650 × 2160 × 1195 mm
Headboard height above mattress surface	546 mm
Floor to bed frame upper edge (mattress support surface)	152 mm
Under-bed clearance (floor to frame bottom)	152 mm
Compatible mattress thickness	305 mm
Headboard wing projection depth	152 mm
Bed side rail height above floor	305 mm
Headboard thickness (padded)	102 mm
Side rail upholstered thickness	76 mm
Mattress support surface width	1524 mm
Mattress support surface length	2032 mm
Slat spacing (center to center)	76 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity (sleepers + mattress)	500 kg
Product net weight	69 kg
Center support leg static load rating	136 kg per leg
Upholstery fabric abrasion resistance (Wyzenbeek)	30000 double rubs
Headboard foam compression recovery rate	92%
Assembly required hardware count	28 pieces
Squeak-free service life (residential use)	10 years
Recommended user count	2 adults
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery (headboard, side rails, base)	Dark blue linen-blend woven fabric
Headboard padding	38mm thick high-density polyurethane foam
Internal structural frame	Kiln-dried solid pine lumber
Mattress support slats	18mm thick solid poplar slats
Support legs (side and center)	50mm diameter solid hardwood legs
Cross support beams	30x90mm reinforced engineered wood beams
Frame joining hardware	Zinc-plated steel bolts and barrel nuts
Floor protection pads	6mm thick EVA non-slip pads
Seam stitching	Polyester core-spun thread, 8 stitches per inch
Internal frame corner blocking	12mm thick plywood corner braces
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support design	Slatted platform support, no box spring required for use
Noise reduction construction	EVA foam tape applied between slats and beams to eliminate metal/wood friction squeaks
Floor level adjustment	Adjustable foot pads on each support leg to compensate for uneven floor surfaces
Leaning support function	Wingback padded headboard provides upright back support for reading or sitting in bed
Mattress retention design	Recessed platform edge prevents mattress sliding during use
Cleaning maintenance	Spot-clean only with mild upholstery detergent, no machine washing
Assembly design	Flat-pack knockdown construction with included hex key and step-by-step instructions
Mattress alignment	Integrated headboard stop ensures mattress sits flush against headboard without gaps
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary residential application	Master or guest bedroom in modern, Scandinavian, or contemporary home interiors
User suitability	Adult couples or single sleepers requiring Queen size sleeping surface
Recommended placement clearance	Minimum 600mm clearance on 3 sides for easy bed making and cleaning
Commercial hospitality use	Mid-range hotel or short-term rental bedrooms with heavy residential-level use
Style compatibility	Pairs with linen bedding, neutral-toned nightstands, and low-pile area rugs
Installation requirement	Two-person assembly required due to frame component weight
Mattress recommendation	Pairs with 300 mm memory foam, hybrid, or innerspring mattresses

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2005	Domestic furniture - Seating - Determination of stability, applicable to headboard stability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal wood frame structural safety
GB 18584-2001	Limit of harmful substances in wooden furniture, applies to formaldehyde emission control for wood components
GB/T 1952.2-2011	Technical specifications for upholstered furniture mattresses, applicable to support surface design compatibility

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame structural safety;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applies to formaldehyde emission control for wood components;
3. GB/T 1952.2-2011: Technical specifications for upholstered furniture mattresses, applicable to support surface design compatibility;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-Q-WB-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-Q-WB-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-Q-WB-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

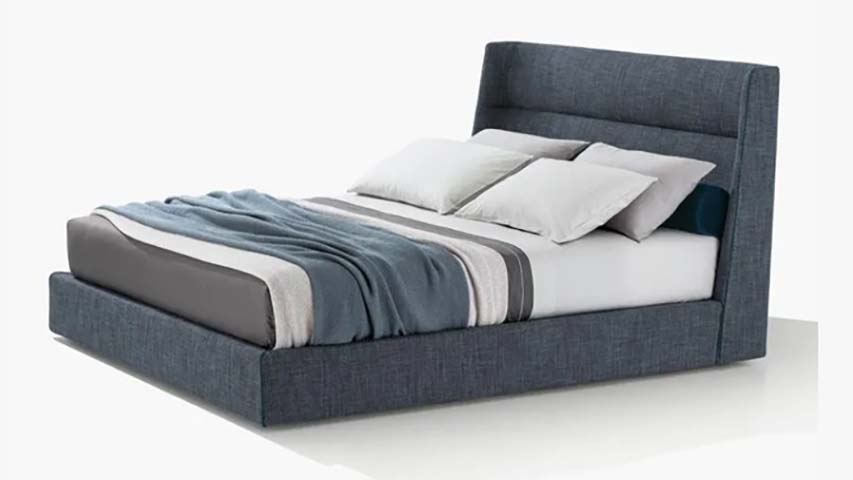

The Dark Blue Linen Upholstered Wingback Queen Platform Bed is a refined, unbranded sleeping solution designed to balance timeless aesthetic appeal and long-lasting functional performance, anchored by a classic wingback silhouette. Its low-profile frame omits a footboard for an open, unobstructed visual flow, with structured wing projections on the padded headboard that create a polished, intentional focal point in any space. The headboard sits at a comfortable height above the mattress surface to support upright seated positions, with a thick padded profile softened by tailored, even stitching. Built around a kiln-dried solid pine internal frame, the bed is engineered for consistent residential and light commercial use. All exterior surfaces of the headboard, side rails, and base are upholstered in a dark blue woven linen-blend fabric, padded with high-density polyurethane foam for a plush yet supportive feel. The mattress support system uses solid poplar slats mounted on reinforced engineered wood cross beams, held up by solid hardwood legs fitted with non-slip EVA floor pads. Frame connections use zinc-plated steel bolts and barrel nuts, with EVA foam tape positioned between slats and beams to eliminate friction-related squeaks over time. As a platform design, the bed requires no additional box spring, with a recessed platform edge to hold mattresses securely in place and prevent sliding during use. Each support leg features adjustable foot pads to compensate for uneven floor surfaces, and the wingback headboard offers stable back support for reading or sitting upright in bed. The under-bed clearance provides accessible space for routine cleaning, and the upholstery requires only spot cleaning with mild upholstery detergent for maintenance. The bed is delivered in flat-pack form with all required hardware, a hex key, and step-by-step instructions, with a recommended two-person assembly process to account for component weight. This bed is well suited for master or guest bedrooms in modern, Scandinavian, or contemporary residential interiors, pairing seamlessly with linen bedding, neutral-toned nightstands, and low-pile area rugs. It also fits mid-range hotel and short-term rental bedrooms operating under heavy residential-level use, with sizing designed for adult couples or single sleepers seeking a queen-sized sleeping surface. When planning placement, maintain the required minimum clearance on three sides of the frame to enable easy bed making and routine cleaning. Procurement teams should note the multi-carton packaging and assembly time when coordinating delivery and installation scheduling, and account for the product’s total static weight capacity when selecting compatible mattresses and planning for intended user loads.

Dark Blue Linen Upholstered Wingback Queen Platform Bed Specifications
