PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 2200 × 1180 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	500 kg
Bed frame net weight	85 kg
Applicable user count	2 adults
Foam padding density (headboard)	45 kg/m³
Slat base static load rating	350 kg
Recommended warranty period	3 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Light gray matte faux leather
Headboard padding	High-density polyurethane foam
Internal bed frame	Kiln-dried solid pine wood + plywood
Support slats	Laminated poplar wood slats
Support legs	Matte black powder-coated carbon steel
Side rail upholstery	Matching light gray faux leather
Stitching detail	High-tensile polyester thread, 8mm stitch pitch
Hardware fittings	Zinc-plated steel connectors and screws
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Headboard function	Padded segmented backrest
Bed base type	Fixed slatted platform
Assembly structure	Knock-down flat-pack construction
Mattress retention	Raised side and end rail lips
Under-bed access	Open 120mm clearance
Wall alignment	Flat rear headboard surface
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Suitable for 20sqm modern-style bedrooms, matches neutral light color decor schemes
Secondary guest bedroom	Fits 15sqm guest rooms, provides durable long-stay accommodation for visitors
Boutique hotel guest room	Suitable for mid-range hotel room interiors, offers durable commercial-grade performance
Apartment furnished rental	Ideal for long-term rental properties, neutral color matches wide range of decor styles
Matching furniture set	Pairs with matching 2-drawer upholstered nightstands as shown in product scene

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety performance recommendation	EN 1725:1998
Stability recommendation	EN 14749:2016

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General safety recommendation	GB/T 3324
Upholstery durability recommendation	GB/T 19001
Formaldehyde emission recommendation	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. General safety recommendation: GB/T 3324;
2. Upholstery durability recommendation: GB/T 19001;
3. Formaldehyde emission recommendation: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-Q-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-Q-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-Q-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

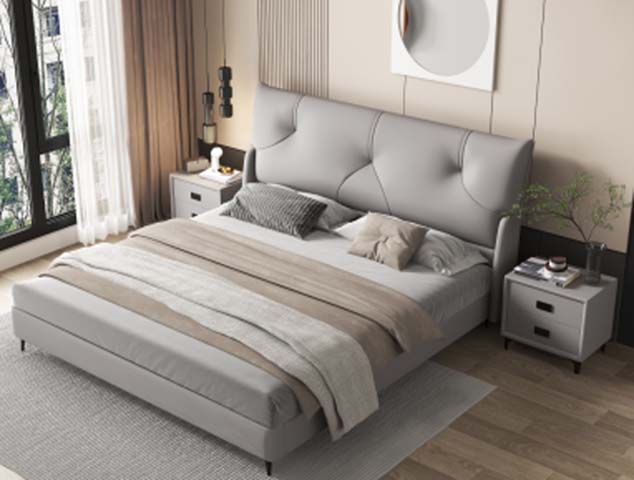

The Light Gray Upholstered Platform Bed with Padded Headboard (Queen Size, model BED-UPH-Q-001, unbranded) is a modern, minimalist low-profile sleeping solution defined by clean lines and a cohesive neutral aesthetic. Its frame features a segmented padded headboard and matching upholstered side rails, all finished in smooth light gray matte faux leather stitched with high-tensile polyester thread at an 8mm pitch for tailored visual cohesion. The flat rear headboard surface sits flush against aligned walls, while the bed’s streamlined silhouette maintains a low, unobtrusive profile without disrupting surrounding room sightlines. Rugged, commercial-grade construction supports long-term use across residential and light commercial settings. The internal frame is built from kiln-dried solid pine wood and plywood, with a base of 15mm thick laminated poplar wood slats set at 80mm spacing, reinforced by 6 matte black powder-coated carbon steel center support legs. The 40mm thick side rails are wrapped in matching light gray faux leather, and the headboard is padded with 45kg/m³ high-density polyurethane foam for a soft, supportive surface. Zinc-plated steel connectors and screws secure all joints, engineered to support 5 controlled assembly cycles for the knock-down flat-pack structure. The bed supports a total user weight capacity of 500kg, with a static load reference of 400kg and slat base static load rating of 350kg, sized to accommodate 2 adults. Practical functional details enhance daily usability: raised lips along side and end rails prevent mattress slippage, an open 120mm under-bed clearance allows easy access for cleaning or shallow storage, and the fixed slatted platform eliminates the need for a separate box spring. Assembly takes 40 minutes per set, shipped across 2 cartons per unit with a total packaged gross weight of 130kg. The product carries a 3-year recommended warranty. This bed fits a range of spaces: it anchors 20sqm modern residential master bedrooms by complementing neutral light-toned decor schemes, fits 15sqm secondary guest rooms to support durable long-stay visitor accommodation, works for mid-range boutique hotel guest rooms with its commercial-grade durability, and suits furnished long-term rental apartments thanks to its versatile neutral finish that pairs with varied decor styles. It coordinates seamlessly with matching light gray 2-drawer upholstered nightstands for a cohesive furnished look. When procuring, account for the 1800 x 2200 x 1180mm overall dimensions to confirm space fit, note the 85kg net frame weight for placement planning, and ensure space for the 2 shipping cartons prior to assembly.

Light Gray Upholstered Platform Bed with Padded Headboard, Queen Size Specifications
