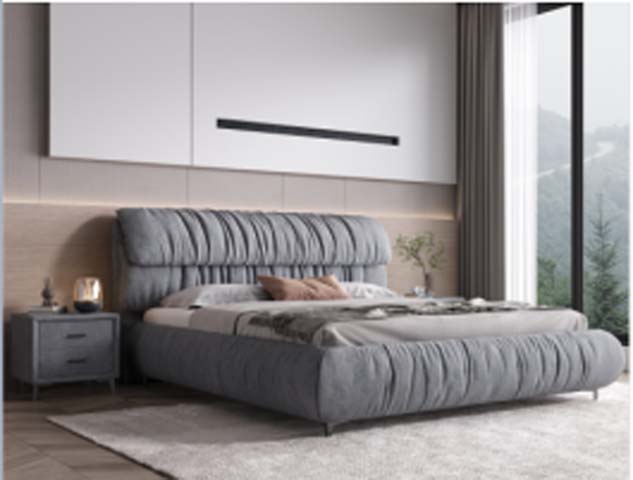

Product supplierGrey Vertical Channel Ruched Upholstered Low-Profile Platform Bed, Grey soft woven velour fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1980 × 2400 × 1220 mm | |
|---|---|---|
| Recommended mattress size | 1800 x 2000 mm | |
| Headboard padded thickness | 180 mm | |
| Side/foot rail height from floor | 350 mm | |
| Under-bed ground clearance | 120 mm | |
| Side rail padded thickness | 100 mm | |
| Foot rail width | 220 mm | |
| Mattress retention lip height | 50 mm | |
| Slat count | 14 units | |
| Slat spacing gap | 70 mm | |
| Individual slat thickness | 20 mm | |
| Center support leg count | 5 units | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 363 kg | |
|---|---|---|
| Recommended maximum mattress thickness | 360 mm | |
| Net product weight | 59 kg | |
| Frame joint cyclic durability | 10000 cycles | |
| Upholstery abrasion resistance | 30000 Martindale cycles | |
| Foam padding density | 55 kg/m³ | |
| Foam rebound rate | 45% | |
| Maximum supported user weight per side | 180 kg | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard upholstery | Grey soft woven velour fabric | |
|---|---|---|
| Side/foot rail upholstery | Matching grey velour fabric | |
| Internal frame material | Kiln-dried eucalyptus hardwood | |
| Padding material | High-density polyurethane foam | |
| Support legs | Dark powder-coated carbon steel | |
| Slat support system | Steam-bent birch wood slats | |
| Connecting hardware | Zinc-plated rust-resistant steel bolts | |
| Noise reduction pads | Felt anti-slip pads | |
| Fabric finish | Stain-repellent treated surface | |
| Foot glides | Non-marking plastic floor protectors | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Support system function | Full slat platform eliminates need for box spring | |
|---|---|---|
| Center reinforcement function | Steel cross rail with additional support legs | |
| Assembly configuration | Knock-down assembly with all included hardware | |
| Noise reduction design | Felt-lined slat mounts eliminate frame squeak | |
| Headboard support function | Integrated fixed tall padded headboard | |
| Rounded edge design | Soft padded rounded corners on foot/side rails | |
| Mattress retention design | Raised inner lip on all four side rails | |
| Floor protection function | Non-marking glides on all leg bases | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary residential use | Master or guest bedroom spaces | |
|---|---|---|
| Style compatibility | Modern minimalist, light luxury, contemporary bedroom interiors | |
| Coordinating furniture | Matching grey 2-drawer upholstered nightstands as shown in image | |
| User suitability | Adult couples or single sleepers seeking soft padded bedroom furniture | |
| Floor type suitability | Hardwood, tile, laminate or low-pile carpeted floors | |
| Mattress compatibility | Memory foam, latex, spring or hybrid mattresses up to 360mm thick | |
| Space requirement | Minimum 2500 x 3000 mm bedroom footprint |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture – Beds and mattresses – Safety requirements, applicable for residential use | |
|---|---|---|
| EN 1022:2018 | Domestic furniture – Seating/bed stability test methods for structural validation |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame | |
|---|---|---|
| GB 18584-2001 | Formaldehyde emission limit for wooden interior furniture, mandatory for frame materials | |
| GB/T 1952.2-2011 | General technical requirements for upholstered furniture (soft beds) | |
| GB 20400-2006 | Leather/fabric safety specification for upholstered furniture upholstery |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame; 2. GB 18584-2001: Formaldehyde emission limit for wooden interior furniture, mandatory for frame materials; 3. GB/T 1952.2-2011: General technical requirements for upholstered furniture (soft beds); 4. GB 20400-2006: Leather/fabric safety specification for upholstered furniture upholstery; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
