PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1700 × 2170 × 1100 mm
inner mattress fit dimensions	1530 x 2030 mm
headboard height from floor	1100 mm
tapered solid wood leg height	254 mm
floor to side rail bottom clearance	231 mm
headboard panel thickness	150 mm
side rail thickness (wood trim + upholstery)	70 mm
wood support slat thickness	18 mm
slat spacing	79 mm
integrated floating side shelf dimensions	300 x 300 x 20 mm
recommended mattress thickness	254 mm
center support rail width	90 mm
number of support slats	14
floor to top of slat platform height	380 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static weight capacity	360 kg
product net weight	73 kg
under-bed storage clearance height	231 mm
mattress ventilation airflow	30% open slat area
seam stitch durability	10000 double rubs
structural joint cycle rating	10000 load cycles
shelf static load capacity	5 kg
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

headboard central panel	Woven taupe polyester fabric over high-density foam padding
headboard wings and side rails	Smooth matte taupe linen-look polyester upholstery over padded substrate
frame and rail wood components	Walnut-stained solid rubberwood with veneered MDF trim
corner support legs	Solid walnut-stained tapered rubberwood with splayed angle
mattress support slats	Solid pine wood slats mounted on cross-braced frame
inner support frame	Powder-coated steel cross rails with 3 center support legs
headboard padding foam	30kg/m³ high-density polyurethane foam, 50mm thickness
upholstery seam construction	Reinforced polyester thread with 8mm stitch pitch
integrated side shelf	Walnut-stained engineered wood with matte finish
hardware connectors	Zinc-plated steel bolts, dowels and lock nuts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

mattress support system	Fixed wood slat platform eliminates need for separate box spring
assembly requirement	Knock-down assembly with included hardware and illustrated instructions
integrated side shelf	Fixed floating shelf mounted behind right headboard side for bedside items
under-bed access	231mm clearance allows cleaning access and low-profile storage bins
center support design	Three additional center support legs prevent sagging across mattress width
noise reduction design	Felt slat pads and tight bolted joints minimize squeaking during use
mattress compatibility	Fits all standard Queen-size innerspring, memory foam and hybrid mattresses
finish maintenance	Stain-resistant woven upholstery allows spot cleaning with mild detergent
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

primary residential use	Master or guest bedrooms in contemporary, mid-century modern or minimalist homes
space requirement	Recommended for rooms minimum 3000mm x 3300mm to allow bedside access on both sides
target user group	Adult users seeking streamlined, low-profile bedroom furniture without bulky footboards
bedding recommendation	Pairs with 250 mm thick mattresses for balanced low-profile look
style pairing	Coordinates with walnut wood case goods and neutral-tone soft furnishings
accessory use	Integrated side shelf eliminates need for separate nightstand on the shelf side
durability suitability	Rated for daily residential use with 5-year expected structural service life

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2005	Domestic furniture - Seating - Determination of stability, applicable for frame stability
EN 13986:2004	Wood-based panels for use in construction - Performance specifications

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for wood frame durability
GB 18584-2001	Limit of harmful substances in wood furniture, applicable for formaldehyde emission limits
GB/T 1952.2-2011	General technical requirements for upholstered furniture mattresses, applicable for support surface
GB/T 22800-2009	Upholstered furniture fabric performance requirements, applicable for upholstery wear resistance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for wood frame durability;
2. GB 18584-2001: Limit of harmful substances in wood furniture, applicable for formaldehyde emission limits;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture mattresses, applicable for support surface;
4. GB/T 22800-2009: Upholstered furniture fabric performance requirements, applicable for upholstery wear resistance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-WH-2030-Q

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-WH-2030-Q

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-WH-2030-QOpen Export Tool

Quick Actions

Post an RFQ

Product Description

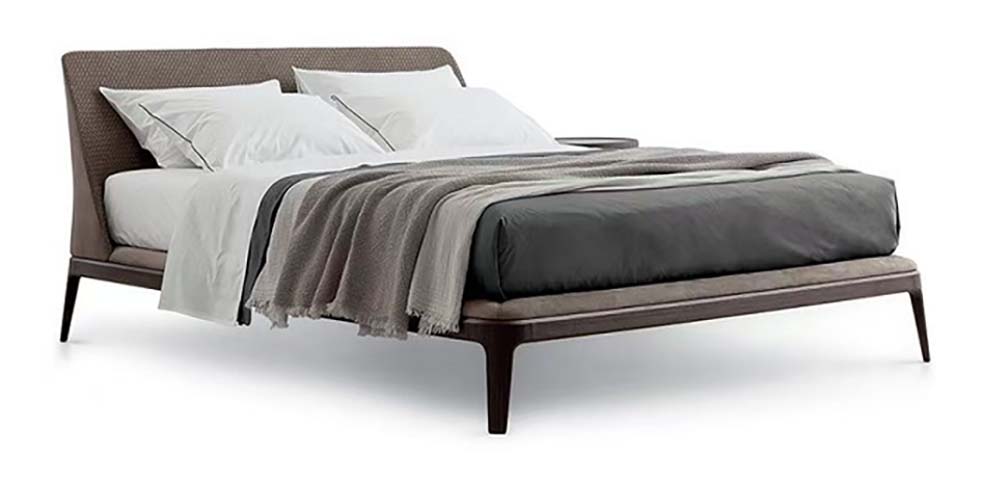

The Modern Woven-Headboard Upholstered Platform Bed with Integrated Side Shelf (model UPB-WH-2030-Q) features a streamlined, low-profile contemporary silhouette anchored by a thick, padded headboard with a central woven taupe polyester panel flanked by smooth matte taupe linen-look upholstered wings, paired with splayed, tapered solid rubberwood legs finished in a warm walnut stain. A fixed floating engineered wood shelf, finished to match the walnut wood components, sits recessed behind the right headboard wing, creating a built-in surface that removes the need for a separate nightstand on that side of the bed. The frame includes matching walnut-stained solid rubberwood rails, a powder-coated steel inner support structure with three additional center support legs, and solid pine wood slats mounted to a cross-braced base; felt pads on each slat and tight bolted connections reduce operational noise during use. The headboard uses 50mm thick high-density polyurethane foam for soft, supportive padding, with reinforced polyester thread stitched at a consistent pitch for durable seam construction. The fixed wood slat platform delivers 30% open slat area for consistent mattress ventilation, and removes the requirement for a separate box spring; the bed supports a total static weight of 360kg, while the integrated side shelf holds up to 5kg of bedside items. The 231mm clearance under the side rails allows easy access for floor cleaning, and accommodates low-profile under-bed storage bins. This bed is sized to fit all standard Queen-size innerspring, memory foam, and hybrid mattresses, and pairs best with 250mm thick mattresses for a cohesive balanced aesthetic. It is ideally suited for master or guest bedrooms in contemporary, mid-century modern, or minimalist residential spaces, designed for rooms sized to allow adequate bedside access on both sides, and coordinates seamlessly with walnut wood case goods and neutral-tone soft furnishings. For procurement, note that the unit ships as a knock-down assembly with all required hardware and illustrated instructions included, with a reference assembly time of 40 minutes per set; it arrives across multiple cartons, so delivery access should be confirmed prior to purchase. The product is unbranded, and targeted to adult users seeking functional, uncluttered bedroom furniture without bulky footboards.

Modern Woven-Headboard Upholstered Platform Bed with Integrated Side Shelf Specifications
