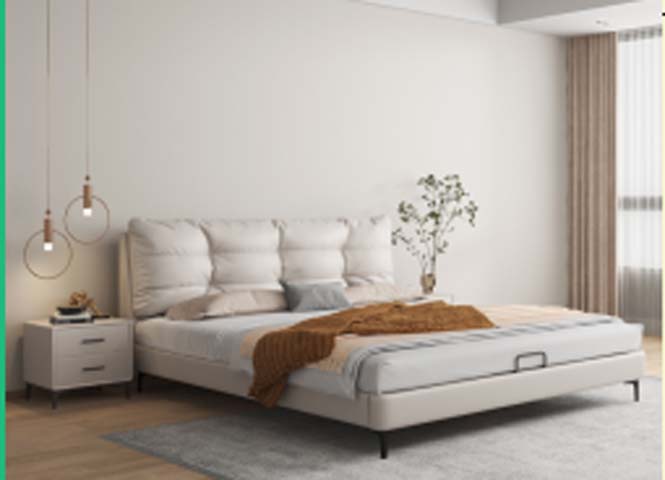

Product supplierOff-White Upholstered Lift Storage Bed with 4-Segment Pillow Headboard, Off-white stain-resistant performance fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1900 × 2250 × 1250 mm | |
|---|---|---|
| Overall footprint | 1900 x 2250 x 1250 mm | |
| Compatible mattress size | 1800 x 2000 mm | |
| Headboard height from floor | 1250 mm | |
| Sleeping surface height from floor | 400 mm | |
| Underbed clearance below side rail | 150 mm | |
| Headboard cushion thickness | 220 mm | |
| Footboard height from floor | 380 mm | |
| Slat width | 140 mm | |
| Slat thickness | 20 mm | |
| Slat spacing | 70 mm | |
| Metal leg diameter | 30 mm | |
| Lift storage compartment depth | 280 mm | |
| Side Rail Thickness | 40 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 385 kg | |
|---|---|---|
| Underbed storage volume | 0.8 m³ | |
| Recommended mattress thickness | 300 mm | |
| Net weight (frame only) | 85 kg | |
| Center support beam count | 3 | |
| Fabric abrasion resistance | 30000 cycles | |
| Foam density (headboard) | 35 kg/m³ | |
| Foam rebound rate | 60% | |
| Main structure warranty | 5 years | |
| Bed Static Load Reference | 400 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard upholstery | Off-white stain-resistant performance fabric | |
|---|---|---|
| Headboard padding | High-resilience polyurethane foam | |
| Inner frame | E0-grade engineered wood with steel reinforcement | |
| Support slats | Solid pine wood slats | |
| Support legs | Black powder-coated carbon steel | |
| Lift mechanism | Black powder-coated steel gas lift assembly | |
| Footboard panel | Padded engineered wood wrapped in matching upholstery | |
| Hardware connectors | Zinc-plated steel bolts and brackets | |
| Edge trim | Precision stitched fabric binding | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Underbed storage access | Pneumatic lift-up mattress platform | |
|---|---|---|
| Gas lift support | Dual 800N gas struts | |
| Headboard back support | 4 independent segmented padded cushions | |
| Mattress retention | Raised side rail lips | |
| Noise reduction | Anti-slip slat padding | |
| Floor protection | Plastic glide feet on all legs | |
| Assembly design | Knock-down pre-drilled components | |
| No box spring requirement | Slat platform provides full mattress support | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary use case | Master bedroom double-occupancy sleeping | |
|---|---|---|
| Design style fit | Modern minimalist, cream-style, light-neutral interiors | |
| Additional function | Upright seated relaxation in bed | |
| Space suitability | Small to medium bedrooms | |
| Storage benefit | Seasonal bedding and clothing storage | |
| Recommended pairing | Low-profile matching upholstered nightstands |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture – Beds and mattresses – Safety requirements and test methods | |
|---|---|---|
| EN 1022:2005 | Domestic furniture – Seating and beds – Determination of stability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to inner wood frame | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture | |
| GB/T 1952.2-2011 | General technical requirements for upholstered furniture mattresses and bed frames |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner wood frame; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture; 3. GB/T 1952.2-2011: General technical requirements for upholstered furniture mattresses and bed frames; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
