PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1930 × 2230 × 1470 mm
Mattress compatibility size	1800 x 2000 mm
Headboard height	1470 mm
Footboard height	450 mm
Under-bed clearance height	150 mm
Slat count	14
Slat width	70 mm
Slat thickness	20 mm
Slat spacing	80 mm
Center support beam count	3
Side rail height	350 mm
Leg diameter	30 mm
Headboard wing protrusion depth	120 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	454 kg
Recommended mattress thickness	250 mm
Net weight	85 kg
Recommended user count	2
Slat static load per slat	50 kg
Anti-friction noise rating	≤30 dB
Warranty period	10 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard/footboard outer upholstery	Dark grey matte performance fabric
Headboard inner panel upholstery	Off-white smooth performance fabric
Headboard/footboard padding	40mm high-density polyurethane foam
Internal frame	Solid pine + 18mm plywood
Support slats	Solid poplar wood slats
Legs and edge trim	Gold PVD plated iron metal
Connection hardware	Zinc-plated steel brackets and bolts
Anti-slip mat	EVA foam strips
Seam stitching	High-strength polyester thread, 8 stitches per inch
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Slatted platform base
Headboard function	Channel-tufted padded wingback
Assembly method	Knock-down bolt-together assembly
Under-bed storage	150mm open clearance
Mattress retention	Raised side rail lips
Noise reduction	EVA anti-friction gaskets
Leveling adjustment	Plastic foot pads on leg bases
Configuration option	Compatible with matching 2-drawer nightstands
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use space	Residential master bedroom
Secondary use space	High-end hotel guest suites
Interior style fit	Modern light luxury / neoclassical interiors
Recommended pairing	Two matching 2-drawer nightstands
User group	Adult homeowners seeking premium upholstered bedroom furniture
Bedding compatibility	Works with 250mm thick spring, memory foam or hybrid mattresses
Flooring compatibility	Safe for hardwood, tile and carpet floors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture beds and mattresses safety requirements, applicable to structural safety
EN 1022:2018	Domestic furniture seating stability, applies to edge load stability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood frame inspection
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde testing
GB/T 1952.2-2011	Technical requirements for upholstered furniture mattresses, applicable to base fit
GB/T 22807-2019	Leather/fabric upholstered furniture performance test, applicable to upholstery

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame inspection;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde testing;
3. GB/T 1952.2-2011: Technical requirements for upholstered furniture mattresses, applicable to base fit;
4. GB/T 22807-2019: Leather/fabric upholstered furniture performance test, applicable to upholstery;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-WG1800-GW-GLD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-WG1800-GW-GLD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-WG1800-GW-GLDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

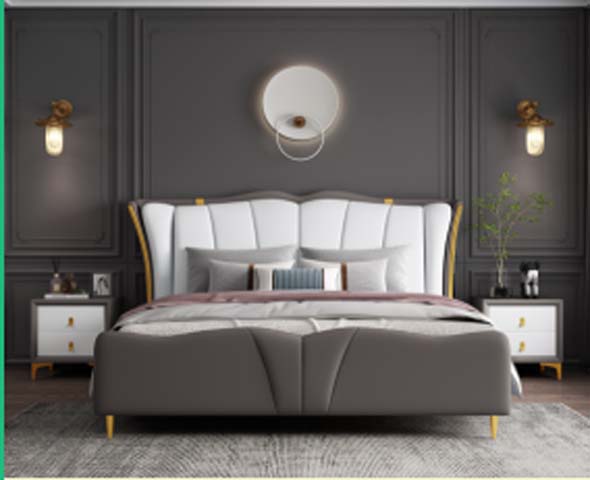

The Two-Tone Channel-Tufted Wingback Upholstered Platform Bed, model UPB-WG1800-GW-GLD, is an unbranded upholstered platform bed designed for premium residential and select hospitality settings. Its visual design centers on a tall, structured wingback headboard with precise channel tufting, finished in a coordinated two-tone fabric scheme: dark grey matte performance fabric covers the outer headboard and footboard panels, while a soft off-white smooth performance fabric lines the inner headboard surface. Gold-plated metal trim traces the bed’s edges and forms its slender legs, creating a polished contrast that aligns with modern light luxury and neoclassical interior aesthetics. The design pairs a full-height headboard with a lower, streamlined footboard, with open under-bed space integrated into its base layout. The bed’s construction prioritizes durability and quiet, stable support. Its internal frame combines solid pine with plywood, reinforced with zinc-plated steel brackets and bolts for secure assembly. The headboard and footboard are padded with high-density polyurethane foam, upholstered with high-strength polyester stitching set to eight stitches per inch for long-wearing seam integrity. The platform base uses solid poplar wood slats for mattress support, with EVA foam strips and anti-friction gaskets positioned at key contact points to reduce movement-related noise. Leg bases include plastic leveling pads to accommodate uneven floor surfaces, while EVA anti-slip mats prevent unintended shifting. Functional design details support convenient daily use. The slatted platform base eliminates the need for a separate box spring, while raised side rail lips hold the mattress firmly in place to prevent slippage. The open under-bed clearance provides accessible space for low-profile storage. The bed uses a knock-down bolt-together assembly structure, with a reference assembly time of 40 minutes per set, shipped across multiple cartons for manageable transport. This bed is sized to fit a standard 1800 x 2000 mm mattress, with a recommended mattress thickness of 250 mm, compatible with spring, memory foam, and hybrid mattress styles. It is rated to support two adult users, making it ideal for residential master bedrooms, as well as high-end hotel guest suites. It pairs seamlessly with two matching 2-drawer nightstands for a coordinated bedroom layout. For procurement, buyers should note the product ships in multiple cartons, account for the product’s net and packaged gross weight for delivery and installation planning, and reference the 10-year warranty coverage for post-purchase support. The fixed slat dimensions and static load ratings ensure consistent support across the entire sleeping surface, with anti-friction properties delivering quiet performance for undisturbed rest.

Two-Tone Channel-Tufted Wingback Upholstered Platform Bed Specifications
