PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1850 × 2200 × 1180 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total bed net weight	95 kg
Maximum static weight capacity (sleepers + mattress)	500 kg
Under-bed storage load capacity	100 kg
Lift mechanism assisted opening force	15 kgf
Mattress platform slat static load rating	350 kg
Recommended user count	2 adults
Lift mechanism cycle life	10000 open/close cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard outer border	Dark gray woven fabric upholstery
Headboard central panel	Light off-white woven fabric upholstery
Headboard padding	35mm thick 35kg/m³ high-density polyurethane foam
Internal bed frame	18mm thick E1 grade engineered wood
Support legs	1.2mm thick powder-coated black carbon steel
Lift mechanism hardware	1.5mm thick cold-rolled steel with pneumatic struts
Mattress support slats	12mm thick laminated bentwood slats
Side rails and foot rail	Dark gray woven fabric upholstery over engineered wood
Storage compartment base panel	9mm thick MDF base
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Pneumatic lift-up under-bed storage	Foot-side mounted handle activates gas struts to lift mattress platform for full under-bed access
Channel-tufted headboard back support	Vertically segmented padded headboard provides ergonomic lumbar and back support for upright sitting
Low-profile footboard entry	Low foot rail eliminates leg obstruction when entering/exiting from foot of bed
Slatted mattress platform	Evenly spaced bentwood slats provide ventilation and uniform support without separate box spring
Floor-protecting leg feet	Each metal leg fitted with non-slip plastic glide to prevent hardwood floor scratching
Fixed-position headboard	Headboard rigidly attached to bed frame with no tilt adjustment for stable back support
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary residential bedroom	Master bedrooms in apartments or homes, sized for king mattress double occupancy
Small-space urban dwellings	Integrated under-bed storage eliminates need for separate bulky dressers or under-bed bins
Modern contemporary interior schemes	Two-tone channel-tufted design matches neutral, minimalist, or mid-century modern decor
Guest room furnishing	Neutral color palette and storage function suitable for occasional guest use with spare linen storage
Hard flooring installation	Floor glides on legs protect hardwood, laminate, or tile floors from scuff damage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses – Safety requirements and test methods
EN 1022:2018	Domestic furniture – Seating – Determination of stability, applicable to seated use on headboard
EN 13759:2002	Domestic furniture – Storage units – Test methods for strength and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural frame and wood components
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood furniture, required for indoor residential use
GB/T 1952.2-2011	General technical requirements for upholstered furniture mattresses, applicable to compatible mattress fit

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural frame and wood components;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood furniture, required for indoor residential use;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture mattresses, applicable to compatible mattress fit;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BED-UPH-STG-1800Q

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BED-UPH-STG-1800Q

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BED-UPH-STG-1800QOpen Export Tool

Quick Actions

Post an RFQ

Product Description

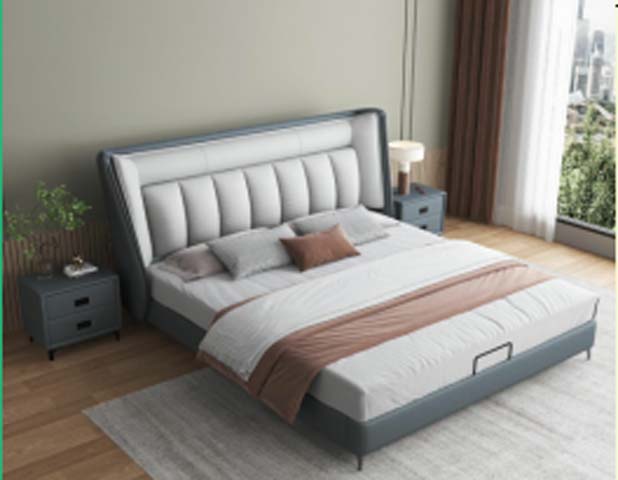

This Two-Tone Upholstered Storage Platform Bed with Channel-Tufted Headboard carries a clean, contemporary silhouette anchored by a striking two-tone fabric design. Its headboard features a dark gray woven fabric outer border framing a light off-white woven fabric central panel, finished with vertical channel tufting for a structured, tailored appearance. The low-profile foot rail sits flush with the side rails, which are upholstered in matching dark gray woven fabric, creating an unobtrusive, streamlined layout that balances soft upholstered texture with crisp modern lines. Built for lasting residential use, the bed’s core structure relies on an engineered wood frame, supported by powder-coated black carbon steel legs fitted with non-slip plastic glides to protect hard flooring surfaces. The headboard is padded with high-density polyurethane foam for cushioned support, while the mattress platform uses evenly spaced laminated bentwood slats to deliver consistent support and airflow without requiring a separate box spring. Its pneumatic lift mechanism is constructed from cold-rolled steel with gas struts, operating via a foot-side mounted handle to raise the entire mattress platform and reveal the full under-bed storage compartment, which sits on an MDF base panel. The fixed-position headboard attaches rigidly to the frame for stable back support, with no tilt adjustment to maintain structural rigidity over time. Practical, user-focused features define the bed’s daily functionality. The vertically segmented channel-tufted headboard provides ergonomic lumbar and back support for upright sitting, ideal for reading or relaxing in bed, while the low foot rail removes leg obstruction for easy entry and exit from the foot of the bed. The lift-up under-bed storage offers enclosed, easily accessible space to stow spare linens, off-season clothing, or personal items, eliminating the need for separate bulky storage furniture. The slatted platform promotes air circulation around the mattress to reduce moisture buildup, and the floor glides prevent scuffs and scratches on hardwood, laminate, or tile surfaces. The bed is sized to accommodate two adult sleepers, with a weight capacity that supports both sleepers and a standard king mattress. This bed fits seamlessly across a range of residential settings. It serves as a functional centerpiece for master bedrooms in apartments or family homes, aligns perfectly with small-space urban dwellings where integrated storage reduces furniture clutter, complements modern, minimalist, or mid-century modern interior schemes through its neutral two-tone palette, and works well for guest rooms where enclosed storage can hold spare bedding and guest supplies. For procurement planning, note that the product ships unbranded across multiple cartons per set, with a straightforward assembly process. Buyers should account for the total packaged weight and volume when coordinating delivery and installation, and confirm on-site handling capacity to move cartons to the intended installation space. Main joints are engineered to support controlled disassembly and reassembly for moves or room reconfigurations, and the lift mechanism is rated for consistent long-term use with regular operation. No additional box spring is required for installation, reducing extra procurement costs for supporting mattress foundations.

Two-Tone Upholstered Storage Platform Bed with Channel-Tufted Headboard Specifications
