PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1870 × 2250 × 1210 mm
mattress compatibility	1800 x 2000 mm
headboard thickness	180 mm
support slat height from floor	300 mm
underbed clearance	150 mm
bed leg height	150 mm
side rail height	300 mm
mattress thickness compatibility	300 mm
pull tab dimension	80 mm
slat width	70 mm
slat spacing	75 mm
center support beam count	1
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static load capacity	450 kg
net product weight	52 kg
recommended user count	2
slat static load per slat	35 kg
leg static load per leg	115 kg
upholstery abrasion resistance	30000 cycles
foam compression set resistance	10%
warranty period	20 years
available color options	1
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

headboard upholstery	Stain-resistant light blue tech fabric
headboard padding	35mm high-density polyurethane foam
bed frame tubing	1.2mm thick matte black carbon steel
bed legs	20mm diameter solid matte black steel
support slats	12mm thick laminated birch plywood
center support beam	1.5mm thick rectangular carbon steel tube
foot rail pull tab	Black powder-coated steel loop
hardware connectors	Zinc-plated steel bolts and barrel nuts
frame finish	Matte black electrostatic powder coat
seam stitch detail	6 stitches per inch matching thread
headboard frame core	15mm thick MDF panel
floor protection pads	5mm thick non-slip rubber pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

slat support system	Fixed wooden slat platform eliminates box spring requirement
headboard design	Split two-section fixed tilt padded headboard
underbed access	150mm open clearance allows robot vacuum and cleaning access
knock-down assembly	Bolt-together frame assembly with included hex key
mattress retention	Raised side and foot rails prevent mattress sliding
wall alignment	Flat headboard rear edge sits flush against bedroom walls
nightstand compatibility	Matching low-profile nightstands align with headboard height
frame stability	6-point leg support eliminates wobble on level hard floors
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

primary application space	Residential master bedrooms
secondary application space	Modern boutique hotel guest rooms
target design style	Italian minimalist / Nordic modern interiors
mattress pairing recommendation	300 mm thick all-foam or hybrid mattresses
floor type compatibility	Hardwood, tile, and low-pile carpeted floors
surrounding furniture matching	Pair with low-profile black metal 1-drawer nightstands
room size requirement	Minimum 10 sq.m. bedroom floor area

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Applicable for domestic bed strength and durability requirements
EN 1022:2005	Applicable for furniture stability testing for domestic beds

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements for metal furniture
GB 18584-2001	Applicable for formaldehyde emission limits for wooden furniture components
GB/T 1952.2-2011	Applicable for upholstered furniture mattress support performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements for metal furniture;
2. GB 18584-2001: Applicable for formaldehyde emission limits for wooden furniture components;
3. GB/T 1952.2-2011: Applicable for upholstered furniture mattress support performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-LB-MF-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-LB-MF-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-LB-MF-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

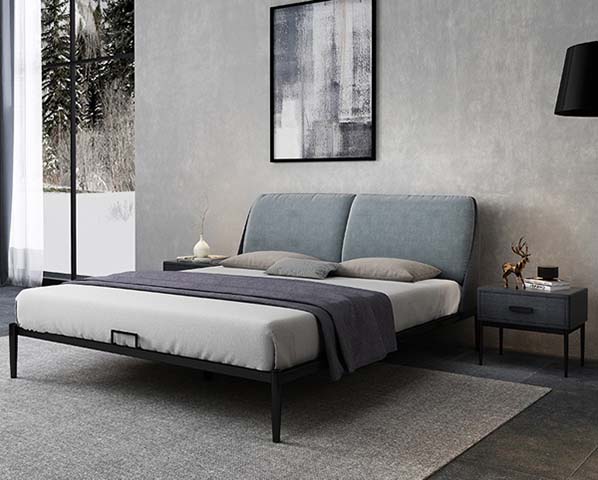

This low-profile upholstered platform bed balances sleek modern aesthetics with robust, user-centric construction for both residential and select commercial settings. Its visual identity is defined by a split two-section fixed-tilt padded headboard upholstered in soft light blue stain-resistant tech fabric, paired with a streamlined matte black metal frame that adheres to Italian minimalist and Nordic modern design principles. The flat rear edge of the headboard sits flush against walls, while its aligned height works seamlessly with matching low-profile black metal nightstands to create a cohesive, uncluttered bedroom layout. The open underbed gap sits level with the bed leg height, supporting easy cleaning access, and raised side and foot rails create a clean, contained visual line around the mattress area.
Built for lasting daily use, the frame is constructed from matte black electrostatic powder-coated carbon steel, with solid steel legs, a reinforced rectangular carbon steel center support beam, and laminated birch plywood slats that form a fixed platform. The headboard is padded with high-density polyurethane foam for comfortable back support when sitting upright, and all hardware connections use zinc-plated steel bolts and barrel nuts for secure, stable joints. The tech fabric upholstery delivers durable wear resistance, while the high-density foam retains its shape over extended use. The fixed slat platform removes the need for a separate box spring, cutting down on additional purchase requirements and setup complexity.
Functional features support straightforward, low-fuss daily use: the open underbed clearance accommodates robot vacuums and routine cleaning access, raised side and foot rails prevent mattress slippage, and the bolt-together assembly uses an included hex key for efficient setup. The bed supports two users, and is compatible with hardwood, tile, and low-pile carpeted flooring. It is ideally suited for residential master bedrooms, and works equally well in modern boutique hotel guest rooms, paired best with all-foam or hybrid mattresses of the maximum compatible thickness, alongside coordinating low-profile single-drawer black metal nightstands.
For procurement planning, note the product ships across multiple cartons per set, with a straightforward assembly timeline. The unbranded model offers consistent, style-aligned furnishing without premium brand markup, fitting both whole-home residential furnishing projects and small-scale boutique hospitality fit-outs that prioritize clean, contemporary design and reliable everyday function.

Light Blue Split Upholstered Low-Profile Platform Bed with Black Metal Frame Specifications
