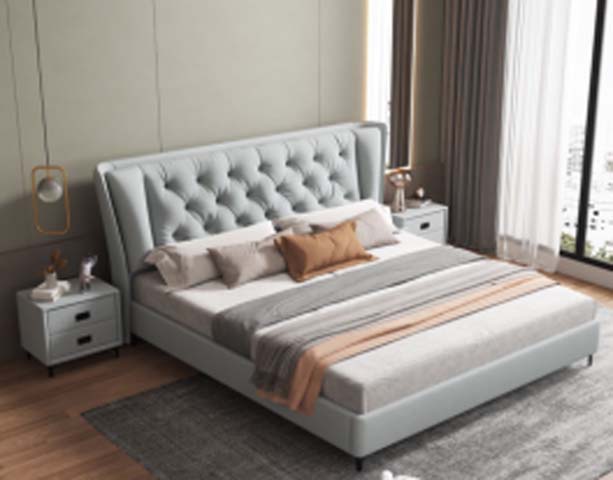

Product supplierLight Blue Button-Tufted Wingback Upholstered Platform Bed, Woven polyester blend fabric, 300g/sm weight
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1930 × 2269 × 1346 mm | |
|---|---|---|
| Headboard height from floor | 1346 mm | |
| Platform side rail height from floor | 356 mm | |
| Slat support surface height from floor | 305 mm | |
| Headboard wing forward projection | 102 mm | |
| Clearance under bed frame to floor | 152 mm | |
| Recommended maximum mattress thickness | 381 mm | |
| Headboard tufted panel width | 1676 mm | |
| Side rail thickness (upholstered) | 76 mm | |
| Support leg diameter | 20 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity (mattress + users) | 499 kg | |
|---|---|---|
| Product net weight | 59.1 kg | |
| Support slat quantity | 13 pieces | |
| Center support leg quantity | 5 pieces | |
| Slat thickness | 25 mm | |
| Slat spacing between adjacent slats | 70 mm | |
| Headboard foam padding thickness | 76 mm | |
| Recommended maximum user count | 2 adults | |
| Limited warranty period | 1 year | |
| Bed Static Load Reference | 400 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery fabric | Woven polyester blend fabric, 300g/sm weight | |
|---|---|---|
| Headboard padding fill | High-resilience polyurethane foam, 32kg/m³ density | |
| Internal bed frame | Solid pine and engineered plywood frame, 30mm member thickness | |
| Support slats | Laminated birch plywood slats, curved profile for flex | |
| External support legs | Powder-coated dark matte black carbon steel legs | |
| Tufting hardware | Fabric-covered button tufts with internal steel securing washers | |
| Side rail upholstery backing | Medium-density fiberboard (MDF) substrate, 12mm thickness | |
| Fastening hardware | Zinc-plated steel bolts, barrel nuts, and lock washers | |
| Seam stitch specification | 10 stitches per 100mm seam length, reinforced stress points | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mattress support system | Wood slat platform with center beam, no box spring required | |
|---|---|---|
| Adjustable base compatibility | Supports adjustable bed bases when slat system is removed | |
| Assembly structure | Knockdown construction with bolted frame joints for home assembly | |
| Headboard function | Padded wingback design provides back support for seated reading in bed | |
| Noise reduction design | Velcro-fastened slats and reinforced center supports minimize joint squeak | |
| Mattress retention design | Raised side rails and headboard lip prevent mattress sliding during use | |
| Floor protection | Plastic end caps on metal legs prevent scuffing on hard flooring | |
| Fabric care | Spot clean only with mild upholstery detergent, no machine washing | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Residential master or guest bedrooms with modern light neutral decor | |
|---|---|---|
| Recommended room minimum size | 3.0m x 3.6m for clearance around bed access and nightstands | |
| Target user group | Adult users seeking soft upholstered bedroom furniture with tufted traditional-modern styling | |
| Complementary furniture pairing | Low-profile upholstered or painted two-drawer nightstands matching the light blue frame color | |
| Floor surface compatibility | Suitable for hardwood, luxury vinyl, carpet, and area rug installations | |
| Bedding style recommendation | Layered neutral linen bedding with warm camel/caramel accent throws and pillows | |
| Design style alignment | Works with modern, transitional, and soft contemporary interior design schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture - Beds and mattresses - Safety requirements and test methods | |
|---|---|---|
| EN 12520:2015 | Furniture - Strength, durability and safety - Requirements for domestic seating |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood frame components | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission testing | |
| GB/T 1952.2-2011 | Technical requirements for upholstered furniture, spring and soft mattress support structures | |
| GB 20400-2006 | Limit of harmful substances in leather and fur, applicable if upholstery contains coated fabrics |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame components; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission testing; 3. GB/T 1952.2-2011: Technical requirements for upholstered furniture, spring and soft mattress support structures; 4. GB 20400-2006: Limit of harmful substances in leather and fur, applicable if upholstery contains coated fabrics; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
