PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2266 × 2337 × 879 mm
Mattress support platform height	300 mm
Headboard total height from floor	879 mm
Individual headboard panel width	1120 mm
Headboard padding thickness	180 mm
Side rail width (upholstered surround)	200 mm
Foot rail height from floor	350 mm
Recommended mattress thickness	406 mm
Clearance under bed frame	10 mm
Slat support length	2030 mm
Slat support width	1930 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	499 kg
Net product weight (King size)	76.4 kg
Recommended maximum user count	2 adults
Slat static load per slat	60 kg
Fabric abrasion resistance	50000 double rubs
Foam indentation load deflection (ILD)	32
Foam density (headboard and rails)	35 kg/m³
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery fabric	Mauve matte woven performance fabric
Internal frame structure	Solid pine and engineered plywood
Headboard padding core	High-resilience polyurethane foam
Mattress support slats	Solid bentwood slats
Slat support rails	Reinforced engineered wood beams
Connecting hardware	Zinc-plated steel bolts and lock nuts
Bottom edge glides	Black non-marking plastic floor glides
Seam stitching	High-tensile polyester thread with matching edge piping
Joint noise dampening	EVA foam strips between wood and metal joints
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system function	Wood slat platform eliminates requirement for separate box spring
Assembly structure	Knock-down bolt-together assembly for 2-person setup
Headboard design function	Two independent overstuffed panels provide cushioned back support for sitting in bed
Surround rail function	Full wrap-around padded rails prevent impact injury and hold mattress securely in place
Mattress retention function	Recessed platform ledge prevents mattress shifting during use
Cleaning access function	10mm under-bed gap allows regular vacuum cleaning beneath frame
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential primary bedroom application	Suitable for king size main bedrooms seeking soft contemporary aesthetic
Modern minimalist interior fit	Pairs with neutral or muted color palettes for uncluttered bedroom styling
User group suitability	Ideal for adult users preferring low bed height without under-bed storage
Configuration recommendation	Pair with 400 mm thick memory foam or hybrid mattress
Maintenance requirement alignment	Suitable for low-maintenance households, fabric requires only regular vacuuming and spot cleaning

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Applicable for domestic furniture beds safety and strength testing requirements
EN 1021-1:2014	Applicable for upholstered furniture ignitability by smouldering cigarette test

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements for wooden furniture, frame strength testing
GB 18584-2001	Applicable for indoor decorating material limit of harmful substances in wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements for wooden furniture, frame strength testing;
2. GB 18584-2001: Applicable for indoor decorating material limit of harmful substances in wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-LP-SH-MAUVE-K

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-LP-SH-MAUVE-K

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-LP-SH-MAUVE-KOpen Export Tool

Quick Actions

Post an RFQ

Product Description

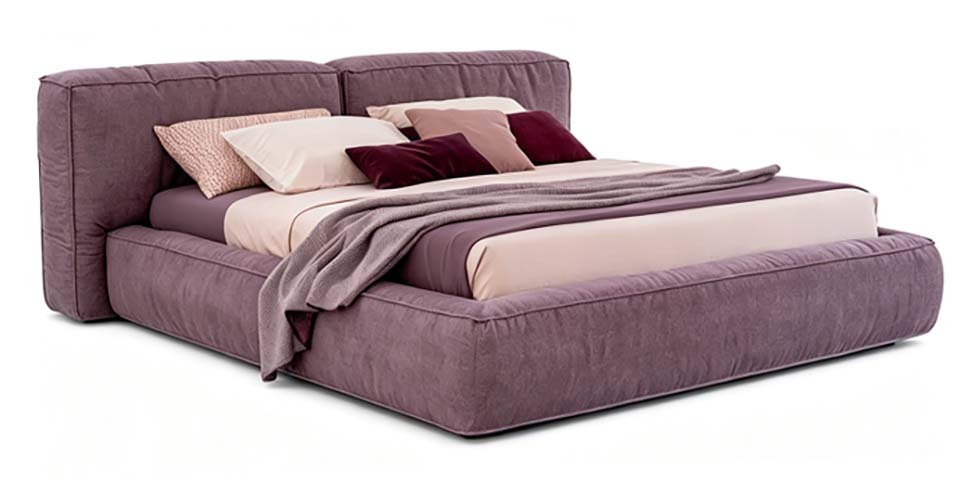

The Mauve Fabric Upholstered Low-Profile Split Headboard Platform Bed, model UPB-LP-SH-MAUVE-K, is an unbranded upholstered platform bed sized for king mattresses, designed with a soft contemporary aesthetic that aligns with modern minimalist interiors. Visually, it features a low-slung profile anchored by a split headboard composed of two independent, overstuffed panels, each wrapped in matte mauve woven performance fabric finished with matching edge piping. The full wrap-around padded rails create a cohesive, streamlined silhouette that pairs seamlessly with neutral or muted color palettes for uncluttered bedroom styling. Its construction balances durability and comfort: a core frame of solid pine and engineered plywood is reinforced with zinc-plated steel bolts and lock nuts, with EVA foam strips at wood-metal joints to reduce operational noise. High-resilience polyurethane foam, at a density of 35 kg/m³ and 32 ILD, pads the headboard and rails, with 180mm of padding on the headboard for cushioned support. The mattress support system uses solid bentwood slats mounted on reinforced engineered wood beams, while black non-marking plastic glides protect floor surfaces. The outer fabric delivers 50000 double rubs of abrasion resistance, with seams stitched from high-tensile polyester thread for long-term wear. Functionally, the wood slat platform removes the need for a separate box spring, supporting a total static weight of 499 kg with 60 kg of static load per individual slat. The split headboard panels provide soft back support for sitting upright in bed, while the padded full-wrap rails reduce impact injury risk and hold the mattress securely, aided by a recessed platform ledge that prevents shifting during use. A 10mm under-bed gap allows regular vacuum access, and non-marking glides prevent floor scuffing. The knock-down bolt-together design supports two-person assembly in 40 minutes, with main joints rated to hold up through 5 controlled assembly cycles, and no under-bed storage to maintain the low-profile silhouette. This bed is ideal for residential king-size primary bedrooms, particularly for households seeking low-maintenance furnishings, as the fabric only requires regular vacuuming and spot cleaning. It is sized to accommodate two adult users, with a recommended mattress thickness of 406 mm. For procurement, note that king size units ship as one set across two cartons, with a total packaged gross weight of 130 kg and total packaging volume of 0.9 cubic meters, requiring coordinated delivery access for large parcels, and plan for two-person setup during installation.

Mauve Fabric Upholstered Low-Profile Split Headboard Platform Bed Specifications
