PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1651 × 2210 × 1346 mm
Compatible mattress size	1530 x 2030 mm (Queen)
Headboard total height	1346 mm
Floor to top of side rail height	318 mm
Under-bed ground clearance	160 mm
Side rail upholstery thickness	76 mm
Headboard padding thickness	102 mm
Slat width	70 mm
Slat spacing gap	76 mm
Center support beam count	3
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	363 kg
Recommended mattress thickness	305 mm
Net product weight	82 kg
Number of supported sleepers	2
Fabric abrasion resistance	30000 double rubs
Foam padding density (headboard)	32 kg/m³
Squeak-free operation cycle rating	10000 motion cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upper headboard panel	Mint green woven polyester fabric, 102mm polyurethane foam padding
Lower headboard/side/foot rails	Light grey woven polyester fabric, padded foam core
Internal frame structure	18mm plywood + 1.2mm steel reinforcement bars
Support slats	12mm solid birch wood slats, noise-dampening felt strips
Bed support legs	20mm diameter black powder-coated steel legs, plastic floor glides
Hardware connectors	Zinc-plated steel bolts, lock nuts, and dowel joints
Upholstery backing	Non-woven polypropylene fabric dust cover under frame
Seam construction	Stitched 8mm seam pitch with matching color thread
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Wood slat platform, no box spring required for mattress support
Mattress fit	Adjustable side rail slots accommodate 305 mm thick mattresses
Assembly requirement	Tool-included bolt-together assembly of headboard, rails, slats, and legs
Edge support	Padded upholstered rails provide soft impact protection around sleeping surface
Airflow design	Gapped slat construction allows under-mattress air circulation to reduce moisture
Floor protection	Non-marking plastic glides on leg bases prevent hard floor scratching
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use space	Residential master or guest bedrooms of 10sqm or larger
Target user group	Adult couples or individual users seeking modern soft-upholstered bedroom furniture
Recommended surrounding configuration	Pair with matching 2-drawer nightstands for coordinated bedroom storage
Style compatibility	Fits contemporary, light luxury, and minimalist interior design schemes
Placement requirement	Position against flat wall with 600mm clearance on sides and foot for easy access
Floor type suitability	Works on hardwood, tile, and low-pile carpeted floors with integrated glides

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 747-1:2015	Applicable for domestic bed safety requirements and test methods
EN 1022:2018	Applicable for domestic furniture seating and bed stability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 18580-2017	Applicable for formaldehyde emission limits for wood-based panel components
GB/T 3324-2017	Applicable for general technical requirements for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB 18580-2017: Applicable for formaldehyde emission limits for wood-based panel components;
2. GB/T 3324-2017: Applicable for general technical requirements for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-Q-2TMG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-Q-2TMG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-Q-2TMG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

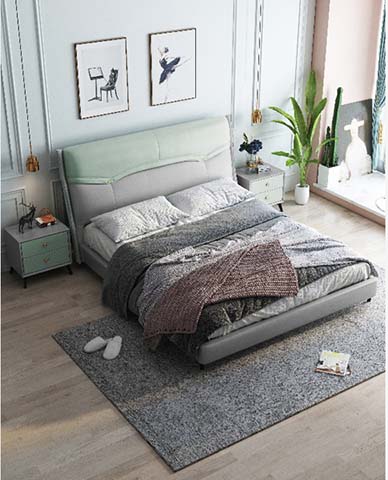

The Two-Tone Mint and Light Grey Upholstered Queen Platform Bed (model UPB-Q-2TMG-001) brings a polished, soft-edged modern presence to residential bedroom spaces, with a deliberate two-tone visual design that balances soft color contrast. The upper section of its tall headboard is finished in mint green woven polyester, while the lower headboard, side rails, and foot rail are covered in light grey woven polyester, all tailored with 8mm stitched seams in matching color thread for a seamless, refined look. Its low-profile silhouette sits on slender black powder-coated steel legs, creating a clean, streamlined layout that aligns with contemporary, light luxury, and minimalist interior design schemes. Built for durable, quiet daily use, the bed features an internal frame of 18mm plywood reinforced with 1.2mm steel bars, secured with zinc-plated steel bolts, lock nuts, and dowel joints rated to support 5 controlled assembly cycles. The support system uses solid birch wood slats lined with noise-dampening felt strips, paired with 102mm thick, 32kg/m³ density polyurethane foam padding on the headboard and foam-cored padding on all rails, all wrapped in soft woven polyester fabric rated for 30,000 double rubs of abrasion resistance. A non-woven polypropylene dust cover lines the underside of the frame, and 20mm diameter steel legs are fitted with non-marking plastic glides. The structure carries a 363kg total static weight capacity and a 10,000 motion cycle squeak-free operation rating. Functional design details eliminate the need for a separate box spring, as the gapped slat platform supports Queen-size mattresses directly, while adjustable side rail slots accommodate mattresses up to 305mm thick. Gaps between slats promote air circulation under the mattress to reduce moisture buildup, and padded rails offer soft impact protection around the sleeping surface. The glides prevent scratches on hardwood, tile, and low-pile carpet, and 160mm of under-bed clearance leaves open space below the frame. Assembly requires only the included hardware, with an 40-minute build time, and the bed ships in multiple cartons with a total packaged gross weight of 130kg per set. This bed is sized for residential master or guest bedrooms of 10sqm or larger, positioned against a flat wall with 600mm of clearance on the sides and foot for easy access. It is designed for adult couples or individual users seeking soft-upholstered modern bedroom furniture, and pairs seamlessly with matching two-drawer nightstands for coordinated storage. When procuring, note that the product is unbranded, confirm delivery access to accommodate the largest carton dimensions, and allocate appropriate assembly time or on-site support as needed.

Two-Tone Mint and Light Grey Upholstered Queen Platform Bed Specifications
