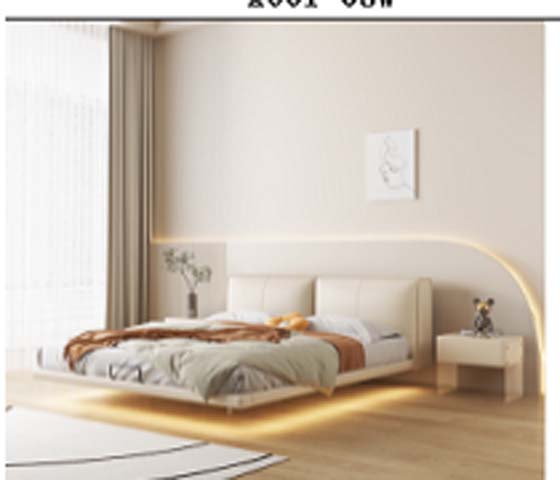

Name: Cream Upholstered Floating Queen Bed Frame with Under-Bed LED Lighting
Brand: Youwei
SKU: CQ6R0K

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1890 × 2180 × 1100 mm
Overall outer dimensions	1890 x 2180 x 1100 mm
Compatible mattress size	1800 x 2000 mm
Headboard height from floor	1100 mm
Headboard thickness	180 mm
Mattress support platform height	280 mm
Under-bed clearance	185 mm
Side rail thickness	30 mm
Headboard panel width	1850 mm
Recessed leg setback from edge	120 mm
LED strip mounting perimeter	7400 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	454 kg
Number of support legs	7
Slat count	28
Slat spacing	50 mm
Slat thickness	25 mm
Bed frame net weight	78 kg
Recommended maximum user weight	180 kg
LED operational lifespan	50000 hours
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery	Stain-resistant tech leather
Headboard filling	35kg/m³ high-resilience polyurethane foam
Internal frame structure	Kiln-dried solid pine + plywood
Mattress support slats	Solid poplar wood slats with anti-slip felt strips
Support legs	2mm thick powder-coated carbon steel
LED strip	2835 SMD warm white 3000K LED strip
Fastening hardware	Zinc-plated steel M8 bolts and barrel nuts
Side rail surface backing	Non-woven fabric dust cover
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Under-bed motion-activated LED lighting	Turns on automatically via PIR sensor within 3m detection range, auto-off after 30 seconds
No-box-spring mattress support	Closely spaced slats directly support all mattress types, no foundation required
Flush edge space-saving design	Frame fits tightly around mattress to reduce overall footprint for small master bedrooms
Knock-down flat-pack assembly	Two-person assembly with included hex key, aligned bolt holes for easy setup
Noise-damping slat design	Felt strips between slats and frame eliminate squeaking during movement
Floor protection design	Adjustable foot pads on all legs compensate for uneven floors and prevent scuffs
Wall-aligned headboard	Flat back panel sits flush against wall to eliminate gaps behind pillows
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Suitable for 18sqm modern cream, minimalist, or wabi-sabi style bedrooms
Guest bedroom	Space-saving flush design fits smaller rooms, welcoming soft aesthetic for visitors
Home staging for property sales	Neutral cream finish and floating illusion create high-end aspirational bedroom presentation
Users aged 16-65	Low platform height and stable support suit most adult users for daily sleeping
Coordinated bedroom set	Pairs with matching cream nightstands and dressers for a unified furniture look
Nighttime navigation	Motion-activated under-bed light provides soft illumination for late-night trips without overhead glare

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Applicable standard for domestic beds, test methods for strength and stability
EN 62471:2008	Applicable photobiological safety standard for LED lighting products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable to wood furniture general technical requirements for frame components
GB 7000.204-2008	Applicable safety standard for embedded LED lighting components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable to wood furniture general technical requirements for frame components;
2. GB 7000.204-2008: Applicable safety standard for embedded LED lighting components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FB-CRM-1800-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FB-CRM-1800-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FB-CRM-1800-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Youwei FB-CRM-1800-LED cream upholstered floating queen bed frame balances modern minimalist design with functional, user-centric details suited to a range of residential and light commercial settings. Its visual profile features clean, flush edges that create a streamlined floating illusion, with a tall, softly padded headboard upholstered in stain-resistant tech leather over high-resilience polyurethane foam. The flat back of the headboard sits fully flush against walls to eliminate gaps that can trap pillows, while the tight-fitting frame wraps neatly around a queen-sized mattress to cut down on unnecessary visual bulk and physical footprint. The warm white under-bed LED strip casts a soft, unobtrusive glow that reinforces the frame’s weightless, contemporary aesthetic.
Constructed for long-term stability, the bed frame uses a kiln-dried solid pine and plywood internal core, with a visible outer frame finished in smooth cream tech leather. The mattress support platform is built with solid poplar wood slats lined with anti-slip felt strips, supported by seven powder-coated carbon steel legs fitted with adjustable foot pads to level the frame on uneven floors and prevent floor scuffs. All connections use zinc-plated steel bolts and barrel nuts, with a non-woven fabric dust cover lining the side rails to block debris from accumulating under the bed. The frame supports a total static load of 454 kg, with a recommended maximum user weight of 180 kg, and eliminates squeaks during movement via felt buffers between slats and the frame structure.
Key functional features remove common pain points of standard bed frames: closely spaced slats provide stable support for all mattress types without requiring a separate box spring, while the integrated motion-activated under-bed LED lighting turns on automatically when motion is detected within range, shutting off after 30 seconds to deliver soft, glare-free illumination for late-night navigation without disrupting sleeping partners. The frame ships in flat-pack cartons for two-person assembly, with aligned bolt holes and an included hex key to simplify setup, taking roughly 40 minutes to complete per unit.
This bed frame is well-suited for residential master bedrooms decorated in modern cream, minimalist, or wabi-sabi aesthetics, as well as smaller guest bedrooms where its space-saving flush edge design maximizes usable floor area. It also works effectively for home staging projects, where its neutral finish and floating silhouette create a polished, high-end bedroom presentation, and coordinates seamlessly with matching cream nightstands and dressers for a cohesive furnishing scheme. It is designed to accommodate users across a broad adult age range, with its low platform height enabling easy, stable access. When procuring this frame, buyers should account for the two-carton flat-pack shipping configuration, ensure adequate space for assembly, and confirm compatibility with standard queen-sized mattresses measuring 1800 x 2000 mm to achieve the intended flush fit.
