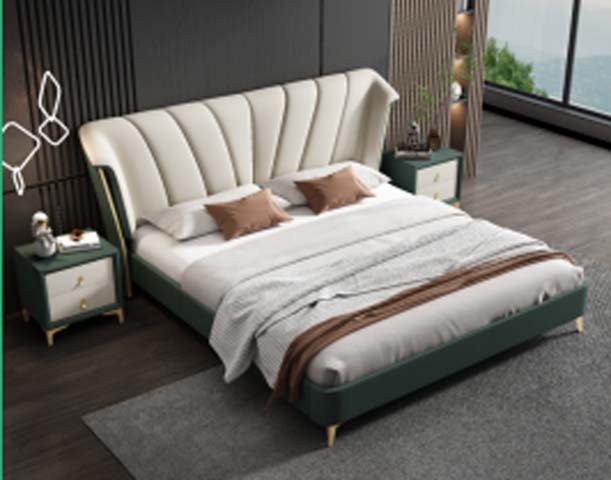

Product supplierTwo-Tone Channel-Tufted Wingback Upholstered Platform Bed, Off-white soft performance velvet fabric with vertical channel tufting
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2235 × 2184 × 1422 mm | |
|---|---|---|
| Headboard height (floor to top) | 1422 mm | |
| Low-profile side rail/footboard height | 356 mm | |
| Floor-to-slat support surface height | 508 mm | |
| Under-bed clearance (floor to rail bottom) | 160 mm | |
| Recommended compatible mattress thickness | 305 mm | |
| Headboard wing extension beyond frame width | 102 mm | |
| Headboard vertical channel tuft panel thickness | 89 mm | |
| Metal leg height (floor to rail base) | 152 mm | |
| Sleeping surface fit (king mattress) | 2032 x 1930 mm | |
| Side rail upholstered panel thickness | 38 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity (king size, mattress + users) | 454 kg | |
|---|---|---|
| Product net weight (king size) | 79 kg | |
| Support slat static load rating per slat | 35 kg | |
| Recommended maximum user weight per side | 150 kg | |
| Recommended mattress weight maximum | 68 kg | |
| Upholstery fabric abrasion resistance (performance velvet) | 50000 double rubs | |
| Frame joinery cyclic load durability | 10000 cycles | |
| Limited warranty period | 1 year | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard upholstery | Off-white soft performance velvet fabric with vertical channel tufting | |
|---|---|---|
| Side rail/footboard upholstery | Dark green soft performance velvet fabric with piped edge detailing | |
| Headboard/frame padding | 38mm thick high-density polyurethane foam (35kg/m³ density, 40% rebound) | |
| Internal support frame | 18mm thick engineered wood (LVL + MDF) with 1.2mm steel reinforcement brackets | |
| Support slats | 13 pieces of 12mm thick solid bentwood slats, spaced 70mm apart | |
| Support legs | Gold powder-coated 1.2mm thick steel tapered legs with floor protection glides | |
| Headboard decorative trim | Gold-finish metal accent strip along headboard wing edges | |
| Hardware connectors | Zinc-plated steel bolt and barrel nut connectors for tooled assembly | |
| Underside dust cover | Black non-woven polypropylene fabric covering frame bottom | |
| Fabric seam construction | 10mm stitch pitch, reinforced at high-tension corners | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Slat support system | Bentwood slat platform eliminates requirement for separate box spring | |
|---|---|---|
| Assembly requirement | Two-person knockdown assembly with included hex key and hardware | |
| Center support structure | 1 steel center support rail with 3 additional center legs for long-span stability | |
| Noise-reduction design | Slats fitted with non-slip EVA pads to eliminate metal-on-wood squeak | |
| Headboard structure | Fixed-height curved wingback headboard integrated into bed frame | |
| Mattress retention | Raised upholstered lip at head end of slat platform prevents mattress sliding | |
| Floor protection | Plastic glides on all leg bases prevent scratching hard flooring | |
| Under-bed access | 160mm under-bed clearance allows robotic vacuum access and low-profile storage | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Modern luxury residential master bedrooms with contemporary or light-luxury decor | |
|---|---|---|
| Compatible furniture pairing | Matching two-tone 2-drawer nightstands for coordinated bedroom set | |
| Mattress compatibility | Memory foam, hybrid, or innerspring mattresses 305 mm thick without box spring | |
| Target user group | Adult consumers seeking decorative, space-efficient low-profile bedroom furniture | |
| Recommended room size | Minimum 3.6m x 3.6m bedroom to accommodate bed and paired nightstands | |
| Floor type suitability | Hardwood, laminate, tile, or low-pile carpeted flooring with included leg glides |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:2010 | Domestic furniture – Beds and mattresses – Safety requirements and test methods | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette source |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame components | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wood furniture, applicable to engineered wood and adhesive materials | |
| GB/T 1952.2-2011 | Technical requirements for upholstered furniture mattresses and bed bases, applicable to slat support |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame components; 2. GB 18584-2001: Limit of harmful substances in wood furniture, applicable to engineered wood and adhesive materials; 3. GB/T 1952.2-2011: Technical requirements for upholstered furniture mattresses and bed bases, applicable to slat support; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
