PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1900 × 2200 × 1100 mm
Overall footprint	1900 x 2200 x 1100 mm
Supported mattress size	1800 x 2000 mm
Headboard total height	1100 mm
Floor to slat surface height	280 mm
Side rail thickness	120 mm
Headboard padding thickness	80 mm
Slat width	70 mm
Slat spacing	75 mm
Under-bed ground clearance	30 mm
Footboard height	350 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	455 kg
Net product weight	62 kg
Recommended number of users	2 adults
Slat support center beam count	1
Total slat count	14
Upholstery abrasion resistance	30000 cycles
Fastener shear strength per joint	120 kg
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery	Grey matte tech fabric / faux leather
Headboard padding	35 kg/m³ high-resilience polyurethane foam
Internal structural frame	18 mm thick multi-layer plywood / solid pine
Support slats	25 mm thick curved birch plywood
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Side rail internal reinforcement	1.2 mm thick rectangular steel tube
Underside dust cover	Black non-woven polypropylene fabric
Edge trim detail	Tonal matching stitching, 8 mm stitch pitch
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Fixed wood slat platform, no box spring required
Assembly method	Knock-down bolt-together assembly, all required hardware included
Headboard structure	Two-section split padded fixed headboard
Bed frame entry access	Low-profile side rail access from both sides and foot end
Mattress retention	Raised 20 mm lip on side rails and headboard
Floor contact	Full perimeter upholstered base with integrated anti-slip pads
Upholstery care	Spot-clean with mild upholstery detergent, regular vacuuming
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Master and guest bedrooms in residential apartments and homes
Recommended matching furniture	Low-profile upholstered nightstands of matching grey finish
Target user group	Adult users aged 65preferring modern minimalist soft-upholstered furniture
Design style compatibility	Contemporary, minimalist, Italian-modern, and neutral-toned interior schemes
Recommended mattress type	All-foam, hybrid, or innerspring mattresses 300 mm thick
Floor type suitability	Hardwood, laminate, tile, and low-pile carpeted floors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses – Safety requirements and test methods
EN 13150:2019	Work surfaces and furniture for domestic use – Strength and stability requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural frame performance
GB 18584-2001	Indoor decorating and refurbishing materials – limit of harmful substances in wooden furniture
GB/T 1952.2-2011	General technical requirements for upholstered furniture – spring and foam mattresses/sofas applicable

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural frame performance;
2. GB 18584-2001: Indoor decorating and refurbishing materials – limit of harmful substances in wooden furniture;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture – spring and foam mattresses/sofas applicable;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-GY-SPH-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-GY-SPH-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-GY-SPH-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

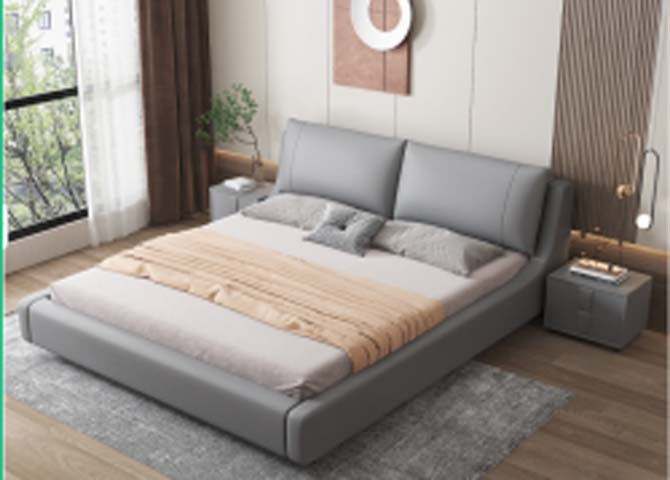

This Modern Grey Upholstered Low-Profile Platform Bed in Queen Size delivers a streamlined, minimalist presence suited to contemporary residential interiors. Its low-slung form features a two-section split padded fixed headboard, paired with thick side rails and a full perimeter upholstered base that sits close to the floor, creating a clean, unbroken visual line. Tonal matching stitching runs along upholstered edges for a refined, cohesive finish, and the understated grey matte upholstery blends seamlessly with neutral, Italian-modern, and minimalist design schemes.
The frame is built for long-term regular use, with an internal structure of multi-layer plywood and solid pine reinforced by steel rectangular tube inserts in the side rails. Curved birch plywood support slats sit atop a center support beam, secured with zinc-plated steel bolts and barrel nuts for stable joint connections. The headboard is padded with high-resilience polyurethane foam, wrapped in a matte grey tech fabric or faux leather upholstery formulated to withstand regular contact wear. A black non-woven polypropylene dust cover lines the frame’s underside, while integrated anti-slip pads at the base protect flooring and prevent unwanted movement.
Designed for practical, user-friendly operation, the fixed slat platform eliminates the need for a separate box spring, supporting all common mattress types including all-foam, hybrid, and innerspring designs. A raised lip along the side rails and headboard holds the mattress securely in place, while the low side rail height allows easy access from both sides and the foot of the bed. All required assembly hardware is included for bolt-together knock-down assembly, with no specialized tools needed for standard setup. Upholstery maintenance is straightforward, requiring only regular vacuuming and spot cleaning with mild upholstery detergent.
This bed is ideally suited for master and guest bedrooms in residential apartments and homes, and pairs naturally with matching low-profile grey upholstered nightstands. It accommodates two adult users, and performs reliably on hardwood, laminate, tile, and low-pile carpeted floors. When planning procurement, note that the set ships across multiple cartons, so teams should account for total packaged weight and delivery access for multi-box shipments. Installation teams can allocate standard setup time per unit, and specifiers should confirm mattress dimensions align with the bed’s supported size to ensure proper fit. The unbranded model offers flexible styling for residential furnishing projects targeting buyers who prefer soft-upholstered, uncluttered modern bedroom pieces.

Modern Grey Upholstered Low-Profile Platform Bed, Queen Size Specifications
