PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 2000 × 1370 mm
Headboard thickness	165 mm
Side rail height (slat support height)	230 mm
Under-bed clearance	150 mm
Center support leg count	8
Slat thickness	25 mm
Slat spacing	70 mm
Headboard channel width	135 mm
Gold central inlay width	70 mm
Support leg height	150 mm
Mattress support platform width	1800 mm
Mattress retainer lip height	50 mm
Side Rail Thickness	40 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	500 kg
Recommended mattress thickness	300 mm
Net bed frame weight	75 kg
Upholstery abrasion resistance	25000 rub cycles
Headboard padding foam density	35 kg/m³
Noise reduction rating	<30 dB during normal use
Recommended user weight per sleeper	150 kg
Warranty period	1 year
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	White PU faux leather
Headboard padding	High-density polyurethane foam
Internal frame	Solid kiln-dried wood + CARB P2 plywood
Support slats	Solid birch bentwood
Support legs	Gold-finished polished iron alloy
Central headboard accent	Polished gold stainless steel strip
Side rails and footboard	Upholstered MDF core with matching white PU
Hardware connectors	Zinc-plated steel bolts and brackets
Slat mounting clips	Reinforced PP plastic clips
Leg floor protectors	Non-slip EVA rubber pads
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Slatted wood platform, no box spring required
Mattress retention	Raised side and foot lips prevent lateral sliding
Center support	Metal cross-bars with 8 center support legs
Assembly type	Knock-down assembly with included hardware
Headboard mounting	Wall-anchored or frame-attached dual installation
Noise damping	Mute strips between slats and frame reduce movement noise
Under-bed access	150mm clearance allows cleaning robot access
Customization options	Available in 1500/1800mm widths with optional nightstand bundles
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application	Residential master bedroom, light luxury/modern interior design
Recommended users	Adult couples, suitable for king size sleeping configuration
Compatibility	Works with all standard 1800x2000mm spring, hybrid, or foam mattresses
Matching furniture	Pairs with two-drawer white/gold nightstands for coordinated bedside storage
Ceiling height requirement	Minimum 2400mm ceiling height to accommodate tall headboard
Floor type suitability	Works on hard wood, tile, or carpeted floors with non-slip leg pads
Use case	Primary sleeping unit for new home furnishing or bedroom renovation projects

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2018	Domestic furniture - Seating and beds - Determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame and structural components
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to panel and adhesive materials
GB/T 1952.2-2011	Technical requirements for upholstered furniture beds, applicable to padding and upholstery

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural components;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to panel and adhesive materials;
3. GB/T 1952.2-2011: Technical requirements for upholstered furniture beds, applicable to padding and upholstery;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-WHT-SCG-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-WHT-SCG-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-WHT-SCG-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

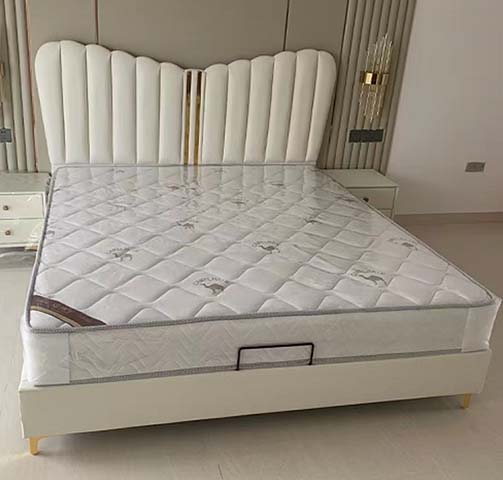

This white channel-tufted upholstered platform bed, model UPB-WHT-SCG-1800, is an unbranded furnishing aligned with modern light luxury interior design sensibilities. Visually, it features a scalloped headboard with evenly spaced channel tufts, each channel measuring 135mm wide, trimmed with a polished gold stainless steel accent strip at its center. The full frame is upholstered in matching crisp white PU faux leather, with slender gold-finished polished iron alloy legs that anchor the soft, structured silhouette, creating a balanced contrast between soft textured upholstery and sleek metallic details. Built for durable daily use, the bed’s internal structure combines solid kiln-dried wood and CARB P2 plywood, with side rails and footboard constructed from an MDF core wrapped in the same white PU upholstery. The support system uses 25mm thick solid birch bentwood slats spaced 70mm apart, secured with reinforced PP plastic clips, and reinforced by metal cross-bars paired with 8 center support legs. Connections use zinc-plated steel bolts and brackets for stability, while mute strips between slats and the frame reduce movement-related noise. The headboard is padded with high-density polyurethane foam at 35 kg/m³ density, upholstered in PU faux leather tested to 25000 rub cycles of abrasion resistance. Functionally, the slatted platform eliminates the need for a box spring, with raised side and foot lips to prevent lateral mattress sliding. It holds a total static weight capacity of 500kg, supporting 150kg per sleeper, and works with all standard 1800x2000mm spring, hybrid, or foam mattresses, with a recommended mattress thickness of 300mm. The 150mm under-bed clearance allows unobstructed access for cleaning robots. The headboard offers dual installation options: wall-anchored or frame-attached, and the knock-down design includes all required hardware for assembly, which takes an 40 minutes per set. Non-slip leg pads make the bed suitable for placement on hardwood, tile, or carpeted floors. Ideal for residential master bedrooms with a minimum 2400mm ceiling height to accommodate its tall headboard, the bed pairs seamlessly with two-drawer white and gold nightstands for a coordinated look, and is sized for adult couples using a king sleep configuration. Procurement teams should note the unit ships in 2 cartons per set, with a total packaged gross weight of 130kg and total packaging volume of 0.9m³ per set. The product carries a 1-year warranty, and no specialized tools beyond standard household implements are required for assembly. All components are packed securely to prevent transit damage, and replacement hardware is available for order if needed post-delivery. The bed’s light, neutral color palette and metallic accents make it flexible to pair with a range of complementary soft furnishings without clashing with existing room decor.
