Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1880 x 2180 x 1180 mm | |
|---|---|---|
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
| Bed frame net weight | 85 kg | |
|---|---|---|
| Maximum static load capacity (mattress + users) | 500 kg | |
| Storage compartment internal volume | 480 L | |
| Recommended mattress thickness | 280 mm | |
| Recommended user count | 2 | |
| Metal leg static load per leg | 120 kg | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Headboard upholstery | 1.2mm thick teal faux leather with PU coating | |
|---|---|---|
| Headboard padding | 35kg/m3 density high-resilience polyurethane foam | |
| Internal bed frame | 30mm thick solid pine wood + 18mm plywood panels | |
| Support legs | 1.2mm thick matte black powder-coated steel, 120mm height | |
| Storage compartment base | 15mm thick plywood with non-woven fabric lining | |
| Slat support system | 25mm wide bentwood slats, 80mm spacing | |
| Hardware components | Zinc-plated steel hinges, gas lift struts, metal pull handle | |
| Upholstery stitching | 8mm stitch pitch, matching teal thread | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
Adjustment / rotation / tilt / mobility / storage features
| Lift-up underbed storage | Hydraulic gas-lift mechanism lifts mattress platform 450mm for full underbed access | |
|---|---|---|
| Tufted double-panel headboard | Split two-section padded headboard provides lumbar and back support for seated reading | |
| Mattress platform support | Fixed bentwood slat system no box spring required | |
| Weight-activated floor protection | 20mm diameter polyethylene foot pads on each steel leg prevent floor scratching | |
| Assembly structure | Knock-down construction with cam-lock and bolt joints for on-site assembly | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
| Primary application space | Master bedrooms in residential apartments and homes | |
|---|---|---|

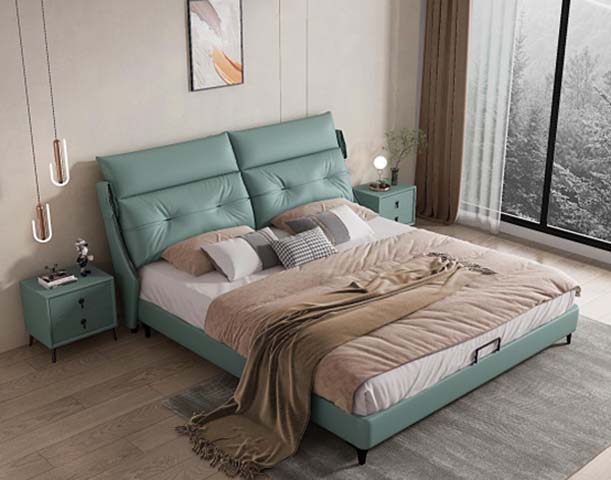

| Matching furniture recommendation | Pair with matching teal two-drawer nightstands as pictured for coordinated bedroom set | |
| Recommended interior style | Modern minimalist, light luxury and contemporary interior design schemes | |
| User suitability | Adult couples seeking padded back support and concealed underbed storage | |
| Room size requirement | Minimum bedroom width 3000mm to allow side access to bed and nightstands |
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture beds and mattresses, safety and strength test standard | |
|---|---|---|
| EN 1022:2005 | Domestic furniture seating, applicable to headboard structural stability testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood frame structural testing | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame structural testing; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
