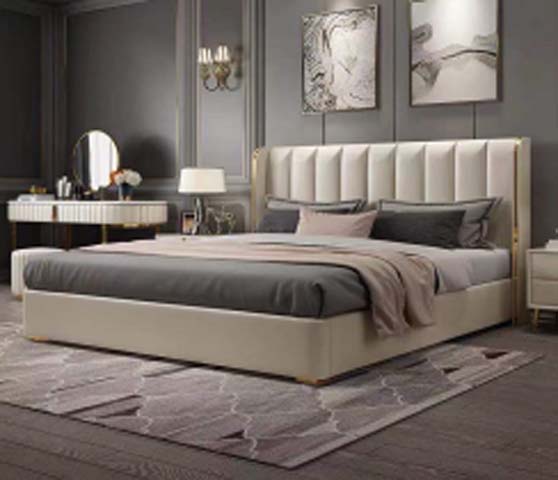

Product supplierLight Beige Vertical Channel Tufted Upholstered Platform Bed with Gold Metal Trim, Solid hardwood + E0 grade engineered plywood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1980 × 2130 × 1660 mm | |
|---|---|---|
| mattress support surface | 1800 x 2000 mm | |
| headboard height | 1660 mm | |
| floor to slat support height | 330 mm | |
| under-bed clearance | 160 mm | |
| side rail thickness | 180 mm | |
| headboard wing projection | 80 mm | |
| gold trim width | 20 mm | |
| slat width | 70 mm | |
| slat spacing | 75 mm | |
| footboard height | 380 mm | |
| leg height | 30 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| static weight capacity | 454 kg | |
|---|---|---|
| net product weight | 54 kg | |
| compatible mattress thickness | 305 mm | |
| slat static load per unit | 150 kg | |
| upholstery abrasion resistance | 30000 cycles | |
| foam density (headboard padding) | 35 kg/m³ | |
| mattress slip resistance rating | High | |
| squeak-free service life | 5 years | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| internal frame | Solid hardwood + E0 grade engineered plywood | |
|---|---|---|
| upholstery fabric | 280g/㎡ matte velvet, light beige finish | |
| headboard/rail padding | 30mm thick high-resilience polyurethane foam | |
| decorative trim | Electroplated polished gold stainless steel | |
| support legs | 1.2mm thick gold-finished carbon steel | |
| support slats | 15mm thick polished solid birch slats | |
| center support beam | 1.2mm thick rectangular steel tube | |
| hardware connectors | Zinc-plated steel bolts and barrel nuts | |
| noise-dampening strips | 2mm thick EVA foam on slat contact points | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| support system | Wooden slat platform eliminates need for box spring | |
|---|---|---|
| noise reduction design | EVA strips on all slat-frame contact points | |
| assembly design | Knock-down flat-pack construction with pre-drilled holes | |
| mattress retention | Raised upholstered side/foot rails prevent mattress sliding | |
| floor protection | Plastic glides on bottom of metal legs | |
| cleaning compatibility | Stain-resistant velvet surface supports spot cleaning with dry cloth | |
| wall alignment | Flat rear headboard profile sits flush against finished walls | |
| weight distribution | Three longitudinal support rows with 12 slats | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential master bedroom | Suitable for modern light luxury, contemporary or glam style interiors | |
|---|---|---|
| hotel guest room | Matches premium boutique hotel bedroom design schemes | |
| show home display | Ideal for staged residential showrooms to showcase luxury bedroom sets | |
| matching set configuration | Pairs with matching fluted gold-trim nightstands and dressing tables | |
| space requirement | Requires minimum 2700mm wall width for king size placement with clearance | |
| user demographic | Targets homeowners seeking high-style low-profile bedroom furniture |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture – Beds and mattresses – Safety requirements and test methods | |
|---|---|---|
| EN 1022:2005 | Domestic furniture – Seating – Determination of stability (applies to frame stability reference) |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to structural frame integrity | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applies to formaldehyde emission testing | |
| GB/T 1952.2-2011 | General technical requirements for upholstered furniture (beds), applies to soft part durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to structural frame integrity; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applies to formaldehyde emission testing; 3. GB/T 1952.2-2011: General technical requirements for upholstered furniture (beds), applies to soft part durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
