PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2090 × 2250 × 1020 mm
mattress recess platform dimensions	2030 x 1930 mm
side/foot rail height from floor	320 mm
headboard total width	2090 mm
headboard thickness at center	220 mm
recommended mattress thickness	260 mm
floor clearance under frame	20 mm
side rail width (horizontal thickness)	200 mm
slat count	14
slat thickness	25 mm
slat spacing	70 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static weight capacity (even distribution)	363 kg
recommended sleeper count	2 adults
net product weight	59 kg
upholstery abrasion resistance (Martindale)	30000 cycles
foam padding density (headboard/rails)	32 kg/m³
foam rebound rate	60%
joint static load rating (per corner)	90 kg
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

outer upholstery	Textured woven polyester-linen blend fabric, matte beige finish
headboard padding	High-density polyurethane foam wrapped with polyester fiber fill
side/foot rail padding	High-density polyurethane foam, rounded bullnose edge shaping
internal frame core	Kiln-dried solid pine and plywood structural frame
mattress support slats	Solid hardwood slats with noise-damping felt strips
center support beam	Reinforced plywood center beam with vertical support legs
connection hardware	Zinc-plated steel bolts, barrel nuts, and corner brackets
hidden support feet	High-impact plastic glides attached to internal frame
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

mattress support system	Wood slat platform, no box spring required for standard mattress use
headboard function	Full-width padded curved backrest for seated reading and back support
edge design	Fully rounded bullnosed upholstered edges on all exposed sides
noise reduction	Felt damping strips between slats and frame to eliminate squeaking
assembly requirement	Flat-pack assembly with included hex key and hardware
floor protection	Non-marring glides on hidden feet to prevent hard floor damage
mattress retention	Recessed platform lip holds mattress in place to prevent sliding
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential primary bedroom	King size sleeping surface for adult primary bedroom suites
apartment/condo bedrooms	Low-profile design works for rooms with lower ceiling heights
soft-edged family spaces	Rounded zero-sharp-corner design suitable for homes with young children
neutral palette interior schemes	Beige woven fabric complements warm wood, neutral wall, and linen textile palettes
recommended pairing	Pairs with low-profile nightstands under 500mm height for proportional balance

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses, safety and strength requirements
EN 1021-1:2006	Upholstered furniture flammability, cigarette ignition resistance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal wood frame
GB 18584-2001	Limit of harmful substances in wood furniture for interior materials
GB/T 1952.2-2011	General technical requirements for upholstered furniture, bedding pieces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame;
2. GB 18584-2001: Limit of harmful substances in wood furniture for interior materials;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture, bedding pieces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-CRVHD-BEI-K

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-CRVHD-BEI-K

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-CRVHD-BEI-KOpen Export Tool

Quick Actions

Post an RFQ

Product Description

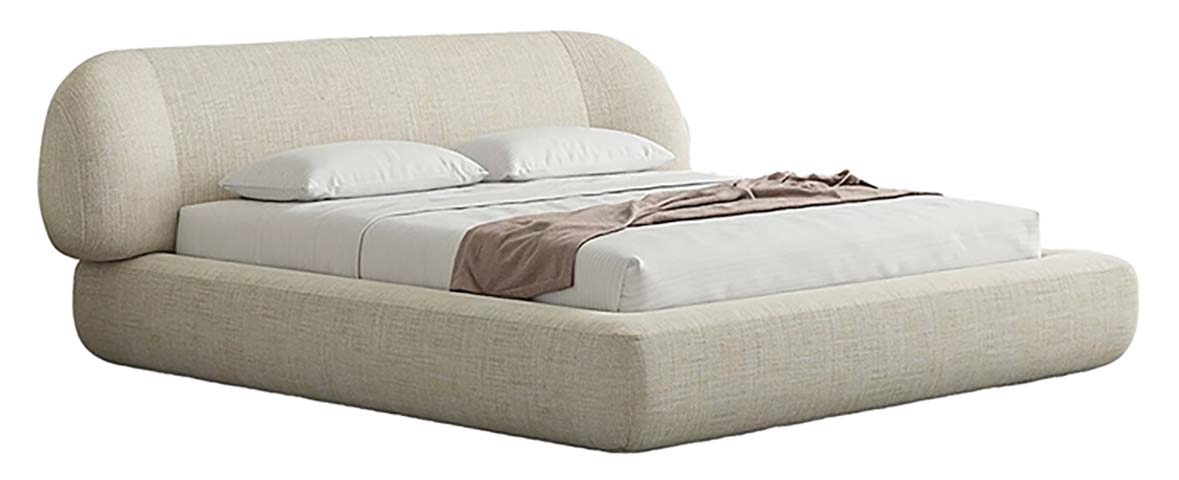

This unbranded beige textured upholstered low-profile platform bed, model UPB-CRVHD-BEI-K, features a streamlined, soft-edged silhouette anchored by a full-width curved wide headboard. All exposed side and foot rails carry rounded bullnose shaping, eliminating sharp corners for a gentle, approachable visual presence that sits low to the floor. The matte beige woven upholstery carries a subtle textured finish that pairs seamlessly with warm wood finishes, neutral wall treatments, and linen textile decor schemes, balancing understated elegance with casual residential warmth. For proportional visual balance, the bed is best paired with low-profile nightstands under 500mm in height. Built for long-term residential use, the bed’s structural core uses a kiln-dried solid pine and plywood frame, supported by a reinforced plywood center beam with vertical support legs, connected via zinc-plated steel bolts, barrel nuts, and corner brackets. Sleep surfaces are supported by solid hardwood slats fitted with noise-damping felt strips, each fitted with high-impact plastic non-marring glides on hidden feet to protect hard flooring from scuffs. The textured woven polyester-linen blend upholstery covers high-density polyurethane foam padding, wrapped with additional polyester fiber fill on the headboard for plush, supportive cushioning. Functionally, the wood slat support system removes the need for a separate box spring when used with a standard mattress, while a recessed platform lip holds the mattress firmly in place to prevent unwanted sliding. The curved, full-width padded headboard offers stable back support for seated reading or relaxation in bed, and the felt strips between slats and frame eliminate squeaking during use. Felt damping strips between slats and frame reduce operational noise, and the rounded edges enhance safety for active household use. The low-profile frame is particularly well suited for apartments or condos with lower ceiling heights, while the zero-sharp-corner design makes it appropriate for family homes with young children. It accommodates two adult sleepers comfortably for primary bedroom suites. Procurement teams and residential buyers should note the product ships via flat pack across multiple cartons, with all required hardware and a hex key included for assembly, with a standard assembly time of 40 minutes per unit. Buyers should select a mattress matching the recommended thickness to maintain the bed’s intended low-profile silhouette, and account for the packaged gross weight and delivery volume when planning receiving and installation logistics. The neutral matte beige finish offers flexible styling alignment across a wide range of soft, neutral interior palettes.

Beige Textured Upholstered Low-Profile Platform Bed with Curved Wide Headboard Specifications
