PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2045 × 2159 × 1283 mm
Headboard height	1283 mm
Mattress support platform height (floor to slat surface)	356 mm
Underbed clearance (floor to frame bottom)	152 mm
Compatible mattress size (King)	1930 x 2032 mm
Compatible mattress maximum thickness	457 mm
Headboard padding thickness	76 mm
Metal frame tube wall thickness	1.5 mm
Support slat thickness	18 mm
Support slat width	70 mm
Slat spacing (gap between slats)	76 mm
Center support leg diameter	30 mm
Footboard rail height	203 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	454 kg
Net product weight	55 kg
Recommended user count	2 adults
Center support leg quantity	5 units
Support slat quantity	14 units
Upholstery abrasion resistance (Wyzenbeek)	30000 double rubs
Foam padding density (headboard)	32 kg/m³
Foam rebound rate (headboard)	45%
Seam stitch pitch	8 stitches per inch
Limited warranty period	1 year

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Tan smooth faux leather (polyurethane)
Headboard internal panel	12 mm thick plywood
Headboard padding	32 kg/m³ high-density polyurethane foam
Bed frame structure	Black powder-coated carbon steel tubing
Support slats	18 mm thick solid birch plywood
Slat attachment hardware	Galvanized steel screws and Velcro strips
Noise damping strips	3 mm thick EVA foam tape
Leg foot caps	Non-slip rubber
Finish coating (metal frame)	Matte black powder coat
Tufting channel backing	Polyester webbing
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Fixed wood slat platform, no box spring required
Mattress retention	Raised side and end rails prevent lateral mattress slip
Noise reduction design	EVA foam tape between slats and metal rails eliminates metal-on-wood squeak
Underbed storage access	152 mm open clearance for flat under-bed storage bins
Center support system	5 steel legs along central longitudinal rail prevent slat sag
Assembly design	Knock-down construction with included hex key hardware
Floor protection	Rubber foot caps on all legs prevent scratches to hard flooring
Headboard mounting	Fixed pre-drilled mounting positions for secure attachment
Cleaning compatibility	Spot-cleanable faux leather surface for easy stain removal
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Residential master bedrooms, King size configuration
Matching interior style	Modern, minimalist, contemporary and mid-century modern bedrooms
Compatible furniture pairings	Matching tan upholstered nightstands with black metal legs, dark wood case goods
Flooring compatibility	Hardwood, luxury vinyl plank, carpet and large area rugs
Target user group	Adult homeowners, rental property furnishing, boutique hotel guest rooms
Recommended mattress pairings	Memory foam, hybrid, latex and innerspring mattresses 457 mm thick
Space requirement (minimum clearance)	3050 x 3300 mm bedroom footprint

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses – Safety requirements and test methods
EN 1022:2018	Domestic furniture – Seating and beds – Determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to plywood slats and headboard structure
GB/T 24821-2009	Safety and performance standards for domestic metal bed frames, applicable to steel support structure
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing
GB/T 16799-2008	Performance standards for polyurethane synthetic leather upholstery materials

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to plywood slats and headboard structure;
2. GB/T 24821-2009: Safety and performance standards for domestic metal bed frames, applicable to steel support structure;
3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing;
4. GB/T 16799-2008: Performance standards for polyurethane synthetic leather upholstery materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-K-CT-BM-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-K-CT-BM-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-K-CT-BM-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

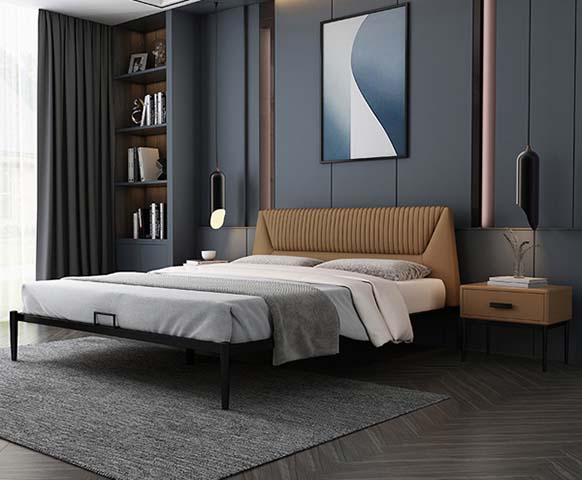

This vertical channel tufted upholstered platform bed pairs sleek, minimalist design with durable, functional construction to suit a wide range of residential and light commercial sleeping spaces. Presented in a king size configuration, the piece features a low-profile silhouette anchored by a matte black powder-coated steel frame, with a tall, padded headboard upholstered in smooth tan polyurethane faux leather. The headboard’s evenly spaced vertical channel tufting creates subtle, tailored texture without overwhelming surrounding decor, while the streamlined frame sits low to the floor for a contemporary, uncluttered look that aligns with modern, minimalist, contemporary, and mid-century modern interior schemes. Built for long-term daily use, the bed’s structure integrates a black powder-coated carbon steel tubing frame, an internal 12mm plywood headboard panel wrapped in 32 kg/m³ high-density polyurethane foam, and 18mm thick solid birch plywood support slats secured with galvanized steel screws and Velcro strips. Five steel center support legs run along the frame’s central longitudinal rail to prevent slat sag over time, while 3mm thick EVA foam tape is fitted between slats and metal rails to eliminate metal-on-wood squeaks during use. Non-slip rubber foot caps on all legs protect hard flooring surfaces from scuffs and scratches. The fixed wood slat support system eliminates the need for a separate box spring, and raised side and end rails hold mattresses firmly in place to prevent lateral shifting. Open clearance beneath the frame accommodates flat under-bed storage bins to maximize space efficiency in smaller rooms. The bed supports memory foam, hybrid, latex, and innerspring mattresses up to 457mm thick, and is rated for use by two adults. It arrives in knock-down form with included hex key hardware, with an assembly time of 40 minutes per unit. This model is ideal for residential master bedrooms, fully furnished rental properties, and boutique hotel guest rooms. It pairs seamlessly with matching tan upholstered nightstands with black metal legs and dark wood case goods, and works equally well placed on hardwood, luxury vinyl plank, carpet, or large area rugs. When procuring, buyers should note the king size footprint requires adequate wall and floor clearance for the frame dimensions, account for total packaged weight for delivery planning, and select mattress thickness within the compatible range to maintain the intended low-profile aesthetic.

Vertical Channel Tufted Upholstered Platform Bed with Black Metal Frame Specifications
