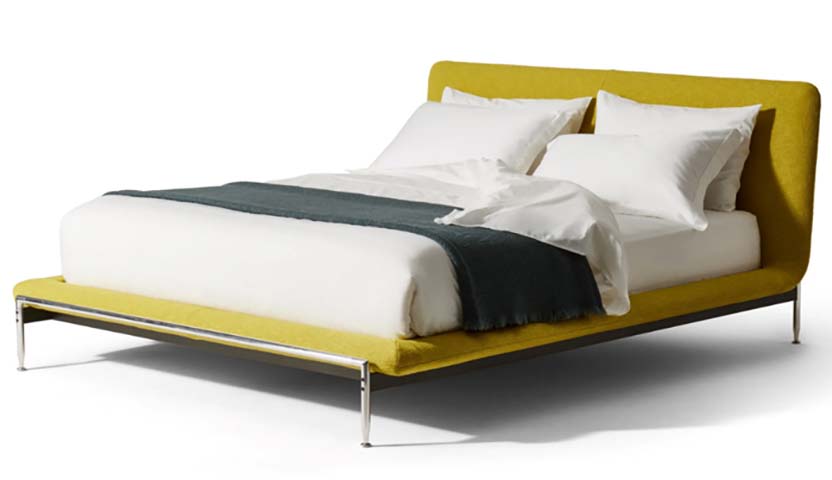

Product supplierMustard Woven Fabric Upholstered Low-Profile Platform Bed with Polished Chrome Legs, Mustard yellow woven polyester fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2172 × 2286 × 1092 mm | |
|---|---|---|
| Floor to top of platform slat surface | 280 mm | |
| Headboard height above platform surface | 812 mm | |
| Headboard thickness | 102 mm | |
| Side rail height above floor | 330 mm | |
| Recommended compatible mattress thickness | 305 mm | |
| Support leg diameter | 32 mm | |
| Under-bed clearance height | 178 mm | |
| Mattress support slat width | 70 mm | |
| Slat spacing between adjacent supports | 76 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity (mattress + users) | 363 kg | |
|---|---|---|
| Net product weight | 62 kg | |
| Upholstery fabric abrasion resistance | 30000 double rubs | |
| Slat assembly static point load capacity | 113 kg per slat | |
| Recommended maximum user weight per side | 136 kg | |
| Frame joint cyclic durability rating | 10000 load cycles | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Exterior upholstery | Mustard yellow woven polyester fabric | |
|---|---|---|
| Headboard padding | 38mm thick high-density polyurethane foam | |
| Side rail padding | 25mm thick high-density polyurethane foam | |
| Internal support frame | 18mm thick plywood and MDF structural panels | |
| Mattress support slats | 12mm thick solid hardwood slats | |
| Support legs | Polished chrome-plated tapered steel legs | |
| Perimeter trim rail | Polished chrome-plated steel accent strip | |
| Hardware connectors | Zinc-plated steel bolts and barrel nuts | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mattress support design | Fixed wood slat platform, no box spring required for mattress placement | |
|---|---|---|
| Assembly configuration | Knockdown assembly with included hex key and hardware | |
| Support leg function | Fixed rigid tapered legs with non-slip floor glides to protect flooring | |
| Headboard function | Fixed padded wrap-around headboard with rounded corners for back support while sitting upright | |
| Under-bed access | 178mm open clearance for robot vacuum and routine cleaning access | |
| Edge support | Padded upholstered side rails to prevent impact injury and hold mattress in place | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential primary bedroom | Fits king-size mattress configurations for modern and contemporary bedroom interiors | |
|---|---|---|
| Urban apartment and condo spaces | Low profile and open under-bed clearance suits compact bedroom floor plans | |
| Short-term rental furnished properties | Durable woven fabric and simple assembly support high-turnover rental use | |
| Modern boutique hotel guest rooms | Polished chrome accents and on-trend mustard upholstery fit upscale boutique design | |
| Recommended pairing | Use with 305 mm thick memory foam or hybrid mattress for optimal profile height |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture - Beds and mattresses - Safety requirements and test methods | |
|---|---|---|
| EN 1022:2018 | Domestic furniture - Seating and beds - Determination of stability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural frame performance | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture | |
| GB/T 1952.2-2011 | Spring soft mattress and upholstered bed furniture safety requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural frame performance; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture; 3. GB/T 1952.2-2011: Spring soft mattress and upholstered bed furniture safety requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
