PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1700 × 2130 × 1180 mm
Headboard height	1180 mm
Side rail height	350 mm
Under-bed storage clearance	305 mm
Recommended mattress thickness	305 mm
Side storage drawer internal dimensions	1448 x 305 x 292 mm
Footboard height	350 mm
Support leg height	100 mm
Headboard wing projection	100 mm
Slat width	70 mm
Slat thickness	25 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Maximum static weight capacity	454 kg
Net weight (frame only)	63 kg
Storage drawer weight capacity	23 kg per drawer
Slat center support count	9 legs
Total slat count	24 slats
Slat spacing	70 mm
Noise reduction performance	Squeak-free under normal movement
Drawer glide cycle rating	30000 open/close cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame core structure	18mm thick plywood and engineered wood panels
Upholstery material	Light gray matte faux leather (PU)
Headboard and rail padding	30mm thick high-density polyurethane foam
Support slats	Solid pine wood slats
Storage drawer hardware	Zinc-plated steel ball-bearing glides
Drawer pull handle	Matte black metal U-shaped handle
Support legs	Stained solid wood block legs
Noise dampening components	EVA foam pads at all wood and metal contact points
Drawer box construction	12mm thick MDF panels with fabric lining
Fastener hardware	Zinc-plated steel bolts, dowels and lock nuts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Under-bed storage access	2 side-pull drawers on metal glides, operated via visible side rail handle
Mattress support system	Fixed wood slat platform with center support legs
Drawer operation	Full-extension glides allow 100% drawer access for easy loading and unloading
Headboard function	Padded vertical channel-tufted wingback provides back support for seated reading or bed use
Assembly requirement	Knock-down assembly with included hardware and step-by-step instructions
Floor protection	Felt pads pre-installed on leg bases
Mattress retention	Raised rail lip around mattress platform
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Residential master or guest bedrooms
Recommended users	Adult users seeking hidden storage without a tall, bulky bed frame
Style compatibility	Matches minimalist, modern and Scandinavian bedroom decor
Storage benefit	Ideal for small bedrooms with limited closet space
Recommended pairing	Pairs with matching 4-drawer nightstands for coordinated bedroom set
Flooring compatibility	Suitable for hardwood, laminate, carpet and tile flooring

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2018	Domestic furniture - Seating - Determination of stability, applicable to bed frame stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structural integrity
GB 18584-2001	Limit of harmful substances in wood furniture, required for indoor air quality compliance
GB/T 39600-2021	Performance evaluation for upholstered furniture durability, applicable to padding and frame testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structural integrity;
2. GB 18584-2001: Limit of harmful substances in wood furniture, required for indoor air quality compliance;
3. GB/T 39600-2021: Performance evaluation for upholstered furniture durability, applicable to padding and frame testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · USB-Q-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · USB-Q-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · USB-Q-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

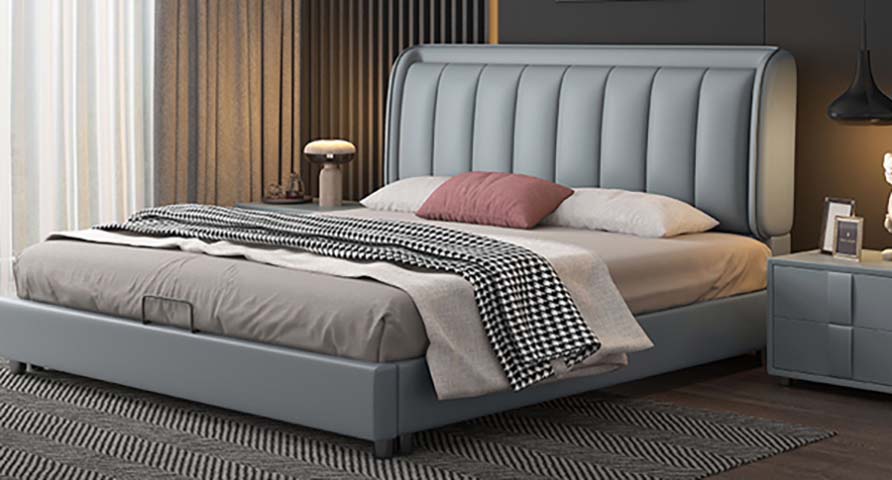

The Light Gray Upholstered Storage Bed with Vertical Channel-Tufted Wingback Headboard, model USB-Q-01, is an unbranded low-profile platform bed designed to balance refined visual appeal, functional storage, and stable everyday use. Its form features a tall, softly structured wingback headboard detailed with vertical channel tufting, finished in a consistent light gray matte tone that complements understated interior palettes. The frame sits at a balanced low-profile height, with matching side rails and footboard creating a clean, streamlined silhouette that avoids the heavy, overscaled look of bulkier storage bed designs. The layout integrates two side-pull storage drawers flush with the side rails, fitted with matte black U-shaped metal handles that sit subtly against the upholstered frame for a cohesive, uncluttered appearance. Built for long-term regular use, the bed’s core frame is constructed from thick plywood and engineered wood panels, wrapped in 30mm high-density polyurethane foam padding and covered in smooth light gray matte PU faux leather. Its support system uses solid pine wood slats set across nine center support legs, with EVA foam pads placed at every wood and metal contact point to deliver squeak-free performance under normal movement. Stained solid wood block legs support the frame, with pre-installed felt pads to protect finished floor surfaces. The under-bed storage drawers are built from MDF panels with soft fabric linings, mounted on zinc-plated steel full-extension ball-bearing glides that allow complete access to the full drawer interior for easy loading and unloading. Metal hardware is included for assembly, and the fixed slat platform features a raised rail lip to hold the mattress securely in place without shifting. In practice, the padded wingback headboard provides cushioned back support for seated activities such as reading in bed, while the under-bed storage offers discrete, easily accessible space ideal for stowing extra bedding, seasonal clothing, or personal items. The bed is suited for residential master bedrooms, guest rooms, and particularly small bedrooms with limited built-in closet space, pairing seamlessly with minimalist, modern, and Scandinavian decor styles, and coordinating well with matching 4-drawer nightstands for a unified room set. It works safely across hardwood, laminate, carpet, and tile flooring. For procurement, note the bed ships in knock-down form with step-by-step assembly instructions, with a reference assembly time of 40 minutes per set. Teams should account for total packaged weight and multi-carton delivery when planning receiving and in-home placement, and select a mattress aligned with the recommended thickness to maintain the frame’s intended low-profile look and functional fit.

Light Gray Upholstered Storage Bed with Vertical Channel-Tufted Wingback Headboard Specifications
