PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1830 × 2260 × 1210 mm
Mattress support platform dimensions	1530 x 2030 mm
Headboard total height from floor	1210 mm
Headboard padded panel thickness	120 mm
Sleeping surface height from floor	320 mm
Under-bed clearance height	310 mm
Support leg diameter	30 mm
Wood slat thickness	25 mm
Slat spacing between supports	70 mm
Side rail height from platform	200 mm
Center support rail count	1
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static total weight capacity	410 kg
Net product weight	50 kg
Suitable mattress thickness range	310 mm
Slat system static point load capacity	150 kg
Recommended maximum user weight per sleeper	180 kg
Upholstery abrasion resistance (Martindale)	30000 cycles
Frame noise reduction cycle rating	10000 cycles
Limited warranty period	5 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Cognac brown faux leather, 1.2mm thickness
Headboard padding	35kg/m³ high-density polyurethane foam, 80mm thickness
Structural frame	1.2mm thick powder-coated carbon steel
Mattress support slats	Solid pine wood, 25mm thick, sanded smooth
Support legs	Square-profile black powder-coated steel, 30mm width
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Frame edge trim	Matte black powder-coated steel, 1.5mm thick
Headboard stitching	High-tensile polyester thread, 8mm stitch pitch
Floor protection pads	Non-marking rubber pads, 5mm thick
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Wood slat platform, no box spring required
Headboard function	Fixed sloped padded panel, provides back support for seated reading
Assembly requirement	Knock-down assembly with included hex key tool
Center support system	1 longitudinal steel rail with 3 additional support legs
Mattress retention	Low-profile side rails prevent mattress sliding during use
Under-bed access	310mm open clearance for cleaning and under-bed storage
Hardware locking	Pre-threaded bolt inserts for tool-tightened secure assembly
Upholstery maintenance	Stain-resistant wipe-clean faux leather surface
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom use	Suitable for adult master bedrooms as main sleeping furniture
Modern / industrial interior schemes	Matches contemporary, minimalist, and industrial decor styles
Guest bedroom application	Appropriate for residential guest rooms with durable upholstery
Low-ceiling spaces	Low-profile design suits rooms with lower ceiling heights
Coordinated bedroom sets	Pairs with matching cognac leather nightstands with black metal legs
Hard flooring use	Fitted with non-marking rubber pads to protect wood, tile, or vinyl floors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2018	Furniture - Seating and beds - Determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood slat components
GB 28007-2011	Safety requirements for children's furniture if used in teen bedrooms
GB/T 1952.2-2011	General technical requirements for upholstered furniture (beds)

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood slat components;
2. GB 28007-2011: Safety requirements for children's furniture if used in teen bedrooms;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture (beds);
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-QL18-CG-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-QL18-CG-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-QL18-CG-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

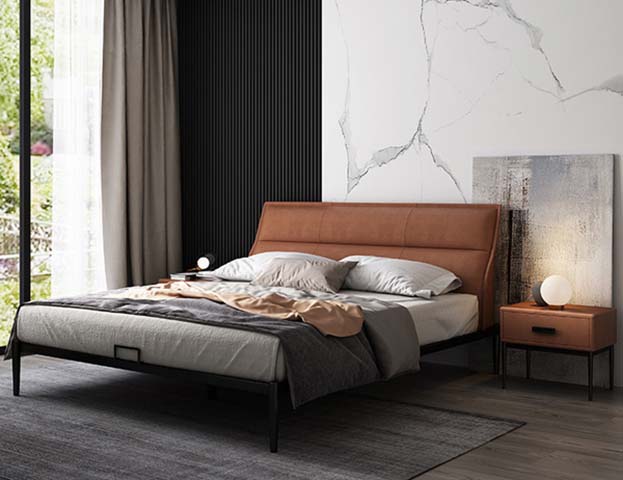

The Cognac Faux Leather Upholstered Platform Bed with Black Metal Frame is a modern, minimalist sleeping solution defined by clean, low-profile lines and balanced material contrast. Its fixed sloped headboard features precise stitched panel detailing, set against a matte black metal frame that creates a sleek visual counterpoint to the warm cognac brown upholstery. The streamlined layout includes low-profile side rails, slender square metal support legs, and open under-bed space, delivering an uncluttered silhouette that aligns with contemporary, minimalist, and industrial interior design schemes. Construction prioritizes lasting durability and tactile comfort. The headboard is wrapped in 1.2mm thick cognac faux leather, padded with high-density polyurethane foam for a soft, supportive surface, and stitched with high-tensile polyester thread for consistent, neat detailing. The structural core uses powder-coated carbon steel for the main frame, edge trim, and support legs, connected with zinc-plated steel bolts, barrel nuts, and pre-threaded inserts for rigid, secure joins. The mattress support system uses sanded smooth solid pine wood slats, reinforced by a longitudinal center steel rail with three additional support legs. Non-marking rubber pads fitted to leg bases prevent scuffing on hard flooring surfaces, including wood, tile, and vinyl. Functional design supports flexible, convenient use. The wood slat platform eliminates the need for a separate box spring, while low-profile side rails hold mattresses firmly in place to prevent sliding during use. The sloped padded headboard provides stable back support for seated reading or relaxation in bed. Open under-bed clearance allows easy access for routine cleaning and under-bed storage. The bed ships as a knock-down assembly, with an included hex key to streamline setup, and accommodates thick mattress profiles. It holds a static total weight capacity aligned with dual adult sleeper use. This platform bed is well-suited for residential spaces including adult master bedrooms, furnished guest rooms, and rooms with lower ceiling heights where its low-profile frame avoids visual heaviness. It coordinates seamlessly with matching cognac leather nightstands fitted with black metal legs for a cohesive bedroom aesthetic. For procurement, note that each set ships across multiple cartons, with a packaged gross weight and volume that supports standard residential delivery routing. The durable faux leather upholstery delivers reliable abrasion resistance for regular, long-term use, and the frame is engineered for reduced operational noise over extended use. The bed is offered as an unbranded model, allowing flexible styling alignment across diverse residential furnishing projects.

Cognac Faux Leather Upholstered Platform Bed with Black Metal Frame Specifications
