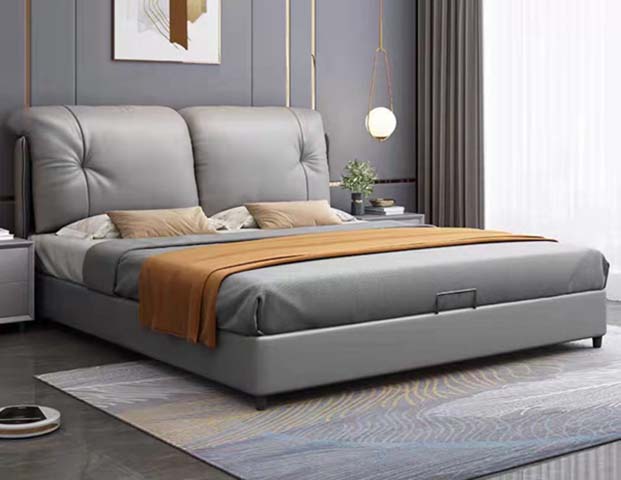

Product supplierUpholstered Storage Platform Bed, Smooth matte grey faux leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 2200 × 1100 mm | |
|---|---|---|
| Overall dimension | 2000 x 2200 x 1100 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total bed frame weight | 110 kg | |
|---|---|---|
| Maximum static mattress weight capacity | 500 kg | |
| Lift-up storage compartment load capacity | 80 kg | |
| Gas lift support cycle rating | 10000 cycles | |
| Recommended mattress thickness range | 280 mm | |
| Storage compartment usable volume | 0.9 m³ | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Headboard upholstery | Smooth matte grey faux leather | |
|---|---|---|
| Headboard padding | 35kg/m³ high-resilience polyurethane foam | |
| Internal bed frame | 18mm thick particleboard frame | |
| Mattress support slats | 12mm thick curved solid birch slats | |
| Lift mechanism | 1.2mm thick cold-rolled steel gas lift struts | |
| Support legs | 1.2mm thick powder-coated black metal legs | |
| Storage compartment liner | Non-woven fabric lining | |
| Pull handle | Brushed nickel finished recessed metal pull | |
| Side panel upholstery | Matching grey faux leather over padded frame | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Under-bed storage access | Gas-lift assisted hydraulic raise of entire slat platform | |
|---|---|---|
| Headboard back support | Tufted dual-pillow headboard provides cushioned back support for sitting upright | |
| Mattress ventilation | Gaps between curved wooden slats allow continuous air circulation under mattress | |
| Noise damping structure | Slat rubber end caps reduce friction noise between slats and frame | |
| Mattress retention | Raised side rails prevent mattress sliding when lifting storage platform | |
| Soft-close storage return | Dampened gas struts prevent slamming when lowering the storage platform | |
| Assembly structure | Knock-down frame assembly with pre-drilled hardware holes | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Master bedroom application | Suitable for residential master bedrooms 20㎡ for two adult occupants | |
|---|---|---|
| Small apartment storage use | Ideal for compact urban apartments to store seasonal bedding and luggage | |
| Matching furniture set | Coordinates with grey tone bedside tables, dressers and area rugs for cohesive modern interior | |
| User suitability | Recommended for adults up to 150kg per occupant for long term domestic use | |
| Style compatibility | Works with minimalist, modern light luxury and industrial interior design styles |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Furniture safety strength | EN 1725:1998 | |
|---|---|---|
| Upholstery flame resistance | EN 1021:2014 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission | GB 18584 | |
|---|---|---|
| Upholstery fabric safety | GB 20400 | |
| Structural stability | GB/T 3324 |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission: GB 18584; 2. Upholstery fabric safety: GB 20400; 3. Structural stability: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
