PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1970 × 2160 × 1275 mm
Headboard height	1275 mm
Footboard height	560 mm
Mattress support surface width	1800 mm
Mattress support surface length	2000 mm
Under-bed clearance	135 mm
Recommended mattress thickness	381 mm
Side rail width	200 mm
Vertical channel panel width	150 mm
Support leg height	135 mm
Nailhead trim spacing	15 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	454 kg
Slat static load capacity per slat	30 kg
Net weight	68 kg
Center support leg count	3
Noise reduction performance	EVA anti-slip strips between slats and frame
Mattress ventilation rate	30% open slat area
Durability cycle rating for frame joints	10000 use cycles
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard/footboard upholstery	Gray matte woven polyester fabric
Panel padding	30mm thick 35kg/m³ high-density polyurethane foam
Inner frame structure	1.2mm thick rectangular steel tube frame
Support slats	18mm thick LVL solid wood slats, Velcro-fixed to rails
Support legs	50mm diameter black powder-coated metal legs
Decorative nailhead trim	Gold electroplated iron studs, 8mm head diameter
Headboard top accent	Gold-finished stainless steel V-shaped decorative inlay
Connectors and hardware	Zinc-plated steel bolts and barrel nuts
Anti-noise padding	2mm thick EVA foam strips
Side rail panels	Plywood substrate wrapped in fabric and foam
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Wooden slat platform, no box spring required for mattress use
Mattress retention	25mm raised lip on all four sides of support frame
Anti-squeak design	EVA foam gaskets at all metal-to-wood and wood-to-wood contact points
Under-bed access	135mm floor clearance supports robot vacuum cleaning and low-profile storage
Knockdown assembly	Bolts connect headboard, footboard and side rails without specialized tools
Adjustable foot pads	10mm height adjustment on each support leg
Seam construction	8 stitches per inch along all fabric panel edges
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom use	Suitable for 18sqm master bedrooms as a luxury statement sleeping piece
User compatibility	Designed for two adult users in residential settings
Style matching	Pairs with light luxury, modern classic and contemporary glam interior schemes
Matching furniture pairing	Compatible with 500mm wide upholstered nightstands with gold leg details
Recommended room placement	Position headboard against a solid wall with minimum 700mm side clearance
Flooring suitability	Safe for hardwood, tile and carpeted floors with floor-protecting leg pads
Low-allergy use case	Tight woven fabric and slat ventilation suitable for standard dust-sensitive households

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Applicable for domestic furniture safety requirements for beds and mattresses

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture for domestic use
GB 18584-2001	Applicable for limit of harmful substances in wooden furniture indoor use
GB/T 24821-2009	Applicable for general safety and performance requirements for domestic beds

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture for domestic use;
2. GB 18584-2001: Applicable for limit of harmful substances in wooden furniture indoor use;
3. GB/T 24821-2009: Applicable for general safety and performance requirements for domestic beds;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-CH-V-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-CH-V-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-CH-V-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

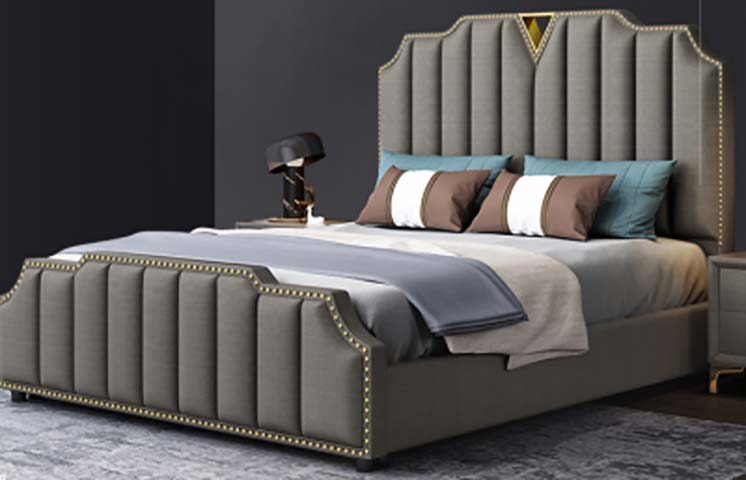

This unbranded UPB-CH-V-1800 upholstered platform bed features a refined light luxury silhouette anchored by a tall arched headboard accented with a gold-finished stainless steel V-shaped inlay at its upper curve. Channel-tufted upholstered panels run across the headboard and matching footboard, edged with polished gold electroplated iron nailhead trim for a tailored, upscale finish. The design maintains a streamlined profile, with a 1275mm tall headboard, 560mm tall footboard, and 200mm wide side rails, with overall dimensions measuring 1970 x 2160 x 1275 mm.
The bed is built with a 1.2mm thick rectangular steel tube inner frame for structural stability, paired with 18mm thick LVL solid wood slats fixed to side rails via Velcro fasteners, supported by three center support legs and 50mm diameter black powder-coated metal legs. All headboard and footboard panels are wrapped in gray matte woven polyester fabric, padded with 30mm thick, 35kg/m³ high-density polyurethane foam. Connections use zinc-plated steel bolts and barrel nuts, with 2mm thick EVA foam gaskets placed at all metal-to-wood and wood-to-wood contact points to eliminate squeaks, while EVA anti-slip strips between slats and the frame further reduce operational noise. Slats create 30% open slat area for consistent mattress ventilation, with all fabric seams finished with 8 stitches per inch for long-term wear resistance, and frame joints rated for 10000 use cycles.
The platform support system does not require a box spring, with a 25mm raised lip on all four sides of the support frame to hold mattresses securely and prevent shifting; the design supports mattresses up to 381mm thick for an 1800mm wide, 2000mm long sleep surface, with a total static weight capacity of 454 kg and 30 kg static load capacity per individual slat. The 135mm under-bed clearance accommodates robot vacuum access and low-profile storage, while each support leg includes 10mm height-adjustable foot pads that protect flooring surfaces and compensate for minor uneven subfloors. The bed ships in knockdown form, requiring no specialized tools for assembly with an 40 minute build time, and includes built-in floor protection safe for hardwood, tile, and carpeted floors.
This model is designed as a statement sleeping piece for two adult users, ideal for 18sqm master bedrooms, pairing seamlessly with light luxury, modern classic, and contemporary glam interior schemes. It coordinates well with 500mm wide upholstered nightstands featuring gold leg details, and should be positioned with the headboard against a solid wall, leaving a minimum 700mm side clearance for easy movement around the frame. Procurement teams should note the product ships as one set across two cartons, with a packaged gross weight of 130 kg per set and total packaging volume of 0.9 m³ per set, with a net product weight of 68 kg for in-home placement planning.

Gray Upholstered Platform Bed with Channel Tufting, Gold Nailhead Trim and Arched V-Accent Headboard Specifications
