PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2060 × 2190 × 1170 mm
Mattress support area	1830 x 2030 mm
Headboard height above platform	830 mm
Floor to platform top height	340 mm
Under-bed clearance	100 mm
Upholstered side rail thickness	64 mm
Headboard padding thickness	89 mm
Side rail height above platform	24 mm
Support leg diameter at base	18 mm
Center support beam count	3 units
Slat quantity	28 pieces
Slat spacing	100 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	363 kg
Recommended mattress thickness	360 mm
Product net weight (king size)	60 kg
Slat static load per slat	25 kg
Adjustable foot glide travel	10 mm
Residential warranty period	5 years
Available color finish count	5 options
Upholstery abrasion resistance	30000 rubs
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame core	18mm multi-plywood frame
Slat support system	12mm laminated birch wood slats
Support legs	Chrome-plated tapered steel legs with rubber glides
Headboard padding	35kg/m³ high-density polyurethane foam + 200g thermobonded fiber
Frame rail padding	28kg/m³ medium-density polyurethane foam
Upholstery cover	1.2mm matte faux leather, light taupe finish
Connection hardware	Zinc-plated rust-proof steel bolts and brackets
Under-padding layer	100g cotton interliner under upholstery
Seam stitch pitch	3 stitches per cm
Floor glides	Nylon scratch-proof rubber foot caps
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Slatted platform base, no box spring required
Leveling adjustment	Threaded adjustable glides on each leg
Noise dampening	Non-slip EVA tape between slats and frame
Mattress retention	Raised curved side rails around platform edge
Assembly type	Knock-down flat pack assembly
Headboard attachment	Bolt-on fixed headboard to side rail brackets
Cleaning access	Spot-cleanable upholstery surface
Center support	Three vertical metal support legs under center beam
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Residential master bedrooms
Target user group	Adult residential users
Recommended configuration	Pair with low-profile 300 mm thick mattress
Matching furniture recommendation	Pair with low-profile taupe/wood nightstands
Space requirement	Minimum 3000 x 3300 mm bedroom footprint
Style compatibility	Works with contemporary, minimalist, warm neutral interior palettes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2005	Domestic furniture - Seating - Determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame construction
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood furniture
GB/T 1952.2-2011	Spring soft mattress and bed furniture safety performance requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame construction;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood furniture;
3. GB/T 1952.2-2011: Spring soft mattress and bed furniture safety performance requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-LT-CH-1800Q

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-LT-CH-1800Q

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-LT-CH-1800QOpen Export Tool

Quick Actions

Post an RFQ

Product Description

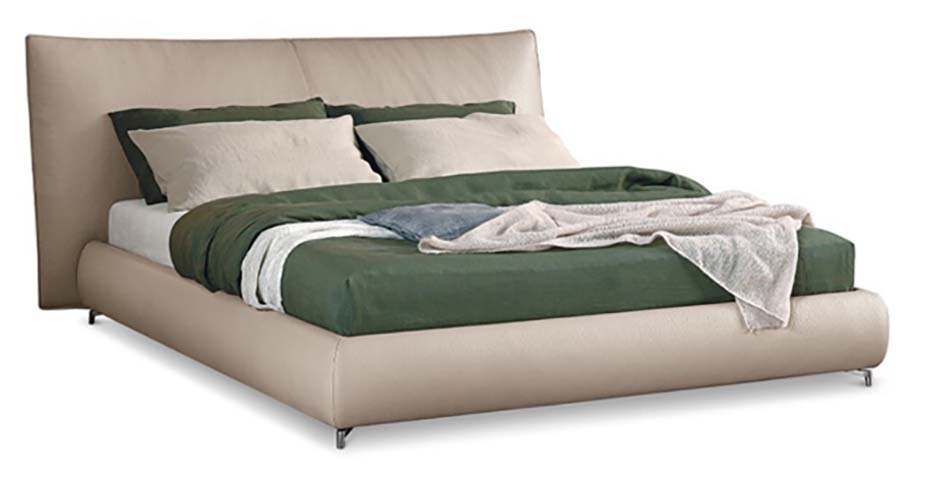

The Light Taupe Curved Upholstered Platform Bed, model UPB-LT-CH-1800Q, is an unbranded low-profile upholstered platform bed designed without a footboard to suit minimalist interior schemes. Its curved silhouette features a smooth, upholstered form defined by a gently arched headboard and continuous raised curved side rails that wrap the mattress platform, creating a soft, cohesive visual flow free of sharp edges. The light taupe matte faux leather upholstery delivers a warm neutral finish that aligns with contemporary and warm neutral interior palettes. The bed’s structure centers on an 18mm multi-plywood frame with 12mm laminated birch wood slats forming the support base. Upholstered surfaces are padded with targeted foam layers: 89mm thick headboard padding uses 35kg/m³ high-density polyurethane foam topped with 200g thermobonded fiber and a 100g cotton interliner, while side rails carry 28kg/m³ medium-density polyurethane foam under the 1.2mm matte faux leather cover. It rests on chrome-plated tapered steel legs fitted with rubber glides, joined by zinc-plated rust-proof steel bolts and brackets, with a consistent 3 stitches per cm seam pitch for durable finishing. The slatted platform base eliminates the need for a box spring; non-slip EVA tape between slats and frame reduces operational noise, while raised curved side rails hold the mattress securely in place. Each leg includes threaded adjustable glides for leveling, and the spot-cleanable upholstery simplifies routine upkeep. It ships as knock-down flat pack units, with 40 minutes of assembly time per set, and is covered by a 5-year residential warranty. The product supports 363 kg total static weight, with individual slats rated for 25 kg static load. This bed is designed for residential master bedrooms, targeted to adult residential users, and requires a minimum 3000 x 3300 mm bedroom footprint. It pairs best with a 360 mm thick mattress, and complements low-profile taupe or wood nightstands for coordinated styling. It is offered in 5 finish options to match varied design schemes. For procurement, note the product ships in 2 cartons per set with 0.9 m³ total packaging volume and 130 kg packaged gross weight, and confirm finish selection before order placement to align with project design requirements.

Light Taupe Curved Upholstered Platform Bed Specifications
