PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1680 × 2230 × 1160 mm
Headboard height	1160 mm
Floor to slat support height	330 mm
Leg height	152 mm
Footboard storage compartment internal dimensions	1120 x 292 x 292 mm
Recommended maximum mattress thickness	305 mm
Under-bed floor clearance	152 mm
Side rail height above slats	150 mm
Headboard wing projection from wall	80 mm
Nightstand matching dimensions (companion piece)	500 x 400 x 550 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity (mattress + sleepers)	454 kg
Footboard storage drawer static load capacity	45 kg
Number of included support slats	15
Slat spacing	70 mm
Center support beam count	1
Net product weight	68 kg
Recommended number of users	2
Upholstery abrasion resistance	30000 double rubs
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer headboard/side rail/footboard upholstery	Dark gray polyester velvet fabric
Headboard channel padding	Off-white polyester velvet fabric over 50mm high-density foam
Internal bed frame	18mm thick engineered plywood with corner blocking
Support legs	1.5mm thick gold-tone plated tapered steel
Slat support system	12mm thick bent plywood slats with EVA anti-slip pads
Headboard accent trim	8mm wide gold-tone metal trim along wing edges
Storage drawer hardware	Black powder-coated recessed pull handle + metal drawer glides
Center support structure	40mm square powder-coated steel tube beam
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Footboard storage drawer operation	Pull-out drawer accessible via recessed footboard handle, extends fully for linen storage
Mattress support system	Fixed slat platform eliminates need for separate box spring
Mattress retention design	Raised side rails and footboard lip prevent lateral mattress movement
Headboard function	Padded vertical channel tufted surface provides back support for seated reading/TV viewing
Assembly requirement	Knock-down assembly with included hex key and hardware, no special tools needed
Noise reduction design	EVA anti-slip pads on slats eliminate metal-on-wood squeaking during movement
Floor protection function	Plastic glides on leg bottoms prevent hardwood and carpet scuffing
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Serves as primary sleep surface for adult users, paired with matching nightstands
Transitional/modern luxury interiors	Two-tone upholstery and gold accents coordinate with warm neutral and metallic decor
Guest bedroom upgrades	Storage footboard provides extra linen storage for infrequently used guest spaces
Boutique hotel guest rooms	Durable velvet upholstery and reinforced frame meet medium-duty hospitality use
Small urban apartments	Built-in footboard storage eliminates need for separate under-bed storage bins
Recommended mattress pairing	300 mm thick memory foam or hybrid mattress for optimal height alignment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2005	Domestic furniture - Seating - Determination of stability, applicable to bed entry/exit stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structural safety
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits
GB/T 1952.2-2011	Technical requirements for spring soft mattresses, applicable to mattress support compatibility

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structural safety;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits;
3. GB/T 1952.2-2011: Technical requirements for spring soft mattresses, applicable to mattress support compatibility;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-Q-CT2T-GL-ST

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-Q-CT2T-GL-ST

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-Q-CT2T-GL-STOpen Export Tool

Quick Actions

Post an RFQ

Product Description

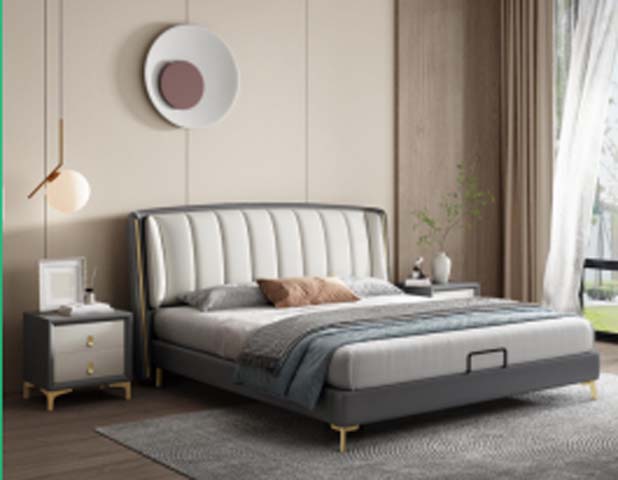

The Two-Tone Channel-Tufted Upholstered Platform Storage Bed with Gold Legs is a modern luxury sleep solution crafted to balance refined aesthetic appeal, functional storage, and reliable everyday use. Its silhouette is defined by a tall, vertically channel-tufted headboard finished in a two-tone velvet palette, with a dark gray polyester velvet covering the headboard outer panels, side rails, and footboard, paired with soft off-white polyester velvet for the padded channel sections. Slim tapered gold-tone steel legs and matching narrow gold-tone trim along the headboard wing edges add a polished metallic accent, elevating the piece’s upscale, contemporary profile. A full pull-out storage drawer is integrated seamlessly into the footboard, keeping the frame’s clean lines unbroken while adding discrete utility. The bed is built on a sturdy engineered wood frame reinforced with corner blocking, supported by a single 40mm square powder-coated steel center beam, 15 fixed bent plywood slats fitted with EVA anti-slip pads, and tapered gold-tone plated steel legs. The fixed slat platform removes the need for a separate box spring, while raised side rails and a footboard lip hold the mattress firmly in place to prevent lateral shifting. The padded channel-tufted headboard offers comfortable back support for seated activities like reading or watching television, and the fully extending footboard drawer provides dedicated space for linen storage. EVA pads on slats reduce friction-related squeaking during use, and plastic glides fitted to leg bases protect both hard hardwood and soft carpeted flooring from scuffs and abrasion. The bed ships as a knock-down kit with all required hardware and a hex key included, requiring no specialized tools for assembly. This design fits seamlessly across both residential and light commercial spaces, including residential master bedrooms as a primary sleep surface for two adults, upgraded guest bedrooms with extra linen storage, small urban apartments where discrete built-in storage reduces the need for additional furniture, transitional or modern luxury interiors coordinated with warm neutral and metallic decor palettes, and boutique hotel guest rooms suited for medium-duty hospitality use. When procuring this model, buyers should note the model identifier UPB-Q-CT2T-GL-ST for accurate ordering, plan for delivery across two cartons, account for the recommended maximum mattress thickness to ensure proper height alignment, and confirm the space can accommodate the queen-size footprint before purchase. The design pairs best with memory foam or hybrid mattresses to achieve optimal visual and functional alignment with the frame’s profile.

Two-Tone Channel-Tufted Upholstered Platform Storage Bed with Gold Legs Specifications
